This article is for those looking for a detailed and straightforward guide on installing OTRS using Docker Compose.

OTRS is a comprehensive service management suite encompassing an agent portal, an administrative dashboard, and a customer interface. Within the agent portal, teams handle and manage customer tickets and inquiries. This portal offers diverse methods to display customer-related data and other pertinent information.

💾 You can find the repository used in this guide on GitHub.

We’ll use Traefik as our reverse proxy. It’ll handle obtaining cryptographic certificates from Let’s Encrypt for your domain names and route requests to the corresponding services based on those domains.

❗ To obtain cryptographic certificates, you will need A-type records in the external DNS zone, which point to the IP address of your server where Traefik is installed. If you have created these records recently, you should wait before starting the installation of the services. Full replication of these records between DNS servers can take from a few minutes to 48 hours or even longer in rare cases.

In this guide, we will consider the case where you already have a server with Ubuntu Server 22.04 LTS installed on it.

You can find detailed information on how to install Ubuntu Server 22.04 LTS in my guide “Install Ubuntu Server 22.04 LTS”.

Docker Engine and Docker Compose must also be installed on the server.

You can learn how to install Docker Engine on Ubuntu Server by reading Install Docker Engine and Docker Compose on Ubuntu Server”.

In addition, OpenSSH must be installed on the server, and port 22 must be open in order to be able to connect to the server using the SSH protocol.

To install OpenSSH on the server you can use the command:

sudo apt install openssh-server

If you plan to connect to the server using the Windows operating system, you can use PuTTY or MobaXterm.

This guide covers connecting to the server using the terminal emulator iTerm2, installed on the macOS operating system.

💡 Please note, you will need to open the following TCP ports for access to the services:

  • TCP port 80 - to obtain a free cryptographic certificate through the Let’s Encrypt certification center.
  • TCP port 443 - to access the OTRS web interface.

We connect to the server on which OTRS is planned to be installed.

Now it is necessary to create networks for your services.

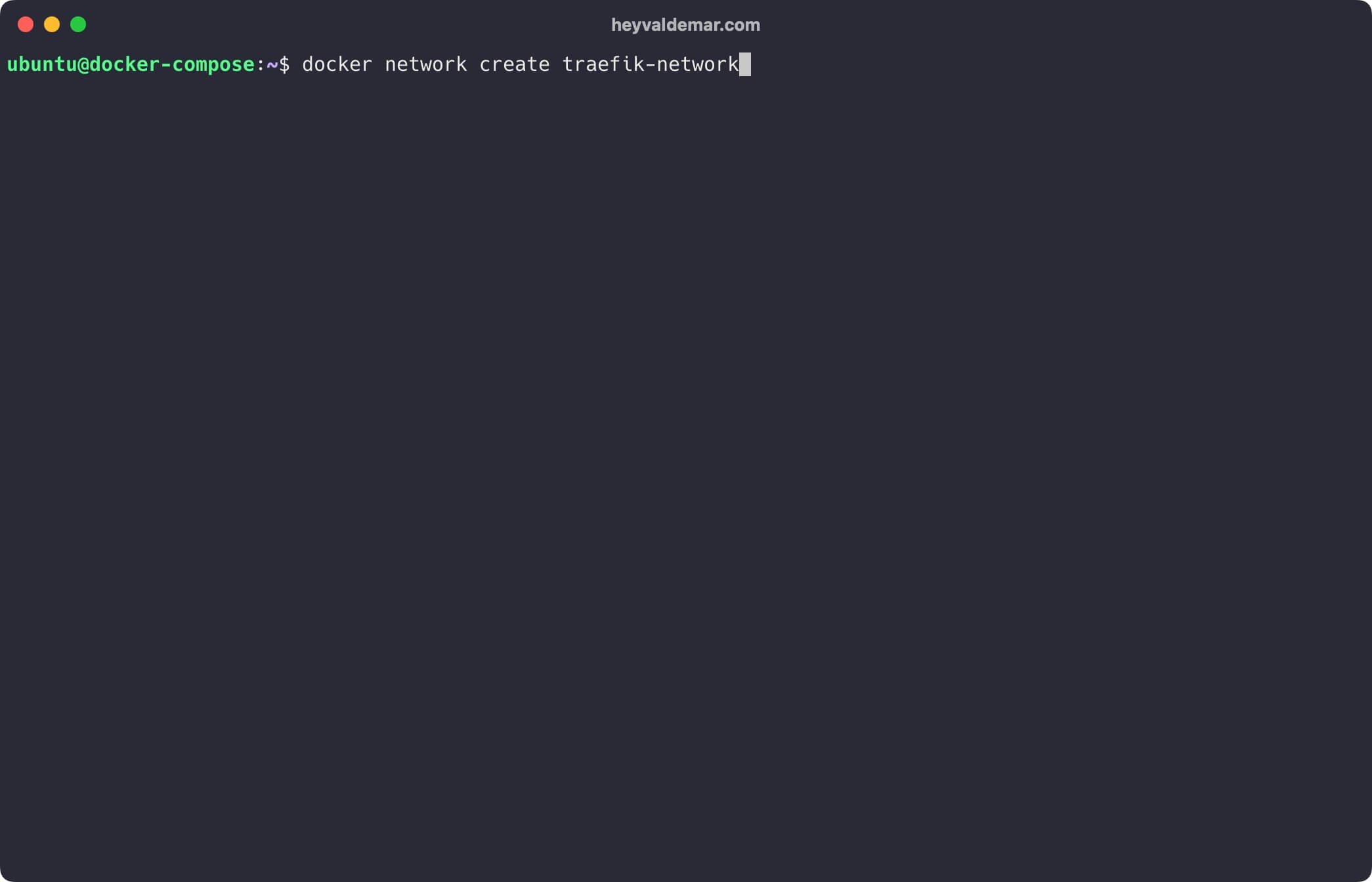

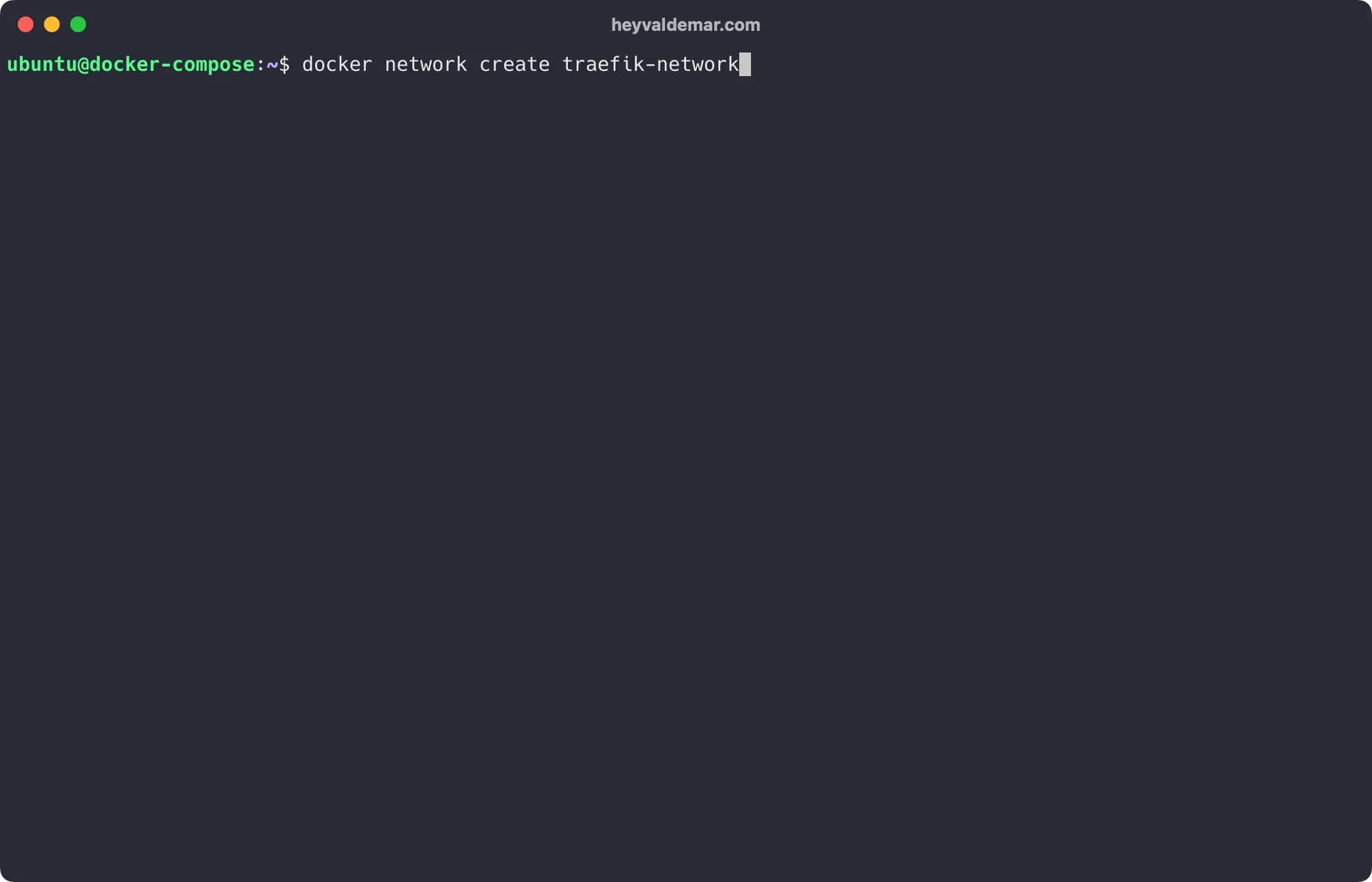

We create a network for Traefik using the command:

docker network create traefik-network

Install OTRS Using Docker Compose

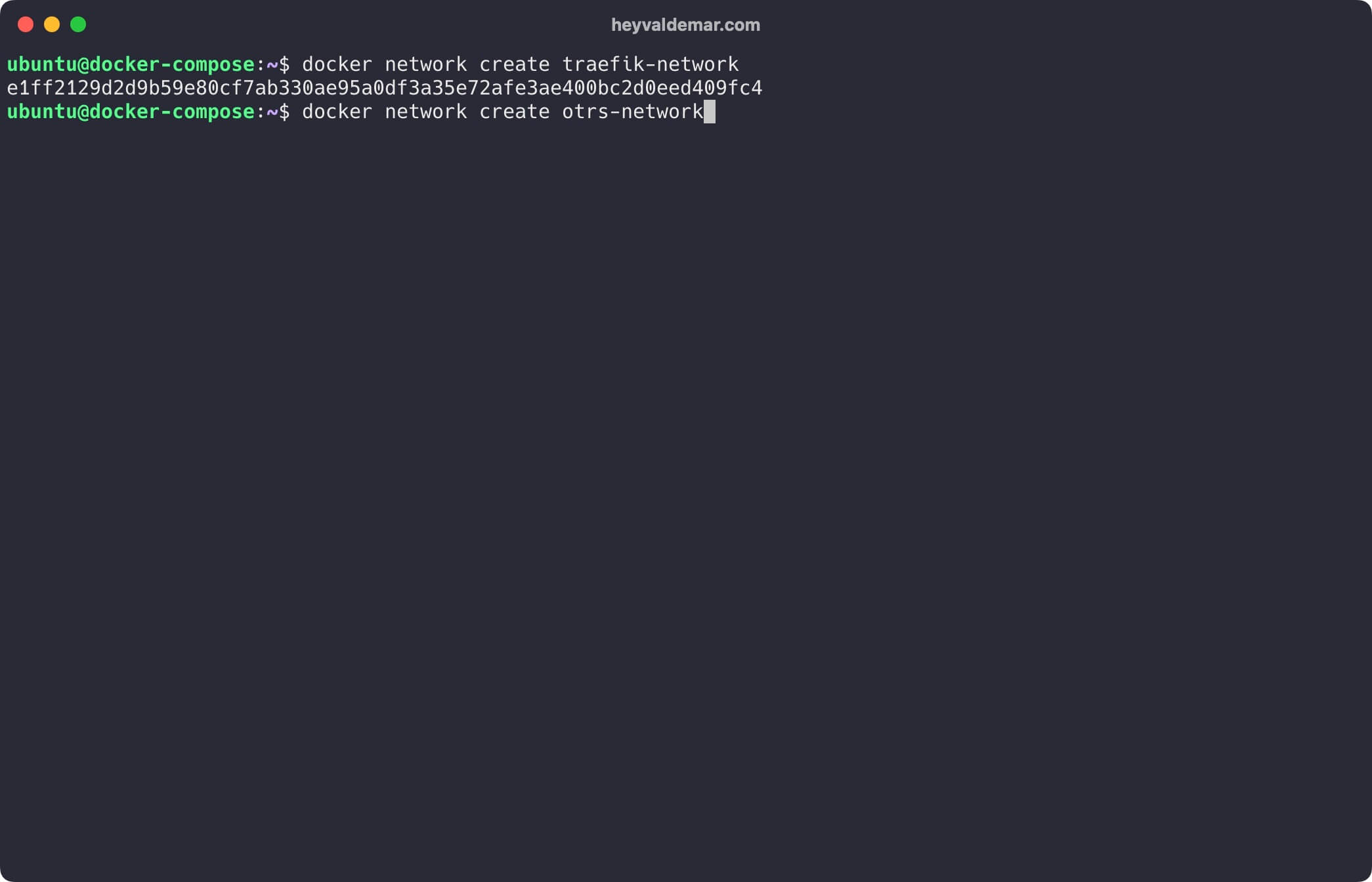

We create a network for OTRS using the command:

docker network create otrs-network

Install OTRS Using Docker Compose

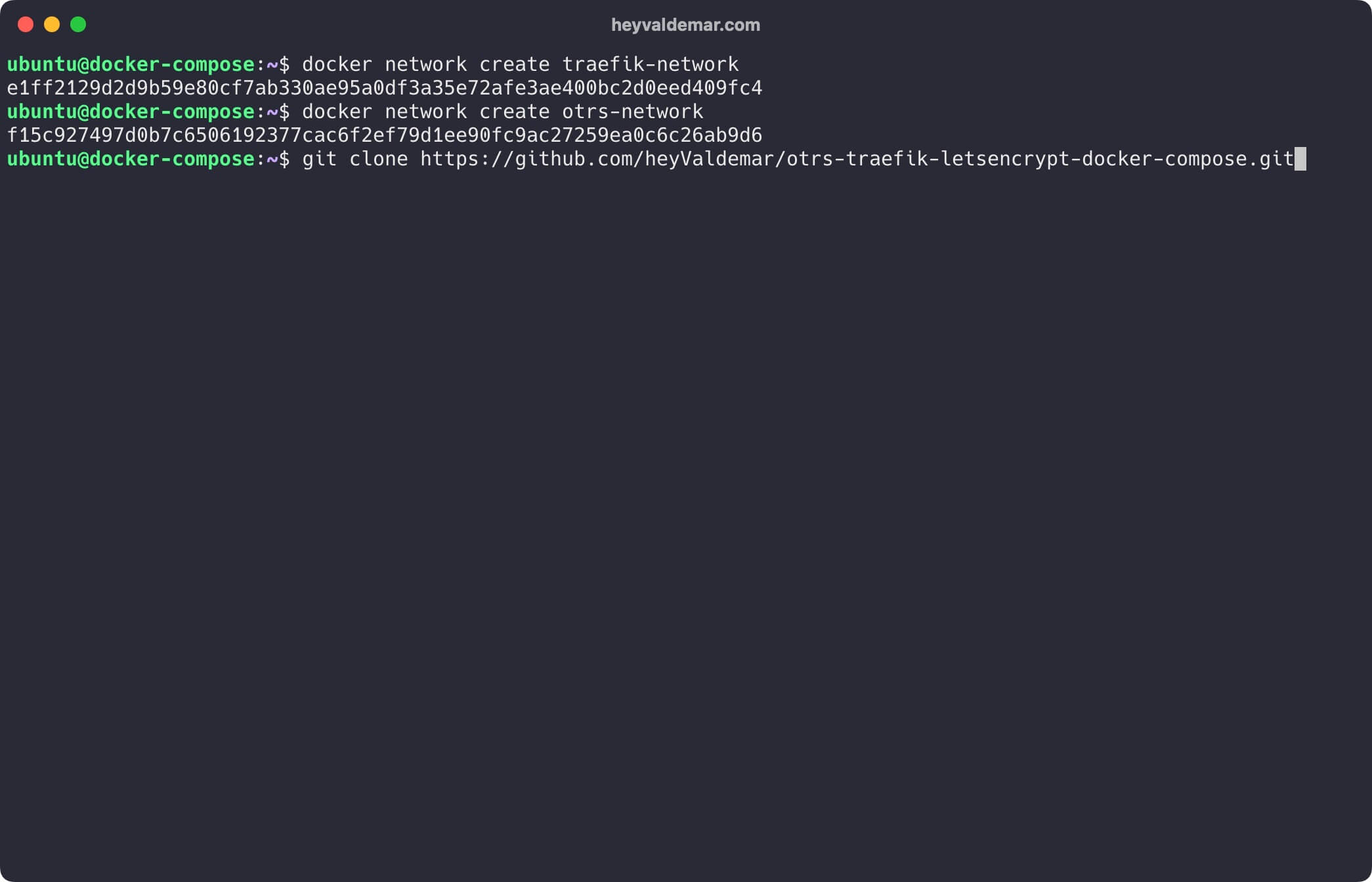

Next, you need to clone the repository that contains the configuration files, which include all the necessary conditions for OTRS to work.

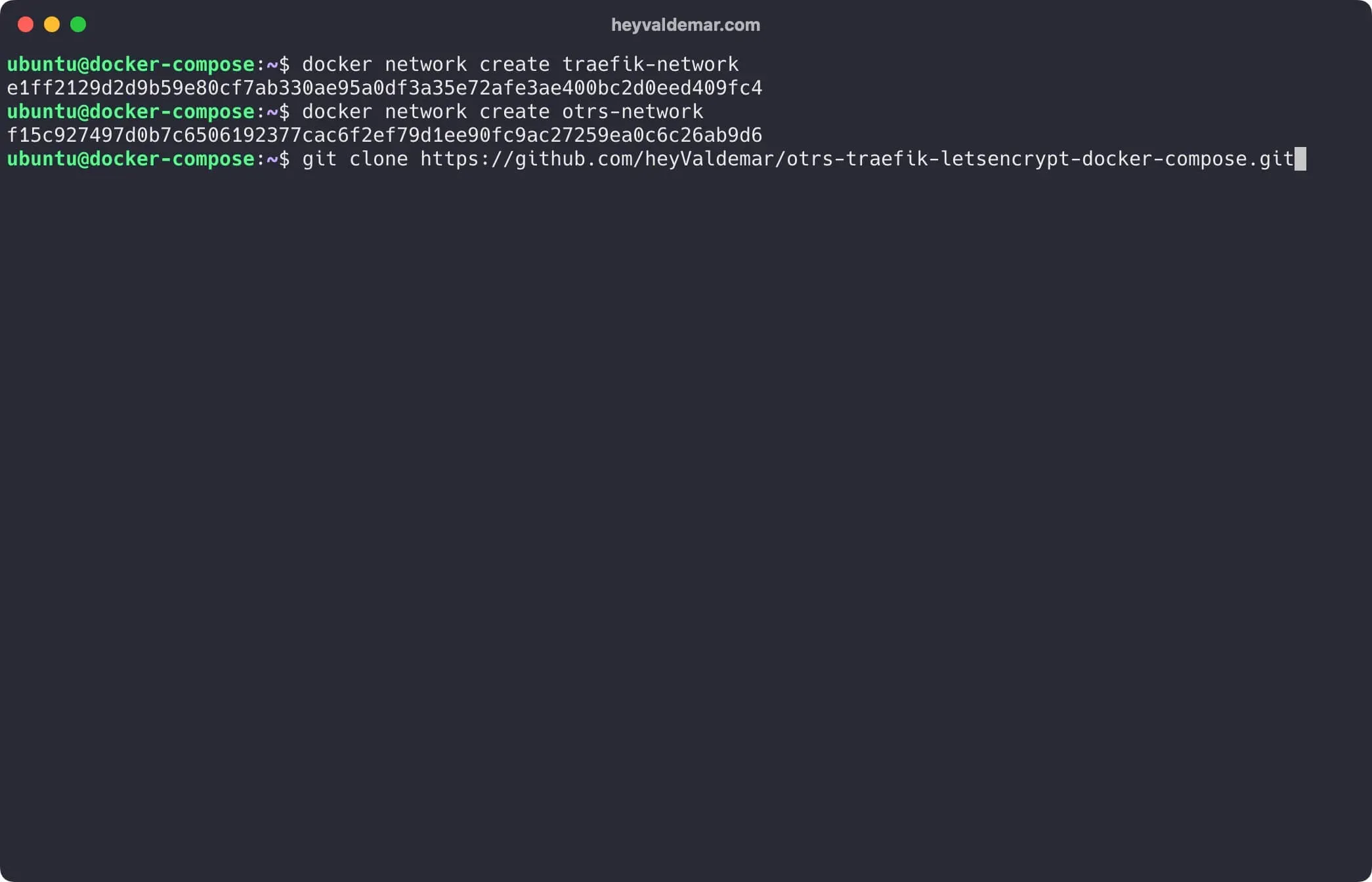

You can clone the repository using the command:

git clone https://github.com/heyValdemar/otrs-traefik-letsencrypt-docker-compose.git

Install OTRS Using Docker Compose

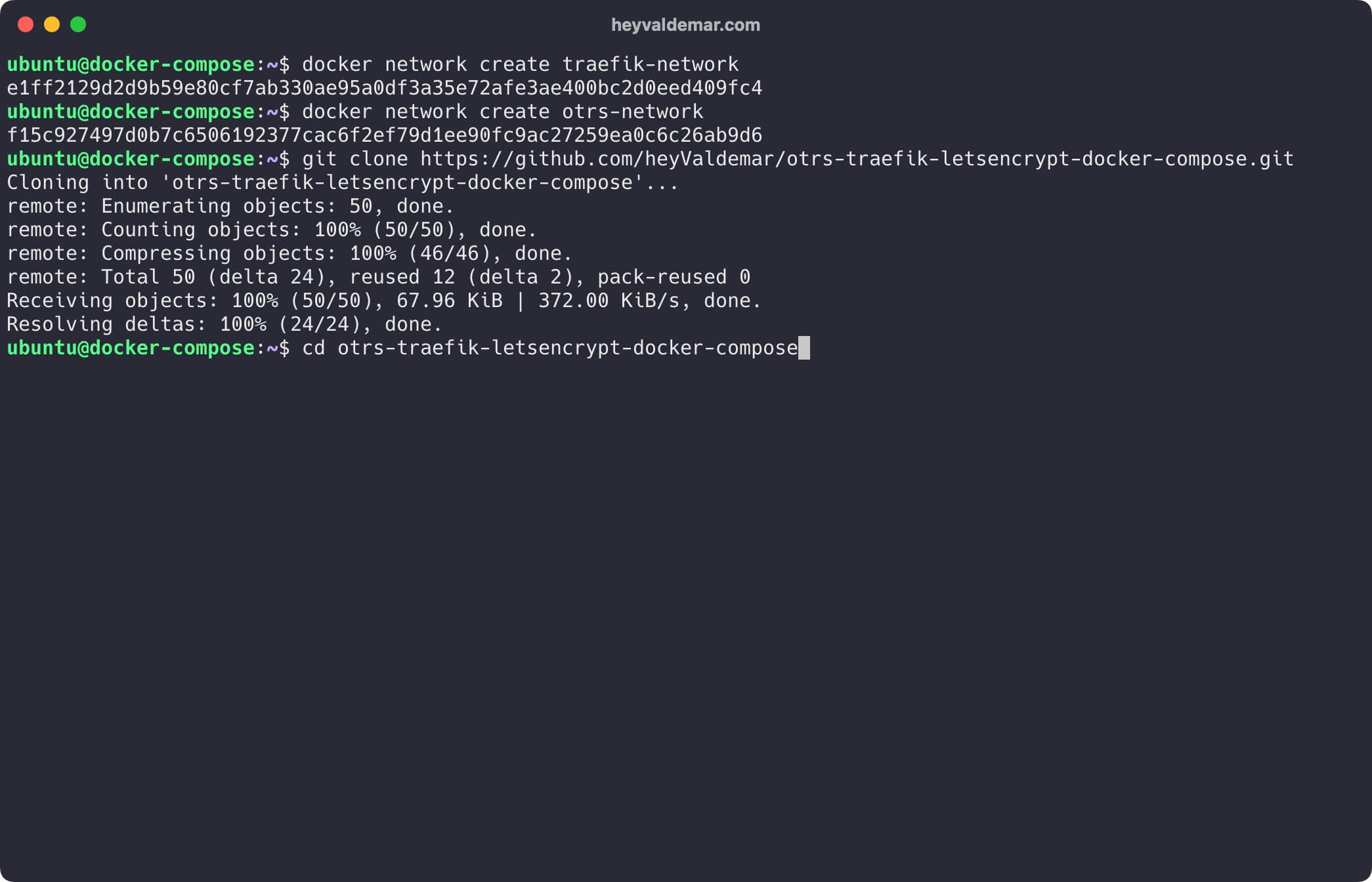

Navigate to the directory with the repository using the command:

cd otrs-traefik-letsencrypt-docker-compose

Install OTRS Using Docker Compose

Next, you need to change the variables in the .env file according to your requirements.

💡 Note that the .env file should be in the same directory as otrs-traefik-letsencrypt-docker-compose.yml.

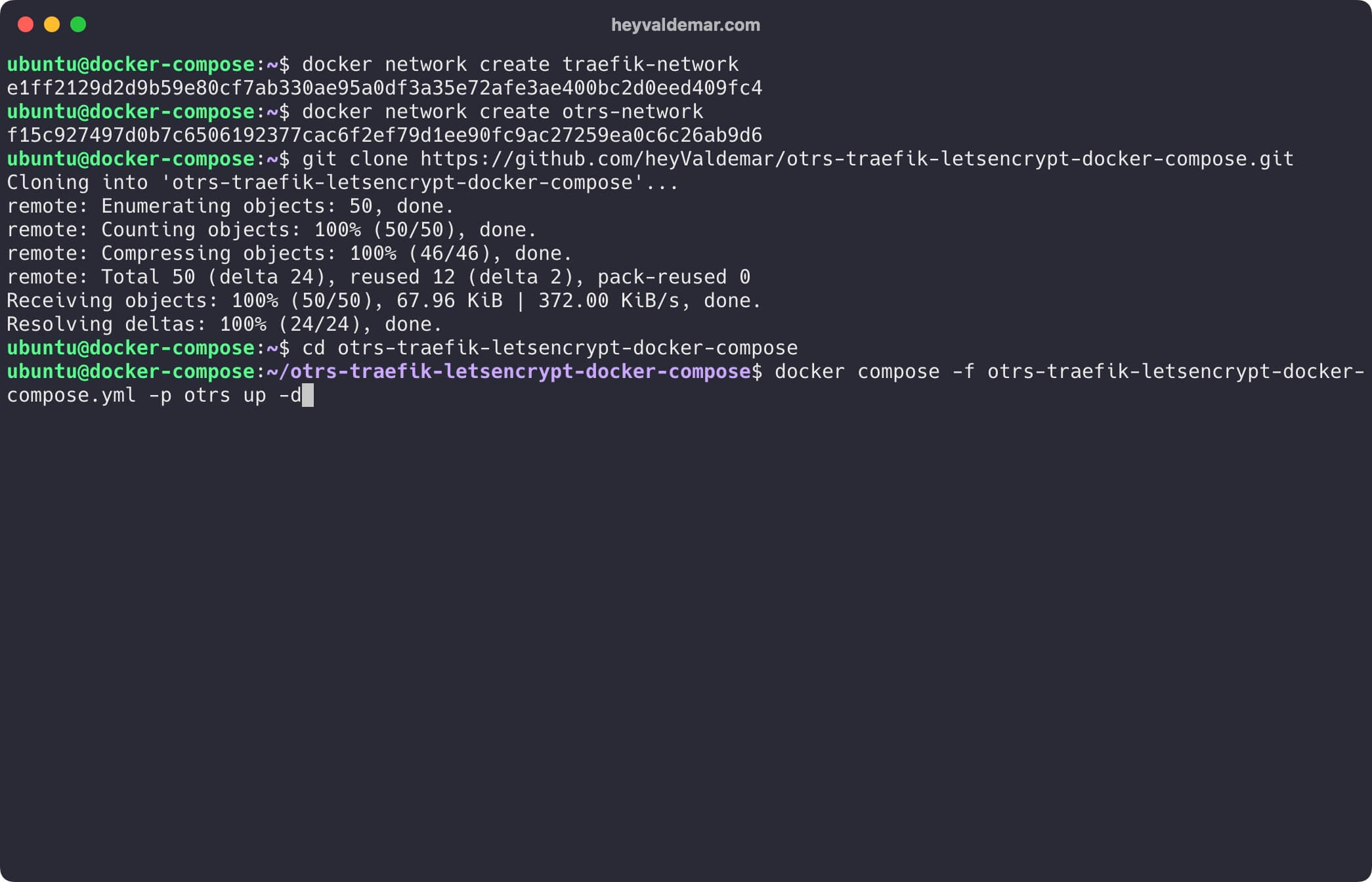

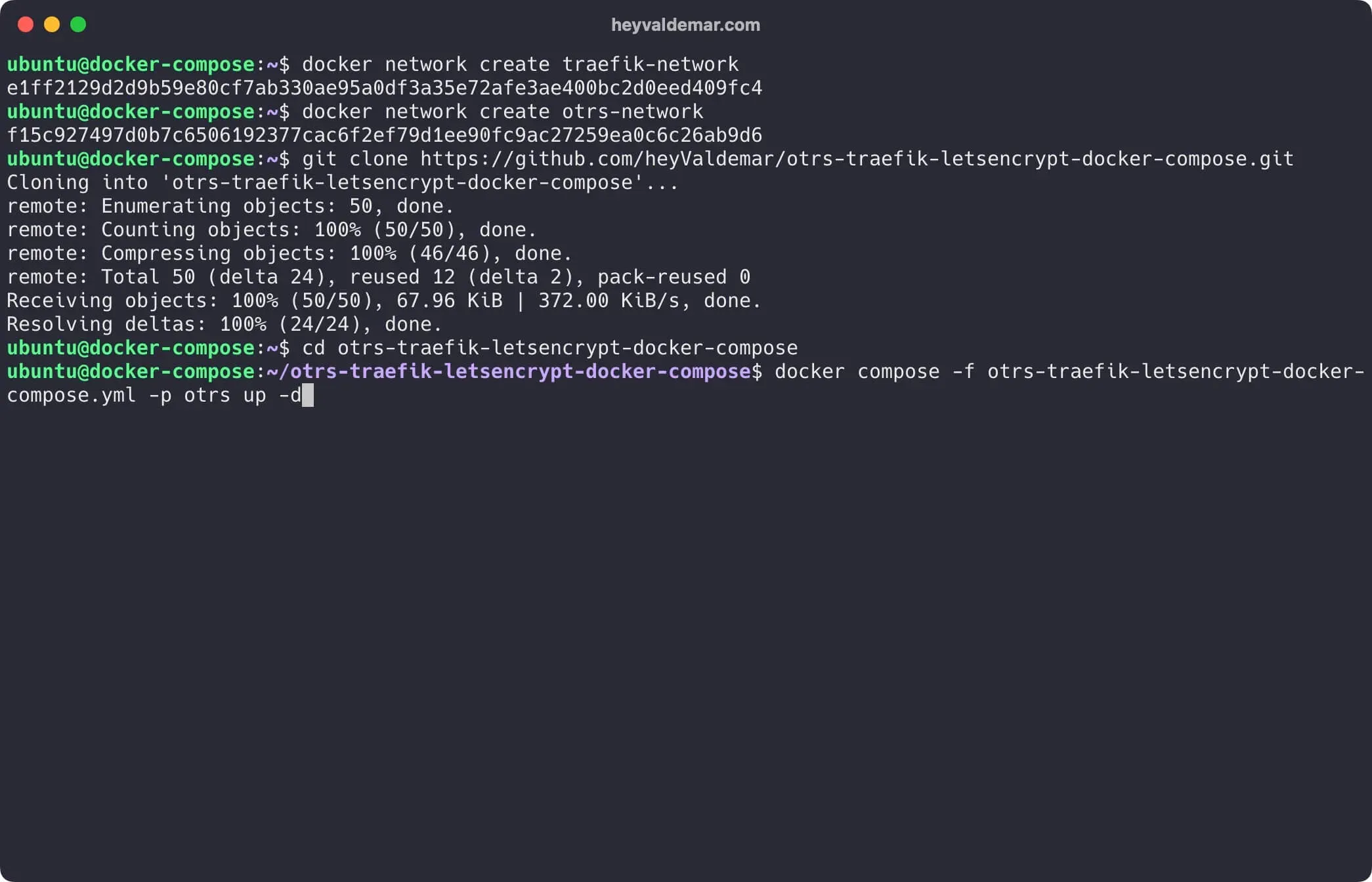

Now let’s start OTRS with the command:

docker compose -f otrs-traefik-letsencrypt-docker-compose.yml -p otrs up -d

Install OTRS Using Docker Compose

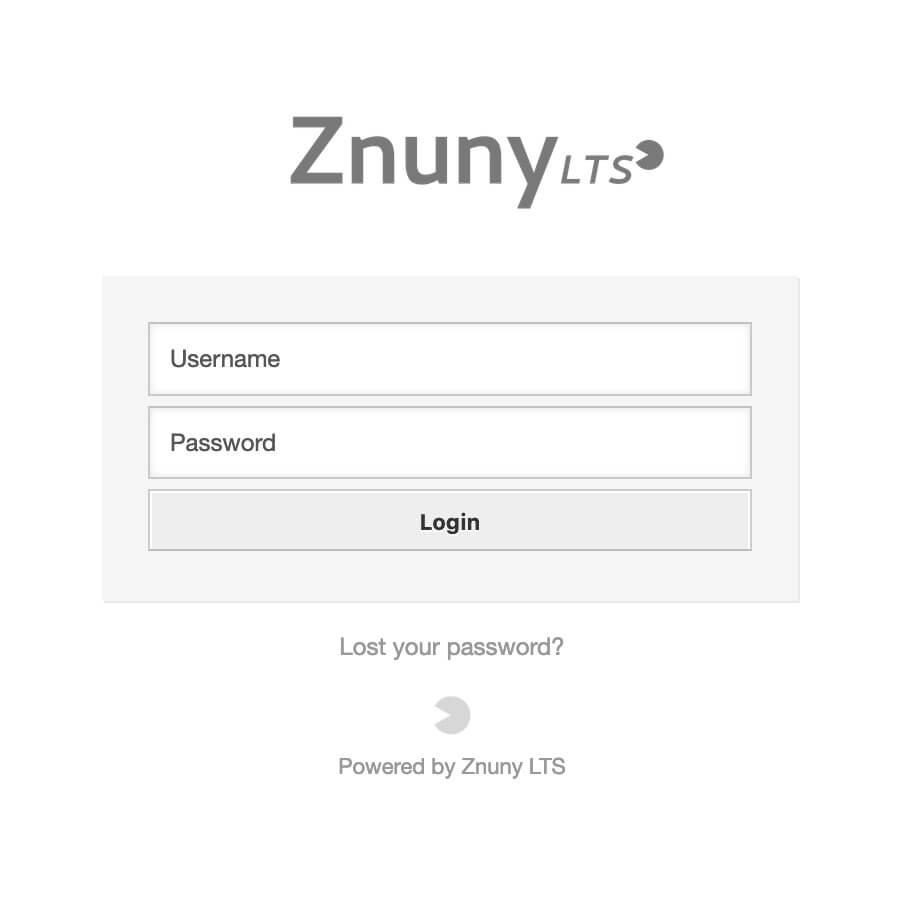

To access the OTRS management panel, go to https://otrs.heyvaldemar.net from your workstation, where otrs.heyvaldemar.net is the domain name of my service. Accordingly, you need to specify your domain name that points to the IP address of your server with the installed Traefik service, which will redirect the request to OTRS.

💡 Note that you need to specify the domain name of the service, previously defined in the .env file.

Use the following default credentials for the OTRS administrator account:

  • Username: root@localhost
  • Password: Enter the password that you previously set in the .env file

Click the “Login” button.

Install OTRS Using Docker Compose

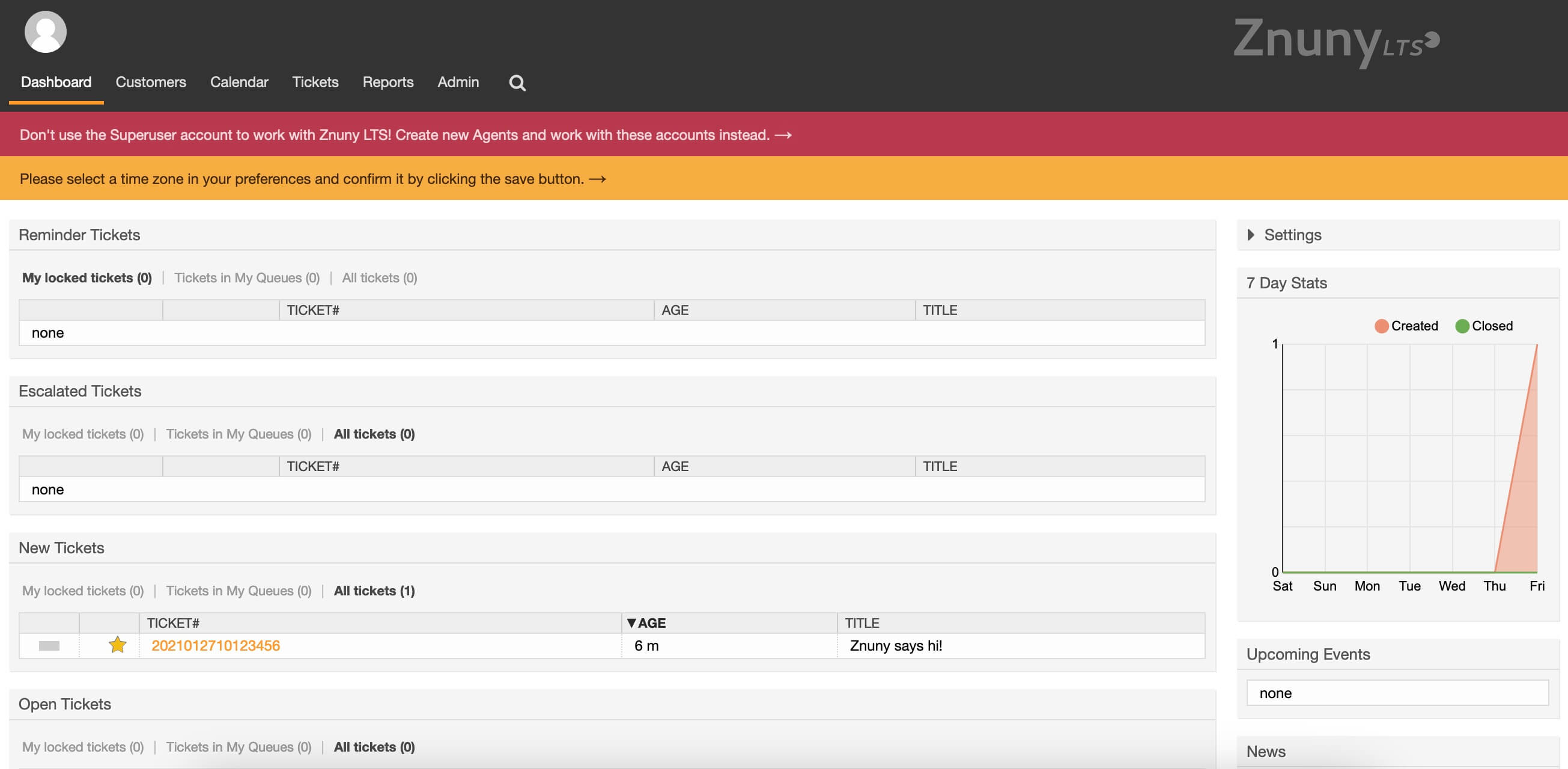

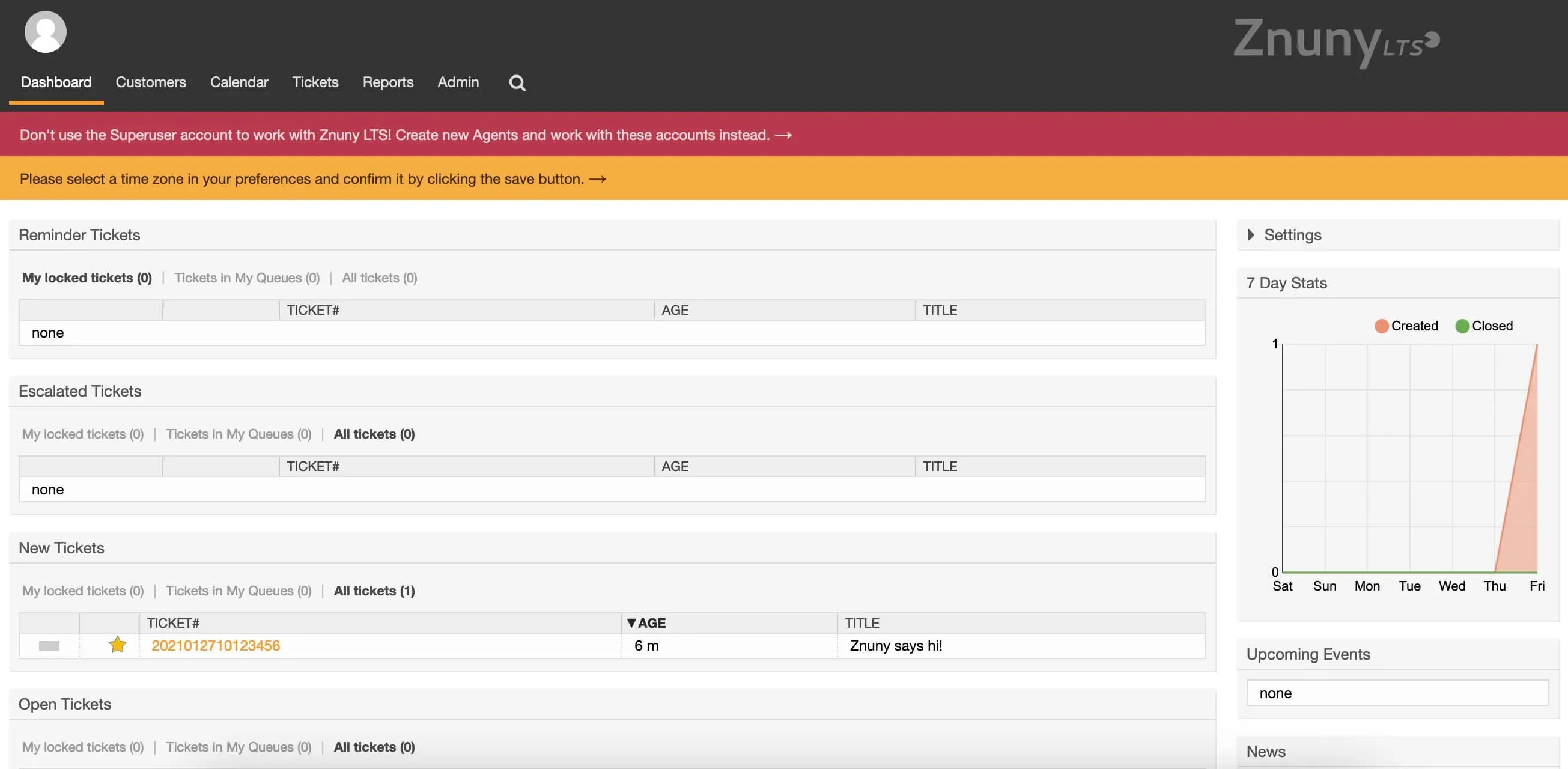

Welcome to the OTRS control panel.

Install OTRS Using Docker Compose

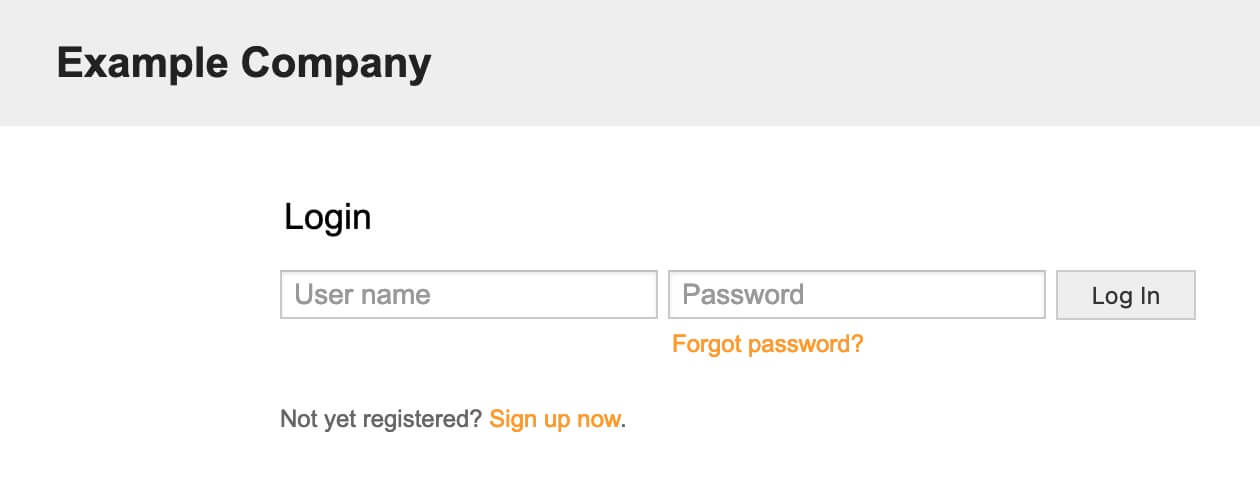

To access the OTRS client control panel from a workstation, go to https://otrs.heyvaldemar.net/otrs/customer.pl, where otrs.heyvaldemar.net is the domain name of my service. Accordingly, you need to specify your domain name that points to the IP address of your server with OTRS installed.

Install OTRS Using Docker Compose

To access the Traefik control panel, go to https://traefik.otrs.heyvaldemar.net from your workstation, where traefik.otrs.heyvaldemar.net is the domain name of my service. Accordingly, you need to specify your domain name that points to the IP address of your server with the installed Traefik.

💡 Note that you need to specify the domain name of the service, previously defined in the .env file.

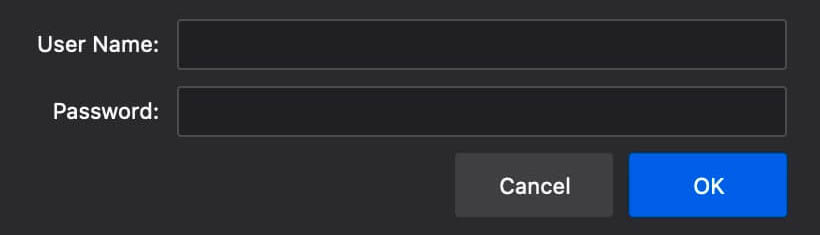

Enter the username and password previously set in the .env file, and click the “OK” button.

Install OTRS Using Docker Compose

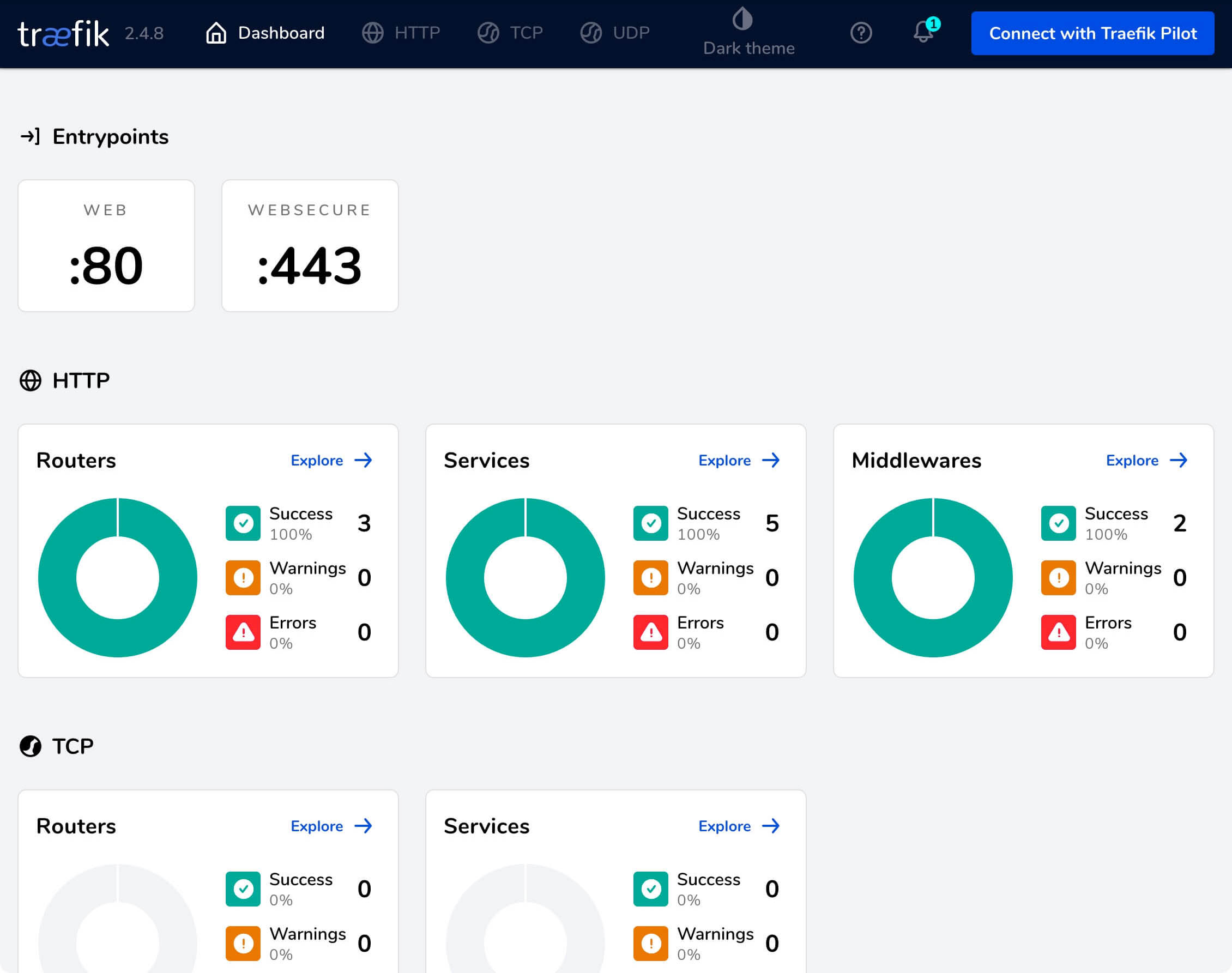

Welcome to the Traefik control panel.

Install OTRS Using Docker Compose
