This article is for those looking for a detailed and clear guide on how to install Puppet on Ubuntu Server.

Puppet is a cross-platform client-server application that allows you to centrally manage the configuration of operating systems and programs installed on multiple computers.

In this guide, we will consider the case when you already have a server with the Ubuntu Server 20.04 LTS operating system installed on it.

You can read more about how to install Ubuntu Server 20.04 LTS in my guide “Install Ubuntu Server 20.04 LTS”.

In addition, OpenSSH must be installed on the server, and port 22 must be open in order to be able to connect to the server using the SSH protocol.

To install OpenSSH on a server, you can use the command:

sudo apt install openssh-server

If you plan to connect to the server using the Windows operating system, you can use PuTTY, a free client for various remote access protocols, including SSH, Telnet, rlogin.

This guide describes how to connect to a server using the iTerm2 terminal emulator installed on the macOS operating system.

Please note that you will need to open the following TCP ports to access your server:

  • 8140 - for Puppet Agent to work.

We connect to the server on which you plan to install Puppet Server.

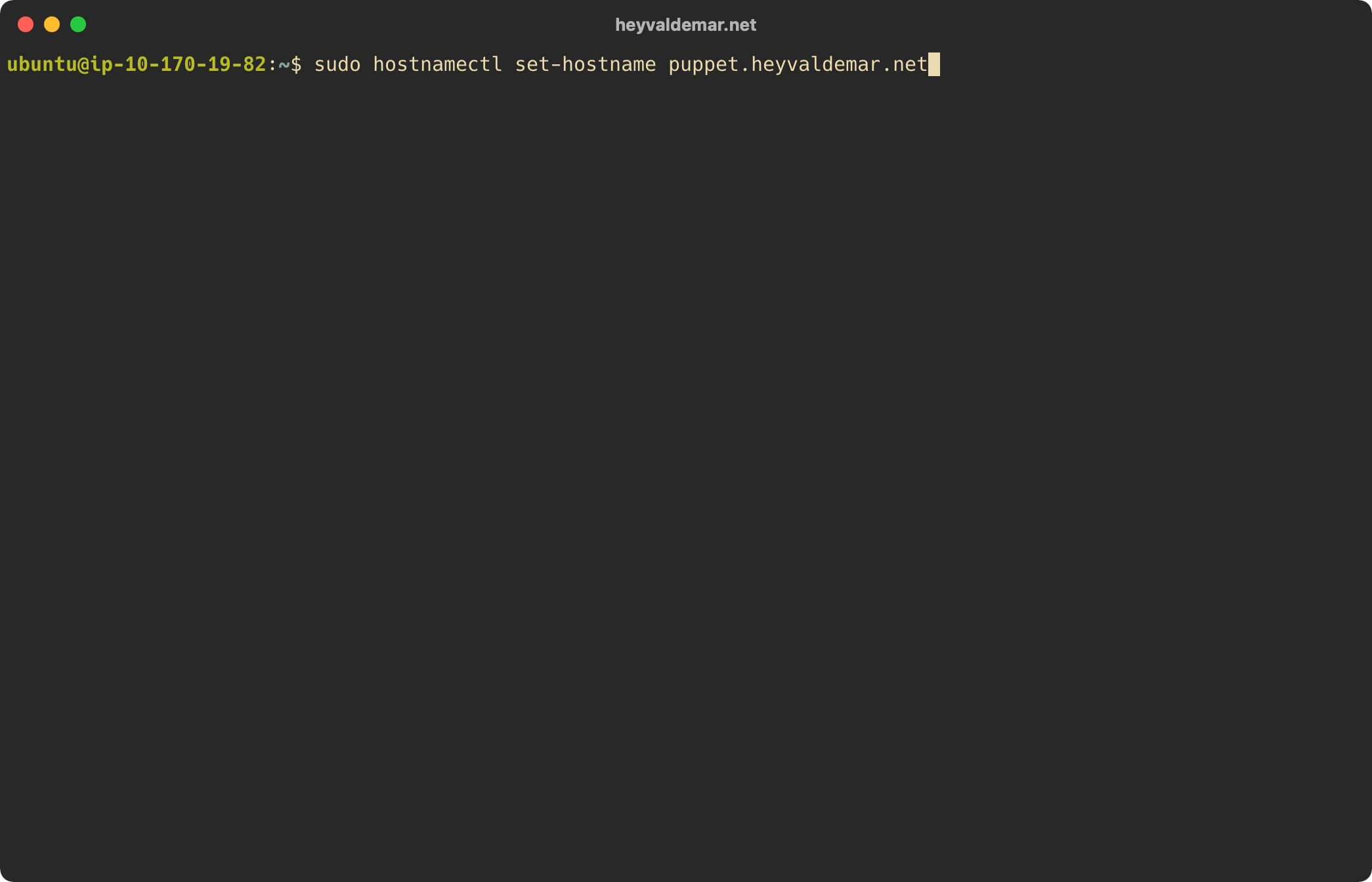

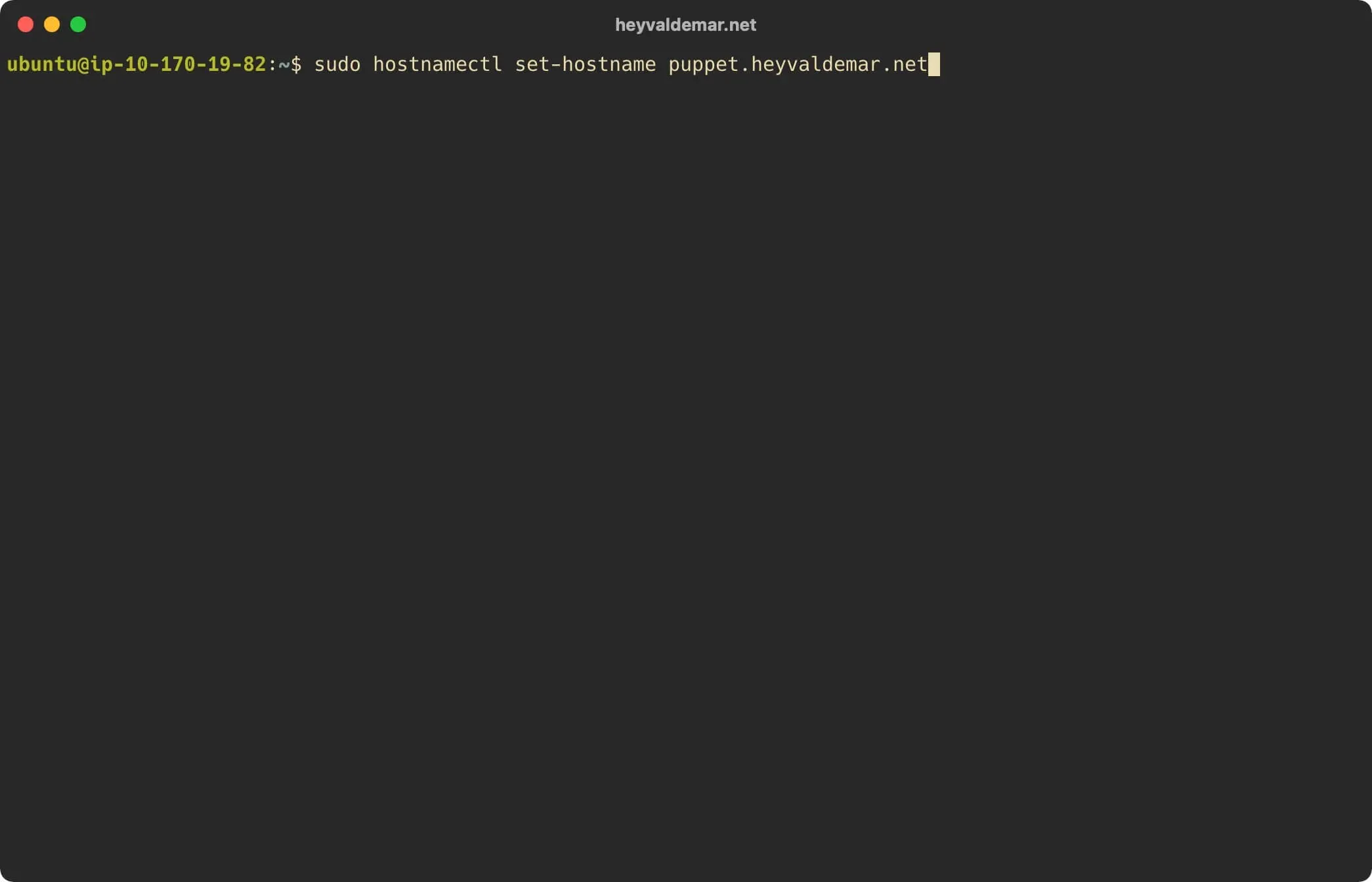

Let’s name the server using the command:

sudo hostnamectl set-hostname puppet.heyvaldemar.net

This tutorial uses “puppet.heyvaldemar.net” as the Puppet server name.

Install Puppet on Ubuntu Server

The server with the agent installed must resolve the name of the Puppet server and also the Puppet server must resolve the name of the client-server.

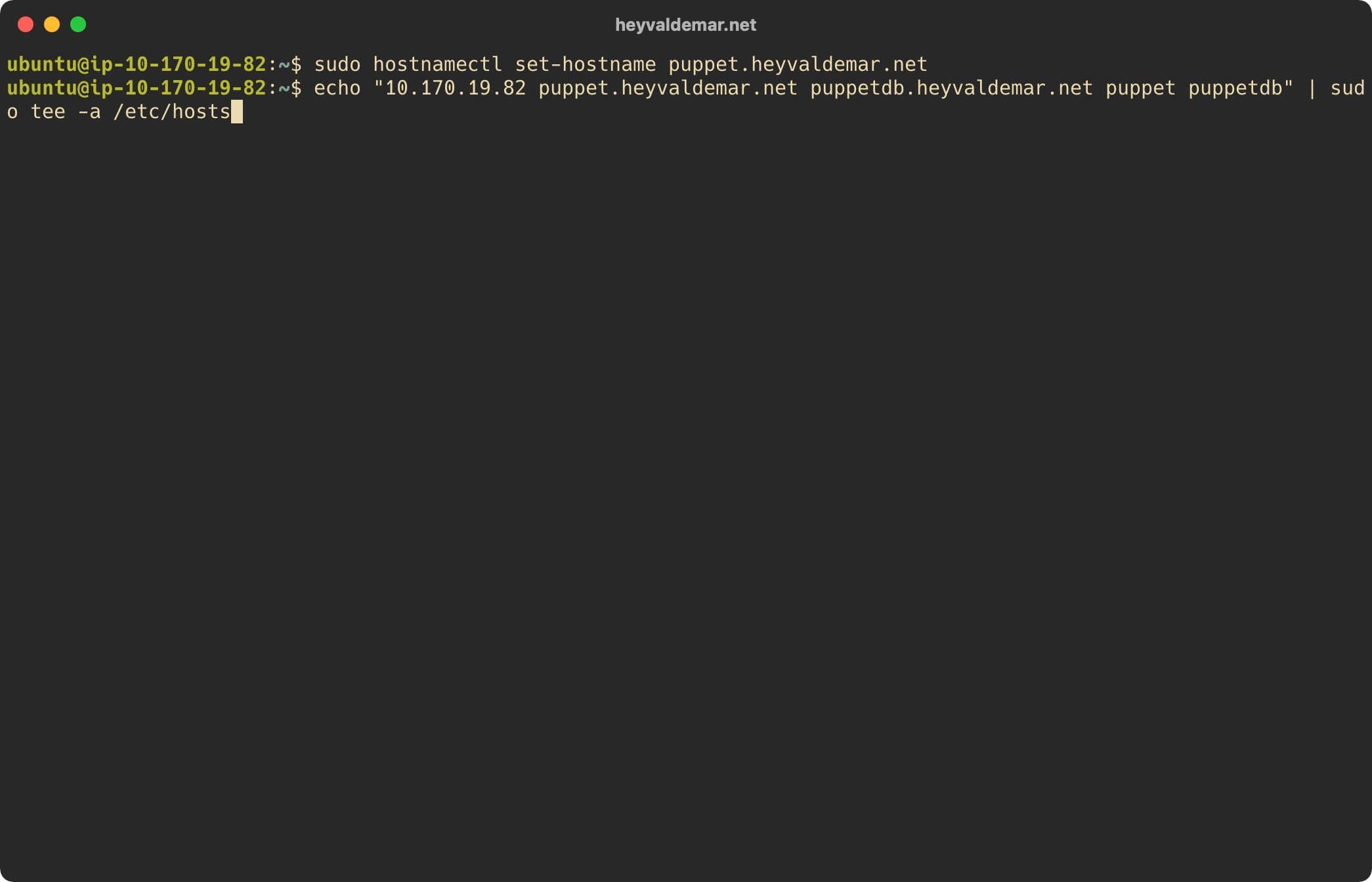

Make sure the server name has the correct DNS entry and also update the “/etc/hosts” file on the server with the command:

echo "10.170.19.82 puppet.heyvaldemar.net puppetdb.heyvaldemar.net puppet puppetdb" | sudo tee -a /etc/hosts

This tutorial uses “puppet.heyvaldemar.net” as the Puppet server name.

Please note that the entry puppetdb.heyvaldemar.net is useful if you plan to install PuppetDB in the future. This name must also have a valid DNS record.

You can find out how to install PuppetDB on Ubuntu Server by reading “Install PuppetDB on Ubuntu Server”.

Install Puppet on Ubuntu Server

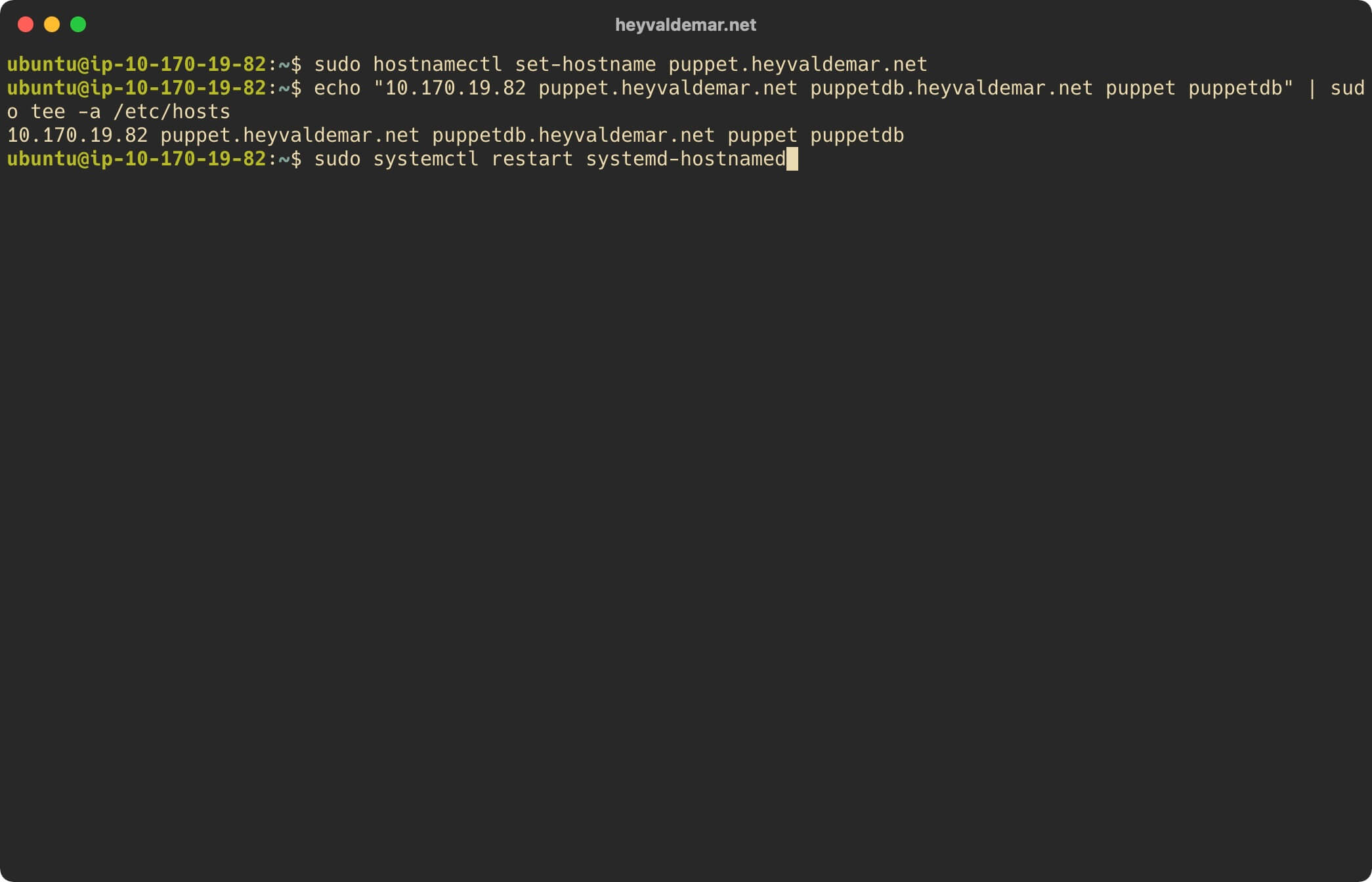

Restart the hostamed service for the changes to the server name to take effect using the command:

sudo systemctl restart systemd-hostnamed

Install Puppet on Ubuntu Server

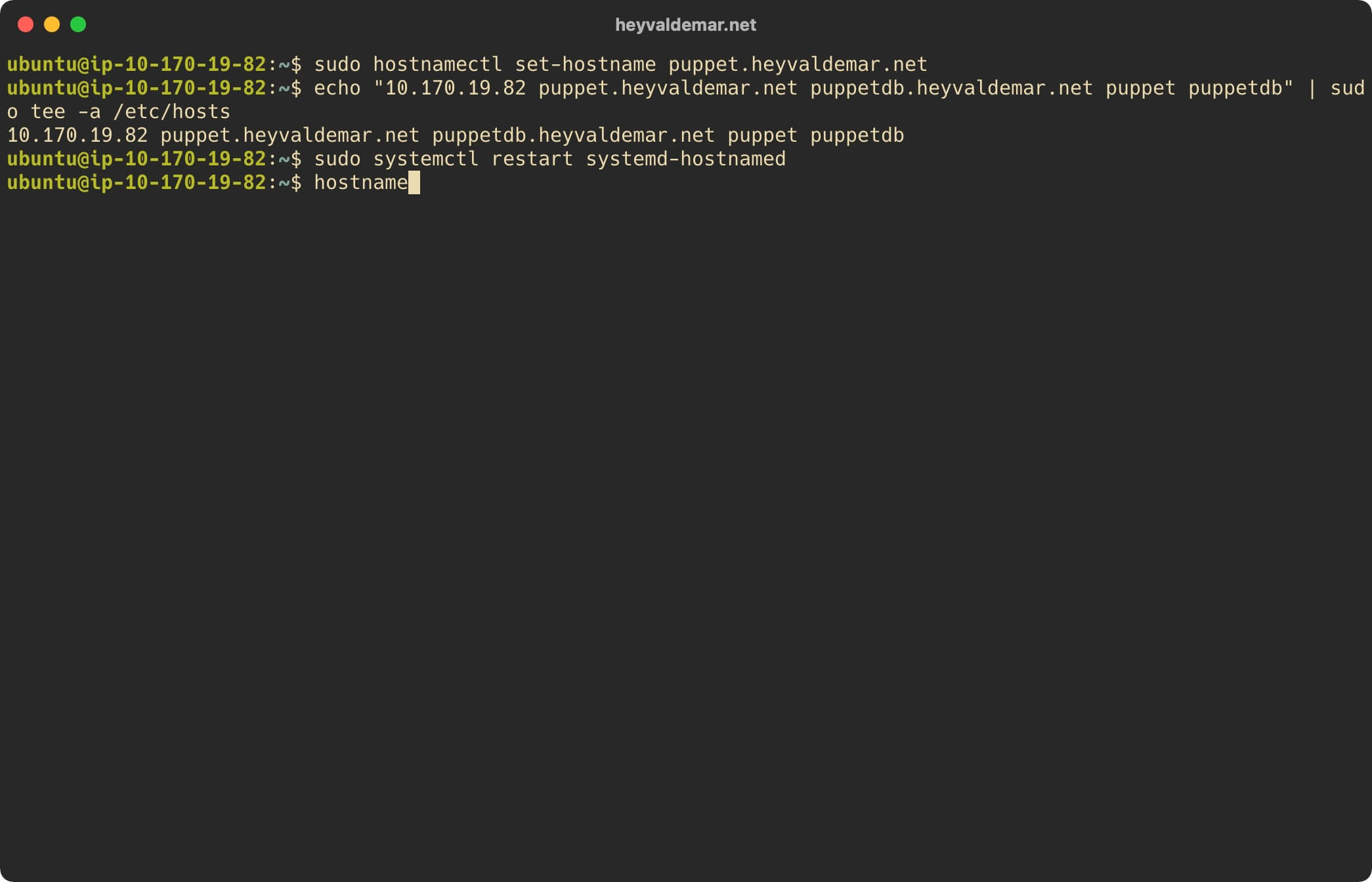

Let’s check the correctness of the server name using the command:

hostname

Install Puppet on Ubuntu Server

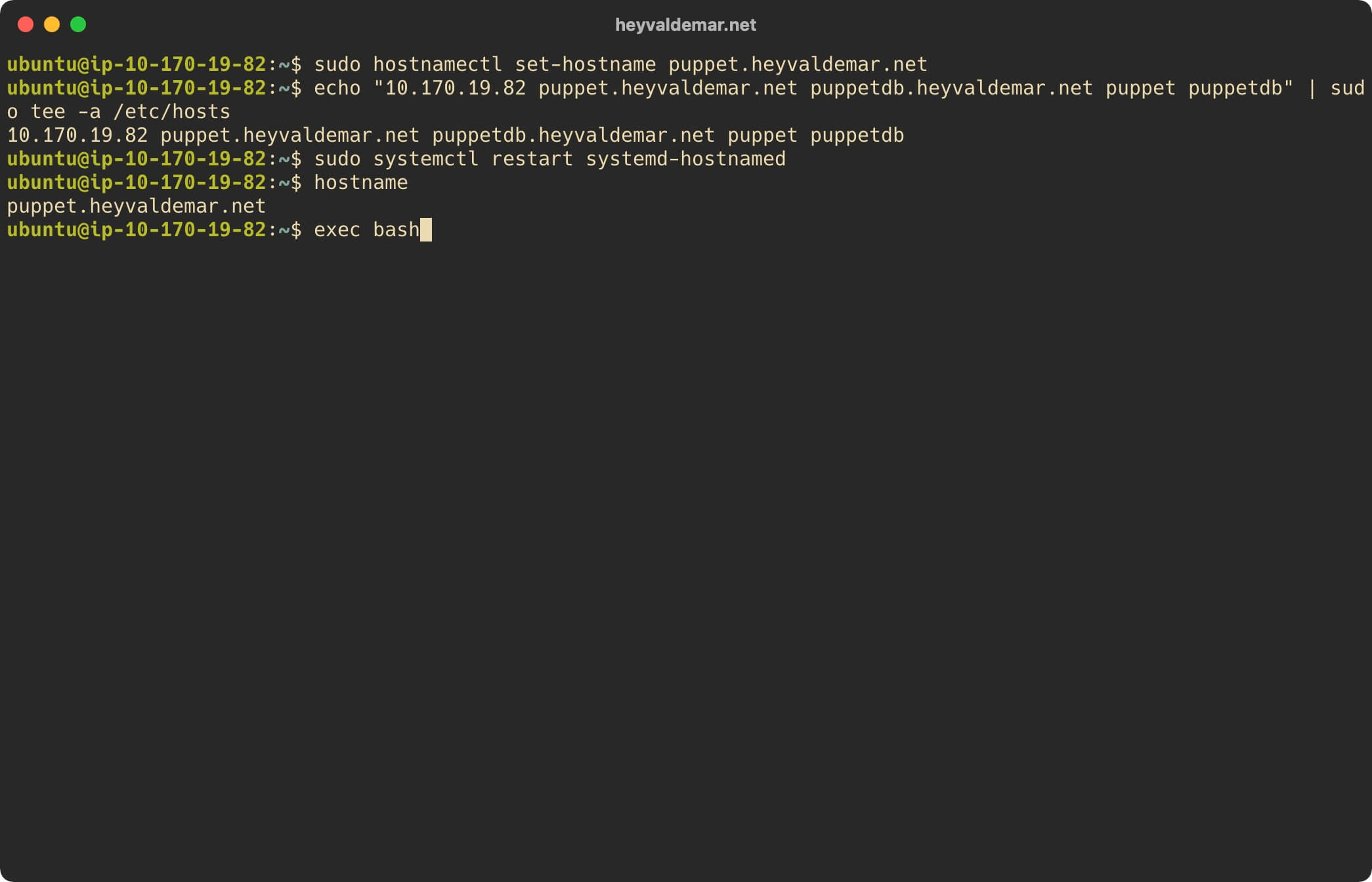

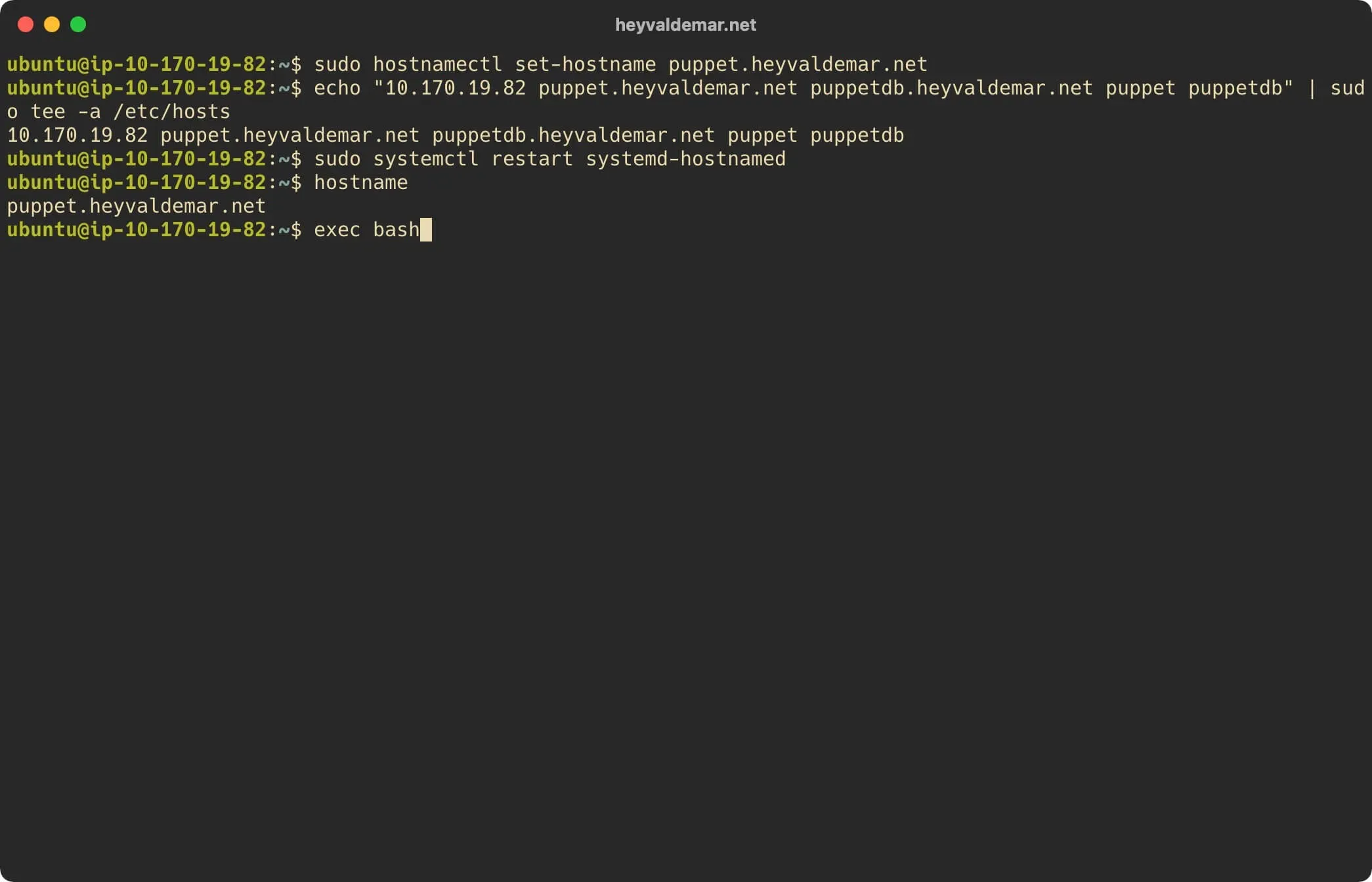

Now let’s replace the current shell process with a new one using the command:

exec bash

Install Puppet on Ubuntu Server

The correct time must be set on the Puppet server, as it will act as a CA for signing certificates from clients.

To set the time correctly, you will need to install the NTP package and synchronize the time with the upstream NTP servers.

Update the local package index to the latest changes in the repositories using the command:

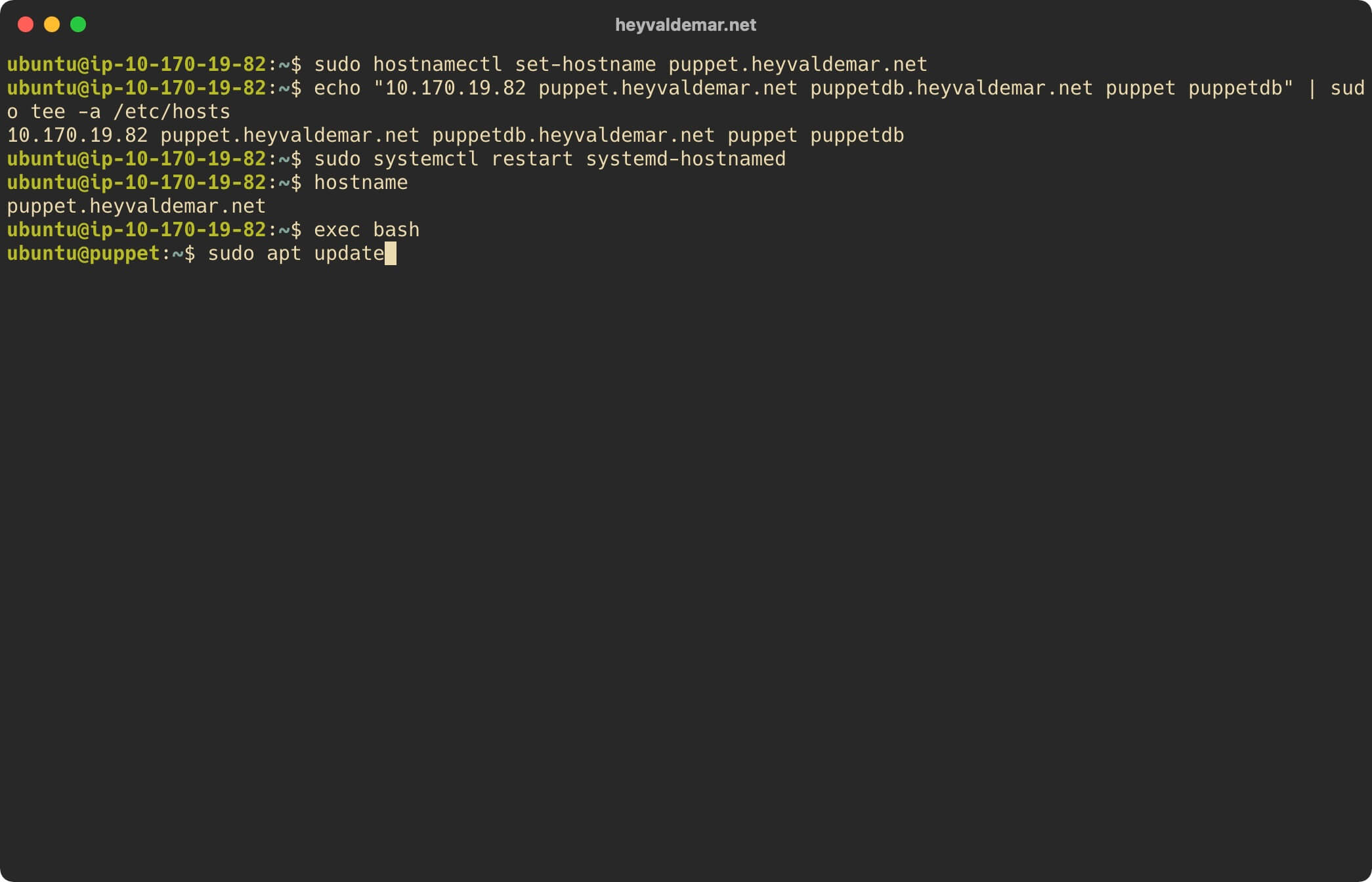

sudo apt update

Install Puppet on Ubuntu Server

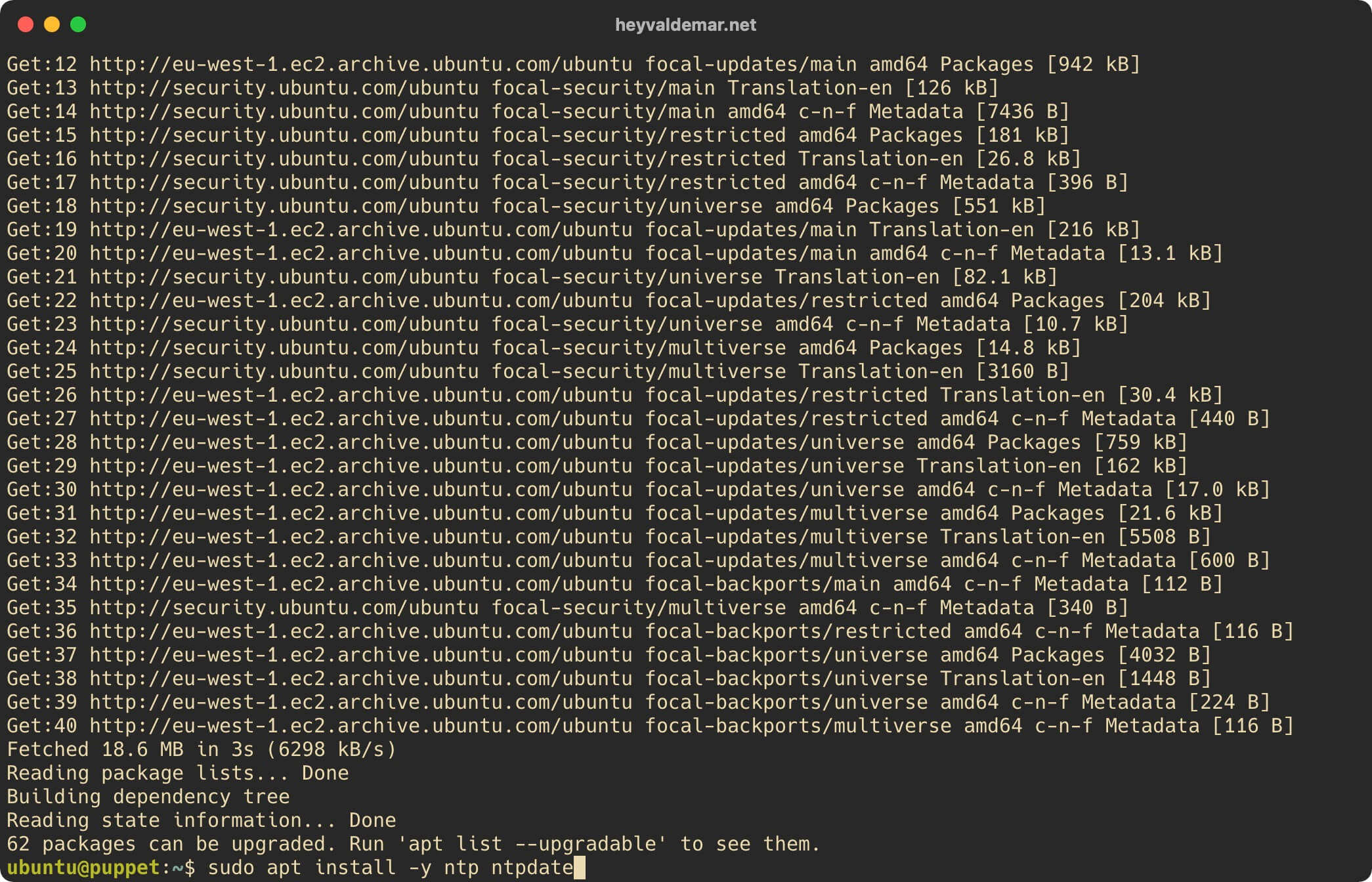

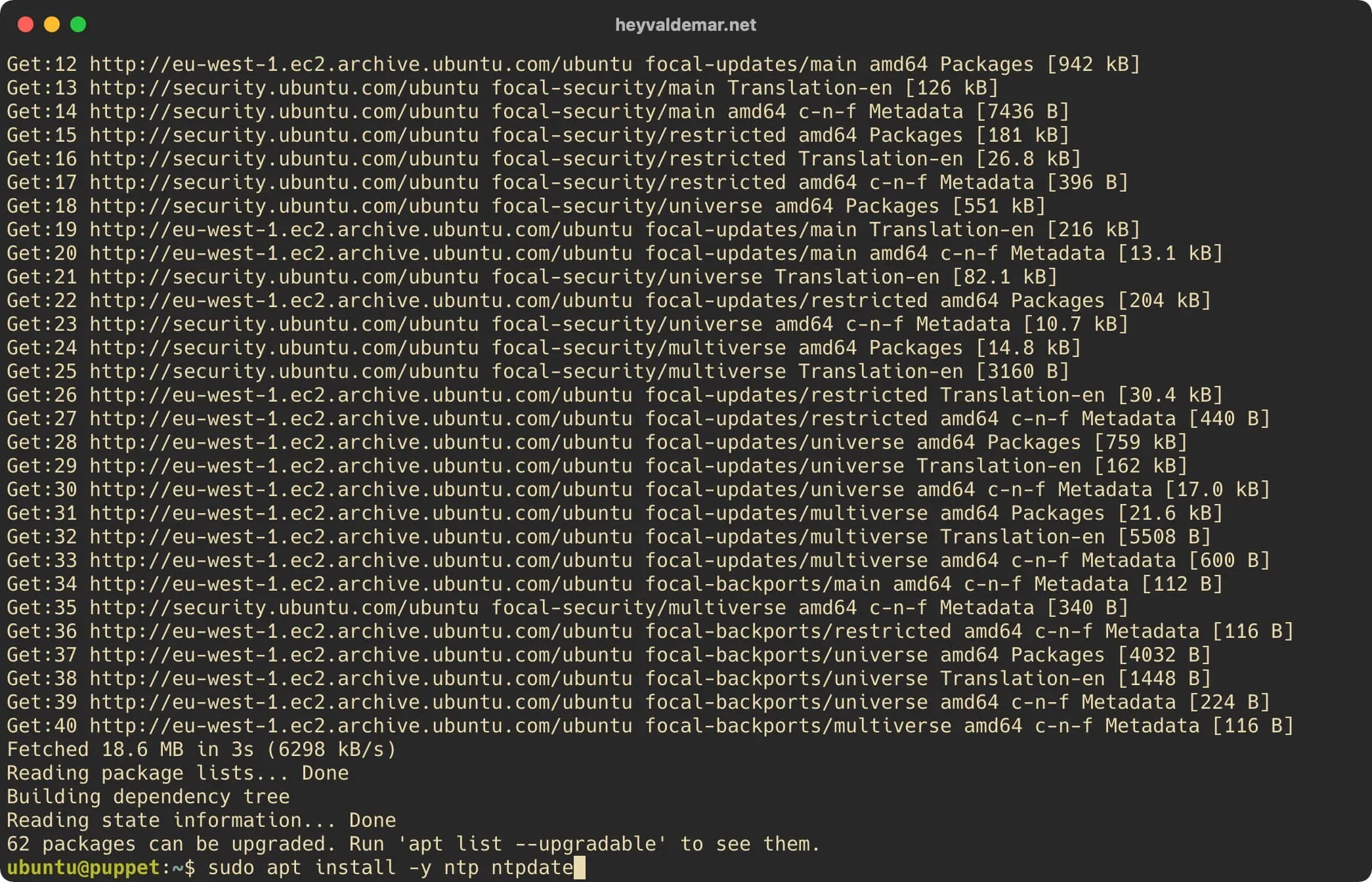

Install NTP and ntpdate using the command:

sudo apt install -y ntp ntpdate

Please note that ntpdate allows you to manually check the configuration of your connection to the NTP server.

Install Puppet on Ubuntu Server

Synchronize time with upstream NTP servers using the command:

sudo ntpdate -u 0.ubuntu.pool.ntp.org

Install Puppet on Ubuntu Server

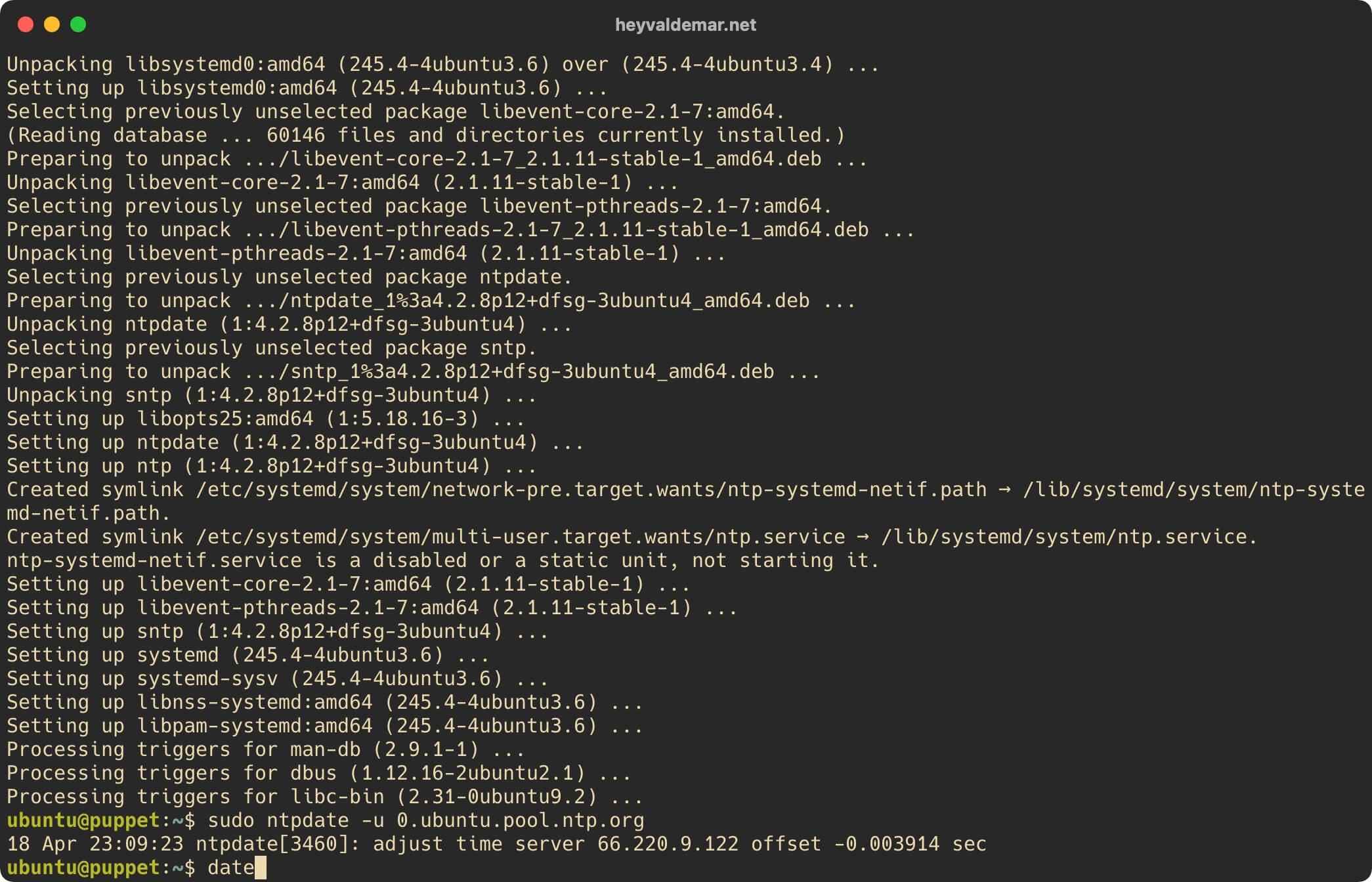

Let’s check the correctness of the date and time on the server using the command:

date

Please note that this tutorial is based on a server located in Berlin.

Install Puppet on Ubuntu Server

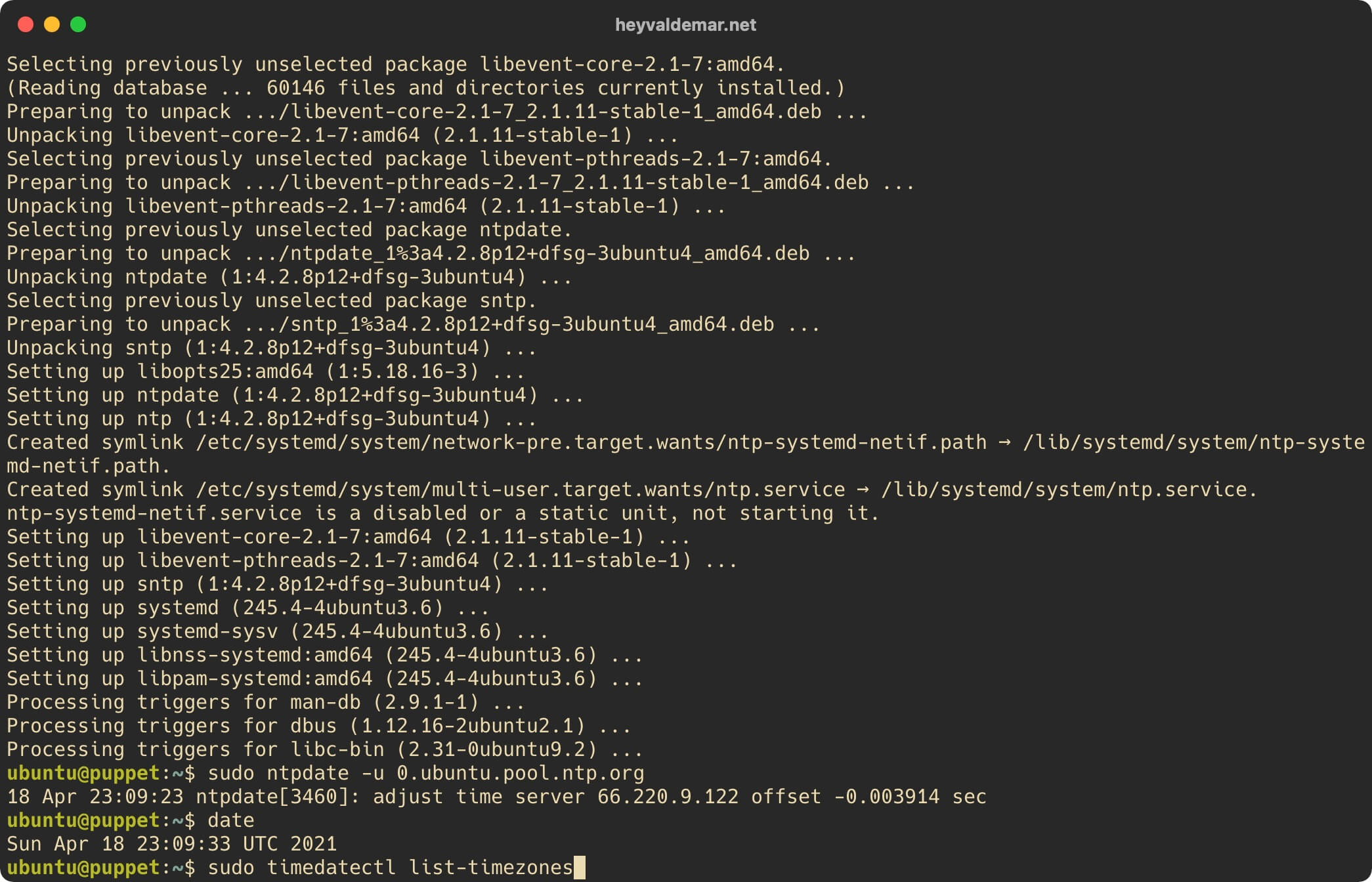

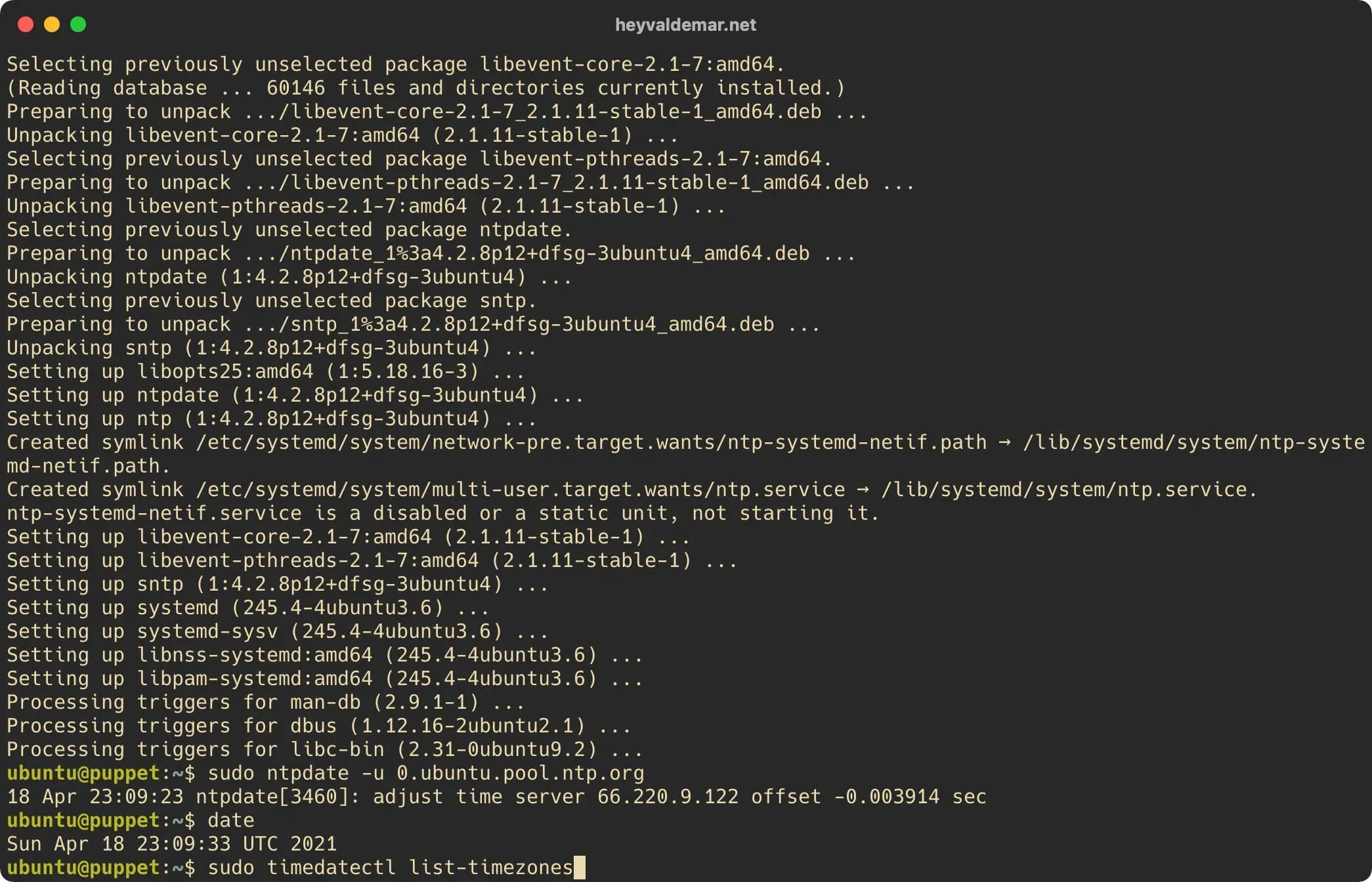

Let’s see a list of time zone values for all locations using the command:

sudo timedatectl list-timezones

Install Puppet on Ubuntu Server

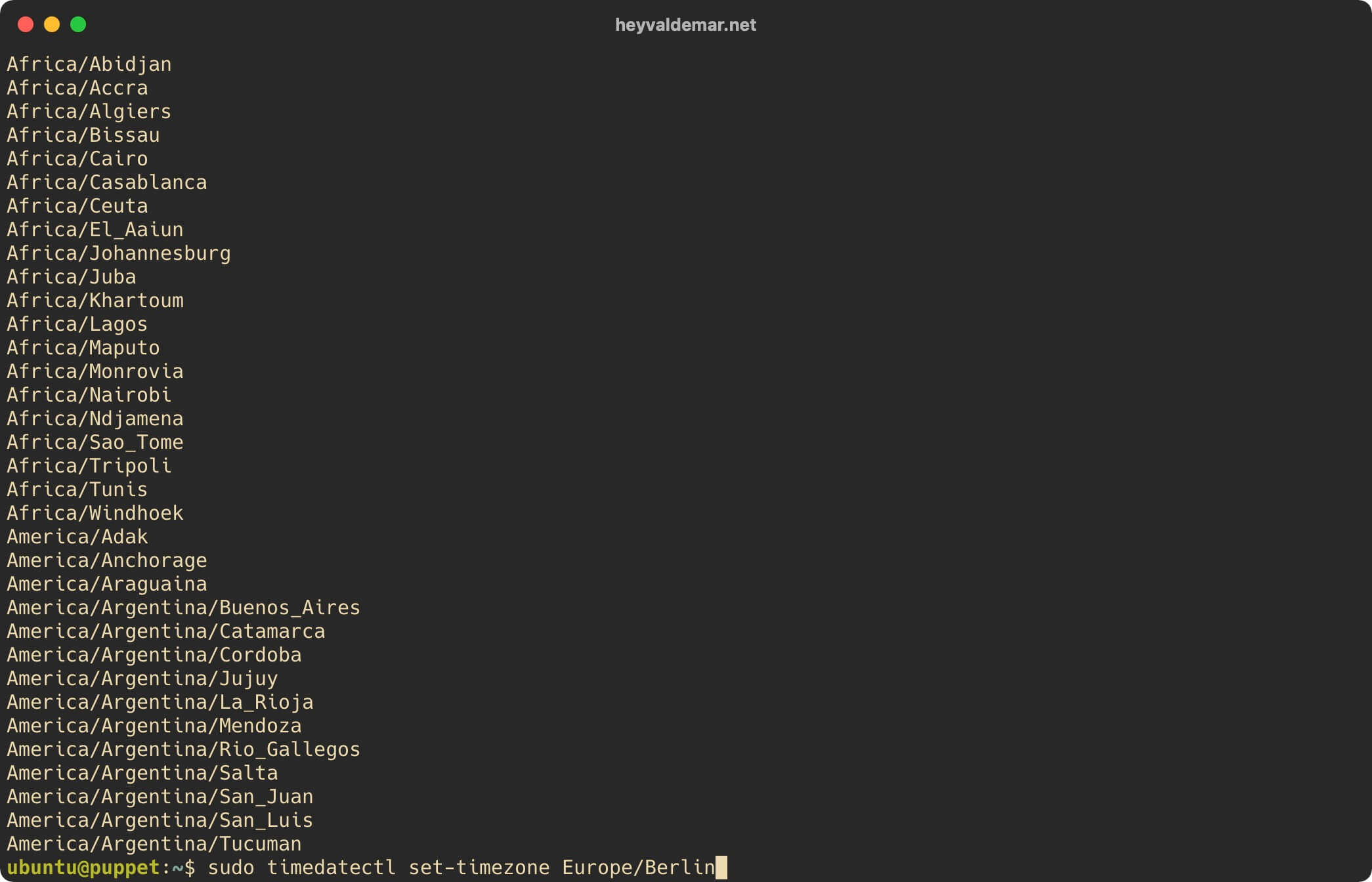

We select the value suitable for your location and change the time zone using the command:

sudo timedatectl set-timezone Europe/Berlin

Please note that this tutorial is based on a server located in Berlin.

Install Puppet on Ubuntu Server

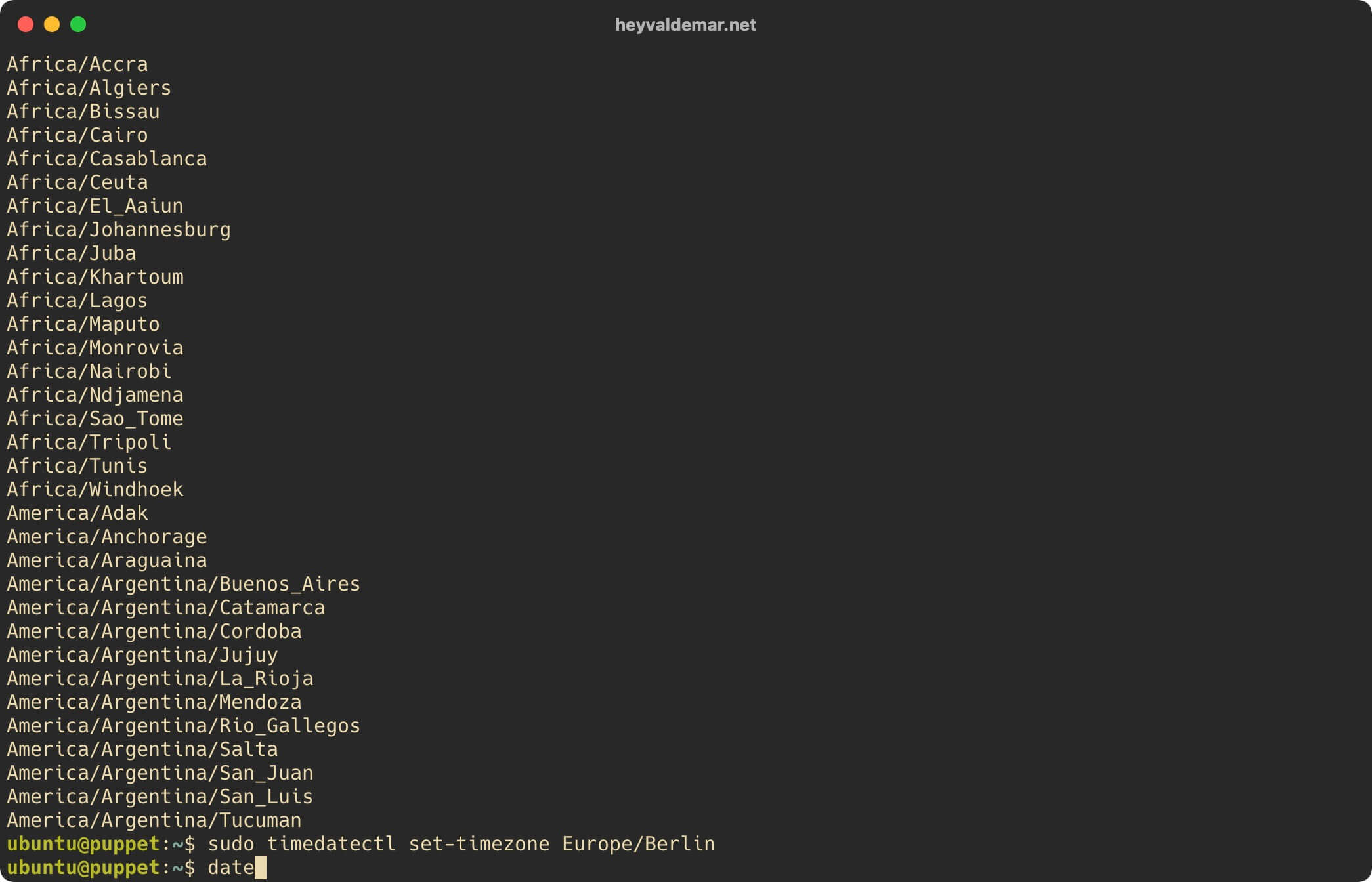

We again check the correctness of the date and time on the server using the command:

date

Install Puppet on Ubuntu Server

Now you need to download and install the Puppet Server repository configuration package.

Download the Puppet Server repository configuration package using the command:

wget https://apt.puppetlabs.com/puppet7-release-focal.deb

Install Puppet on Ubuntu Server

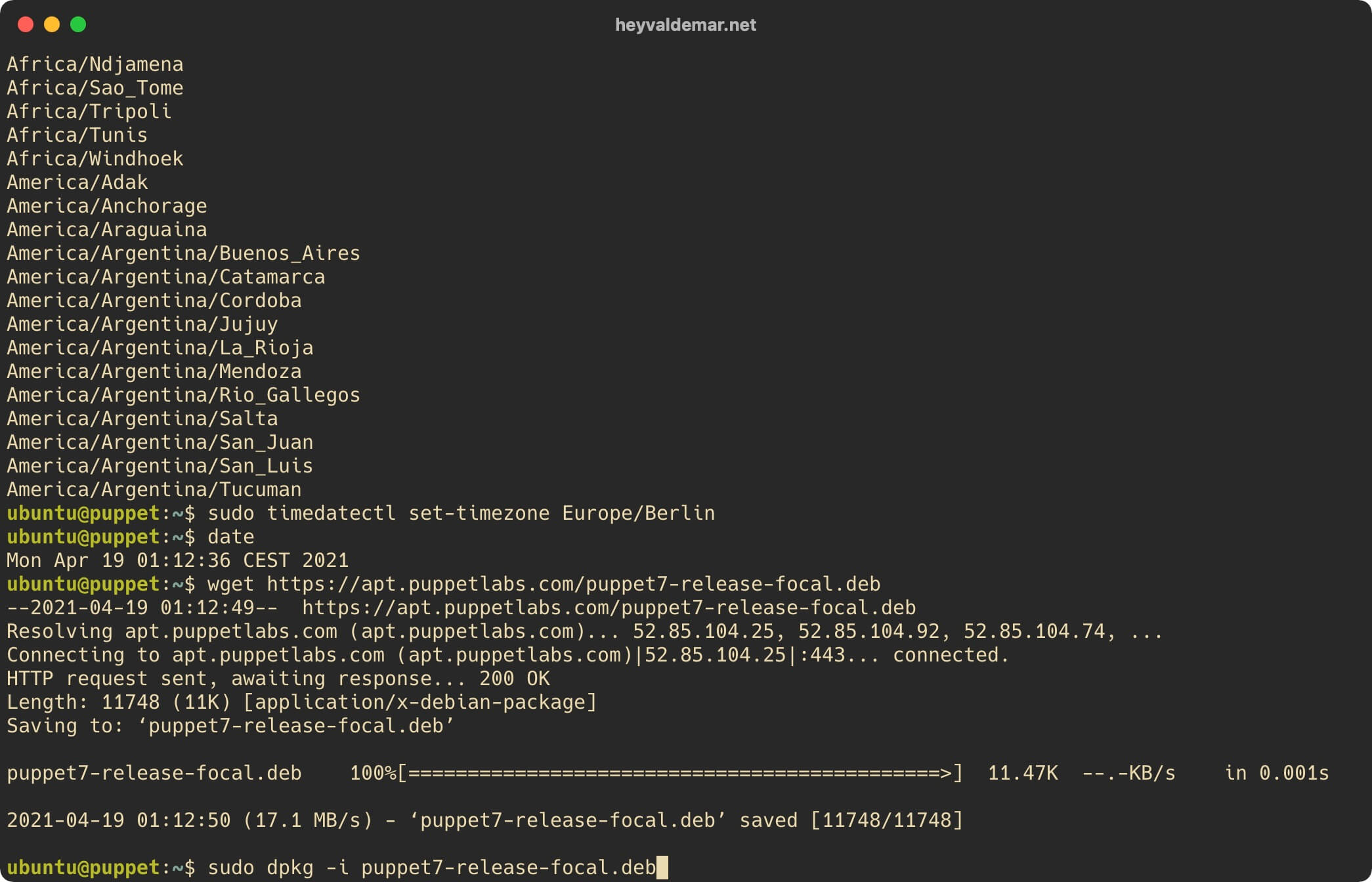

Install the Puppet Server repository configuration package using the command:

sudo dpkg -i puppet7-release-focal.deb

Install Puppet on Ubuntu Server

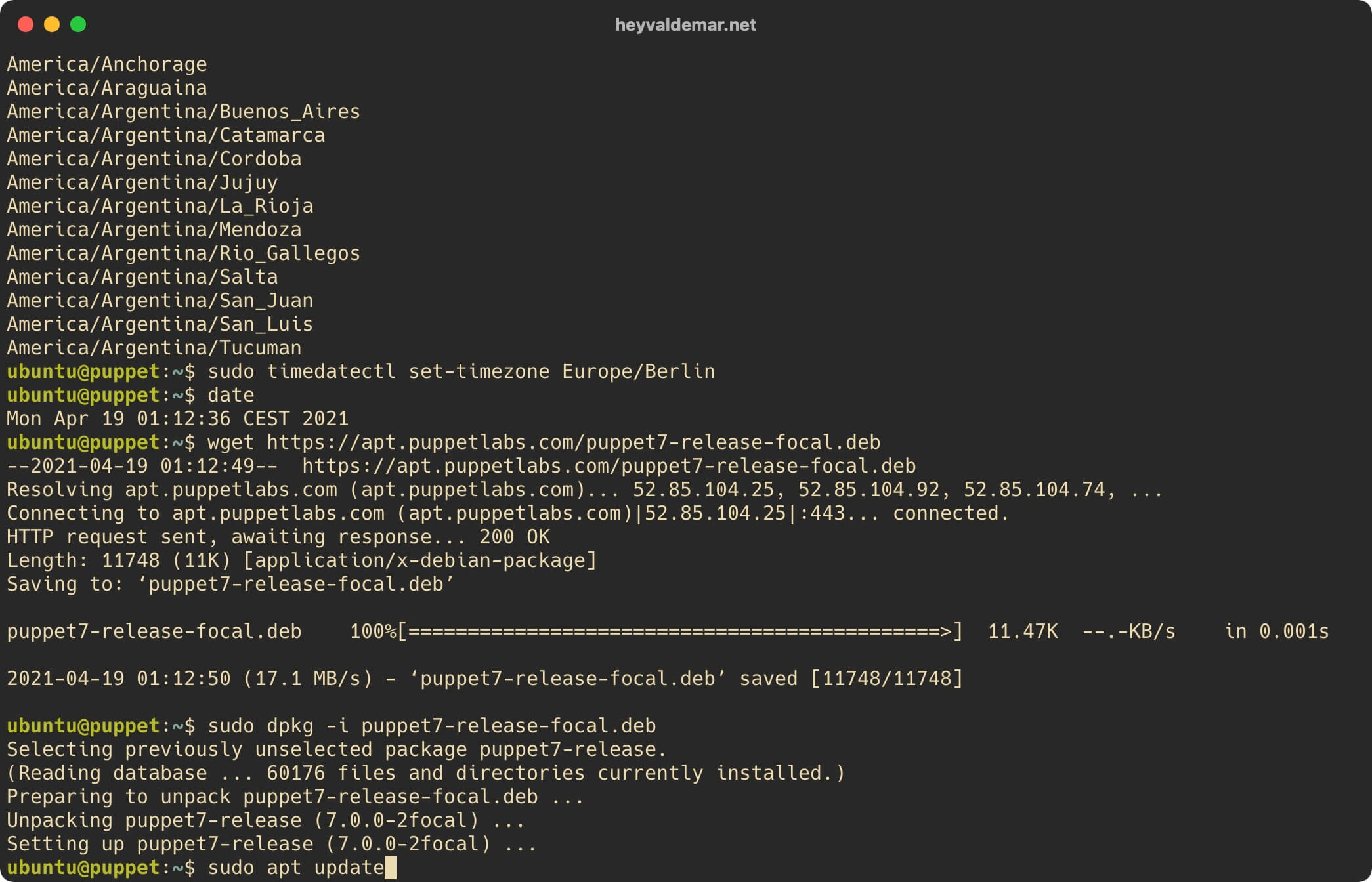

Update the local package index to the latest changes in the repositories using the command:

sudo apt update

Install Puppet on Ubuntu Server

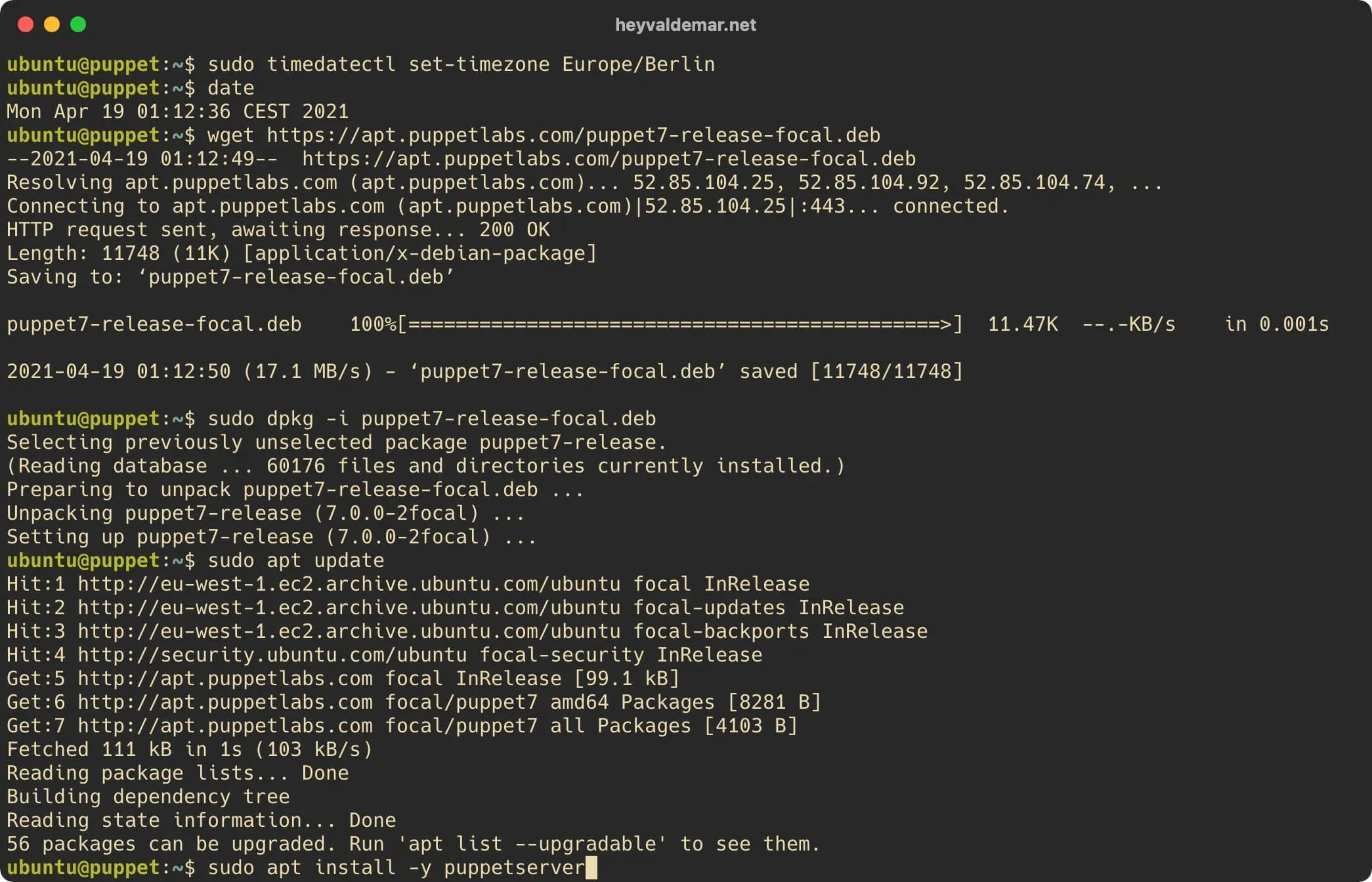

Now install Puppet Server using the command:

sudo apt install -y puppetserver

Install Puppet on Ubuntu Server

Puppet binaries are located in the “/opt/puppetlabs/bin/” directory, which is not in the “PATH” environment variable by default and in the “secure_path” variable that is used for “sudo” operations.

Note that the path to the executable files is irrelevant for the Puppet services since the start of the services does not depend on the “PATH” and “secure_path”.

By adding the path to executable files to variables, you can use:

sudo puppet agent -t

Instead:

sudo /opt/puppetlabs/bin/puppet agent -t

Add the path to the Puppet executable files to the “secure_path” variable.

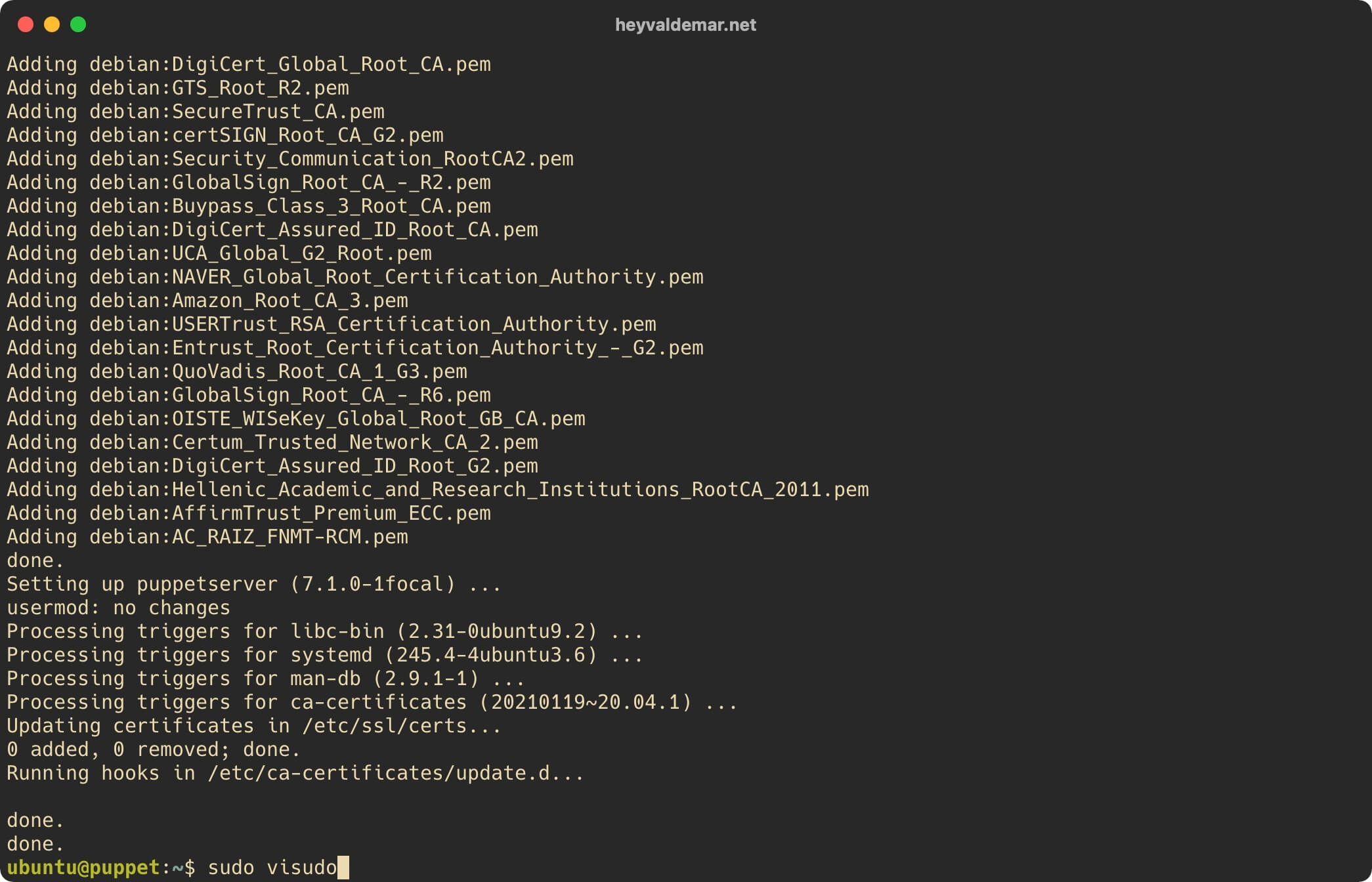

Open the “sudoers” configuration file in a text editor using the command:

sudo visudo

Install Puppet on Ubuntu Server

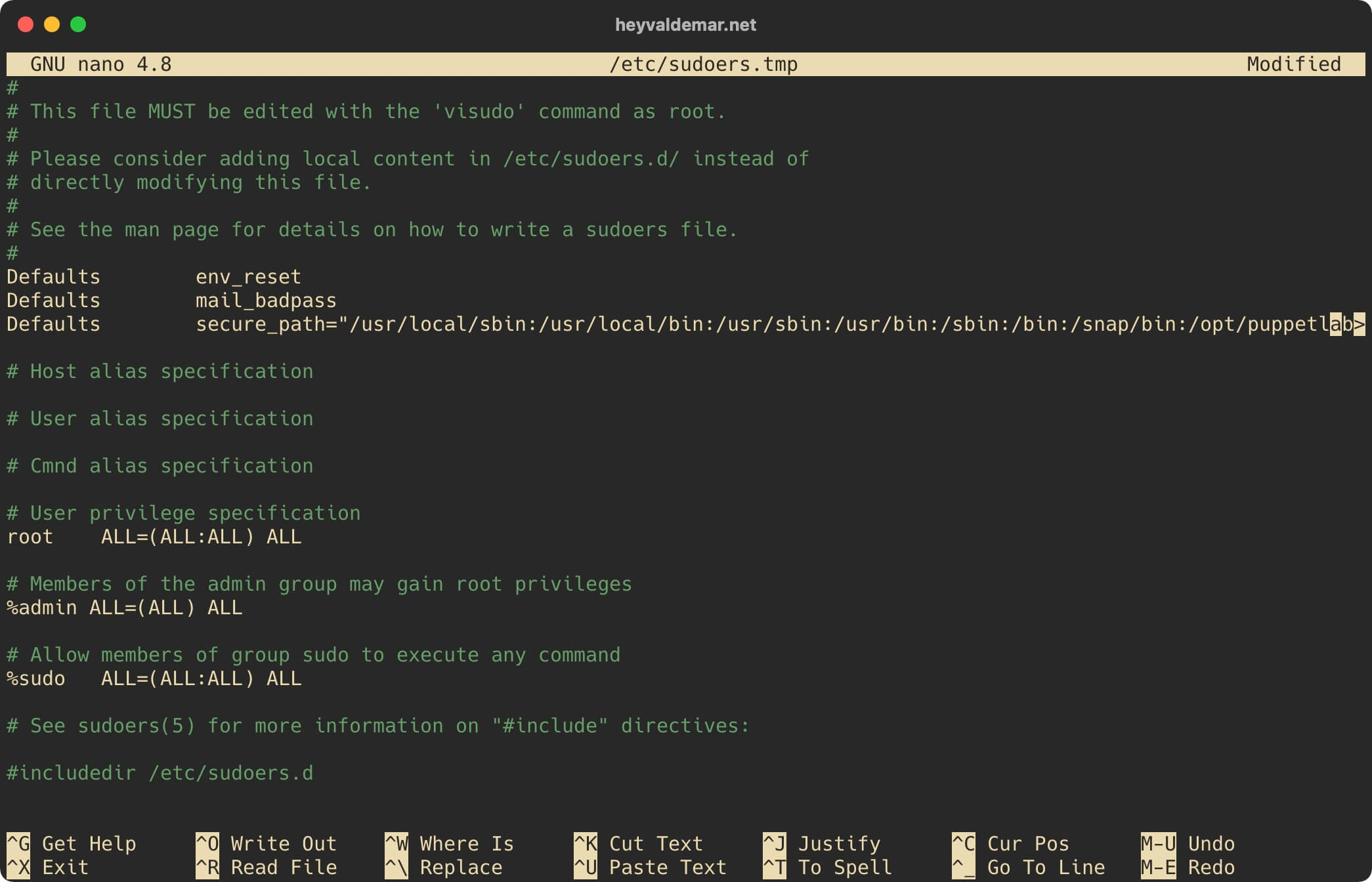

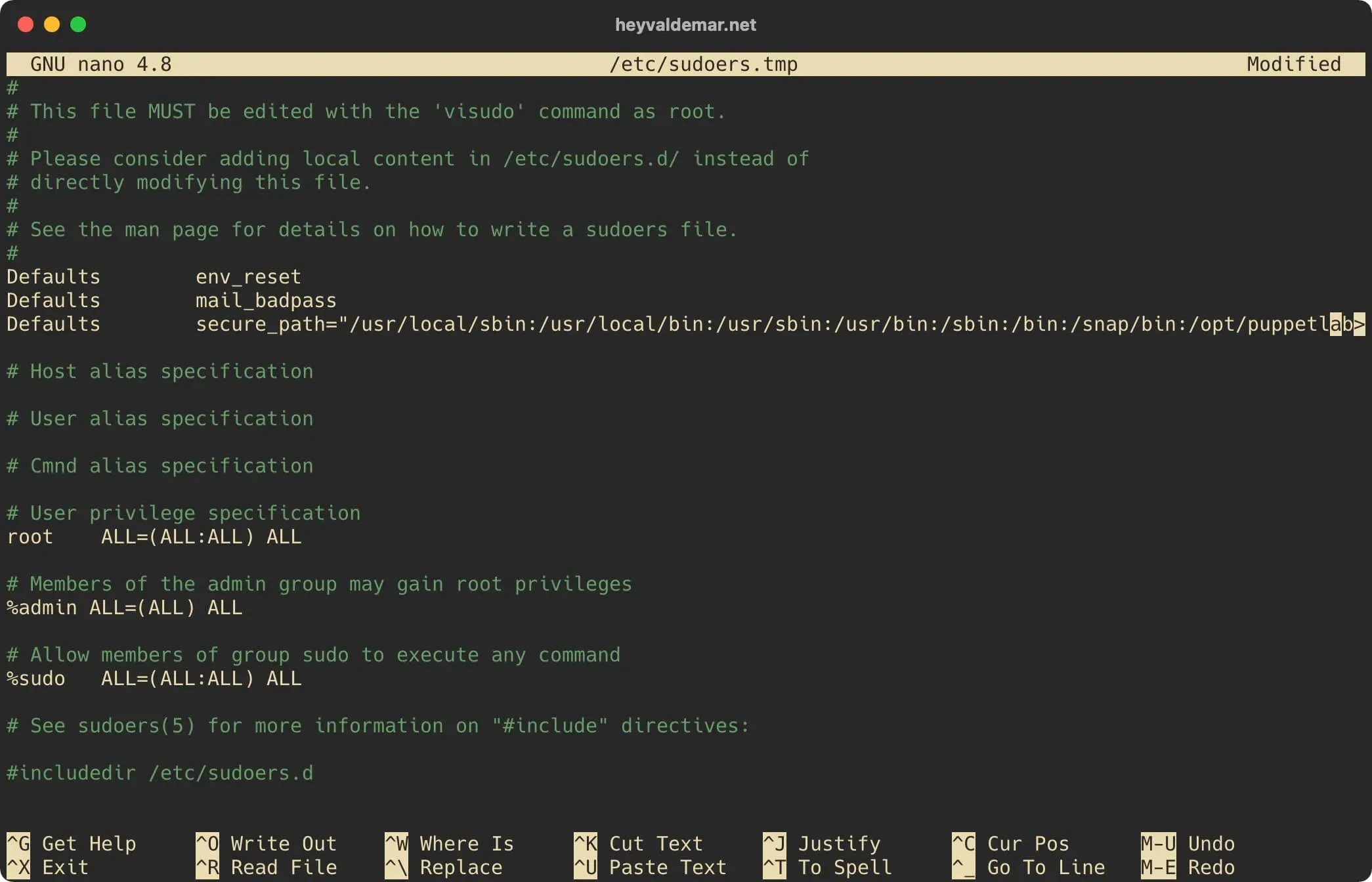

Find the variable “secure_path”, and at the end of the line, before the closing quote, add the path to the Puppet executable files :/opt/puppetlabs/bin.

In order to save the changes in the “sudoers” file, press “Ctrl + x”.

Install Puppet on Ubuntu Server

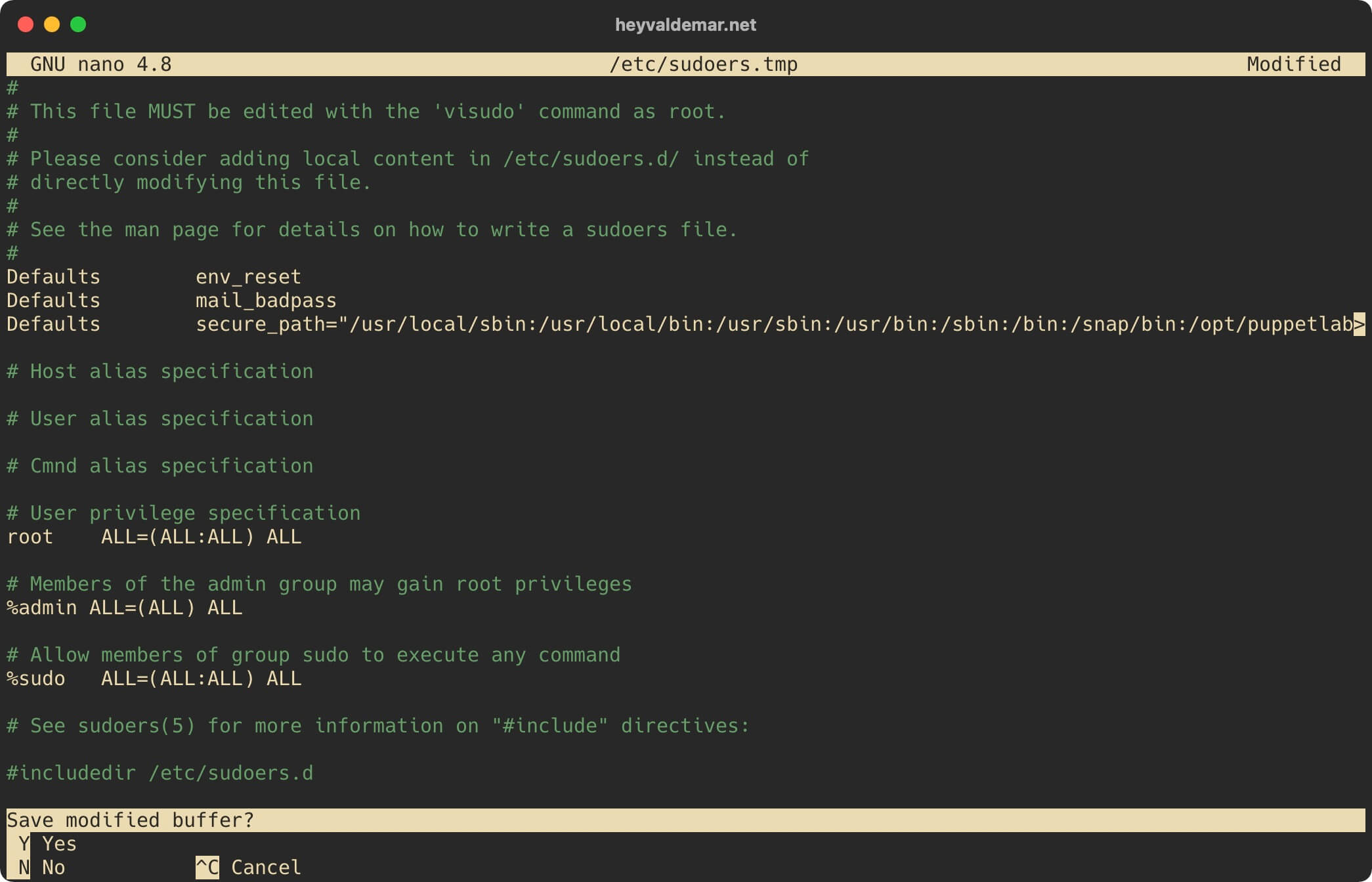

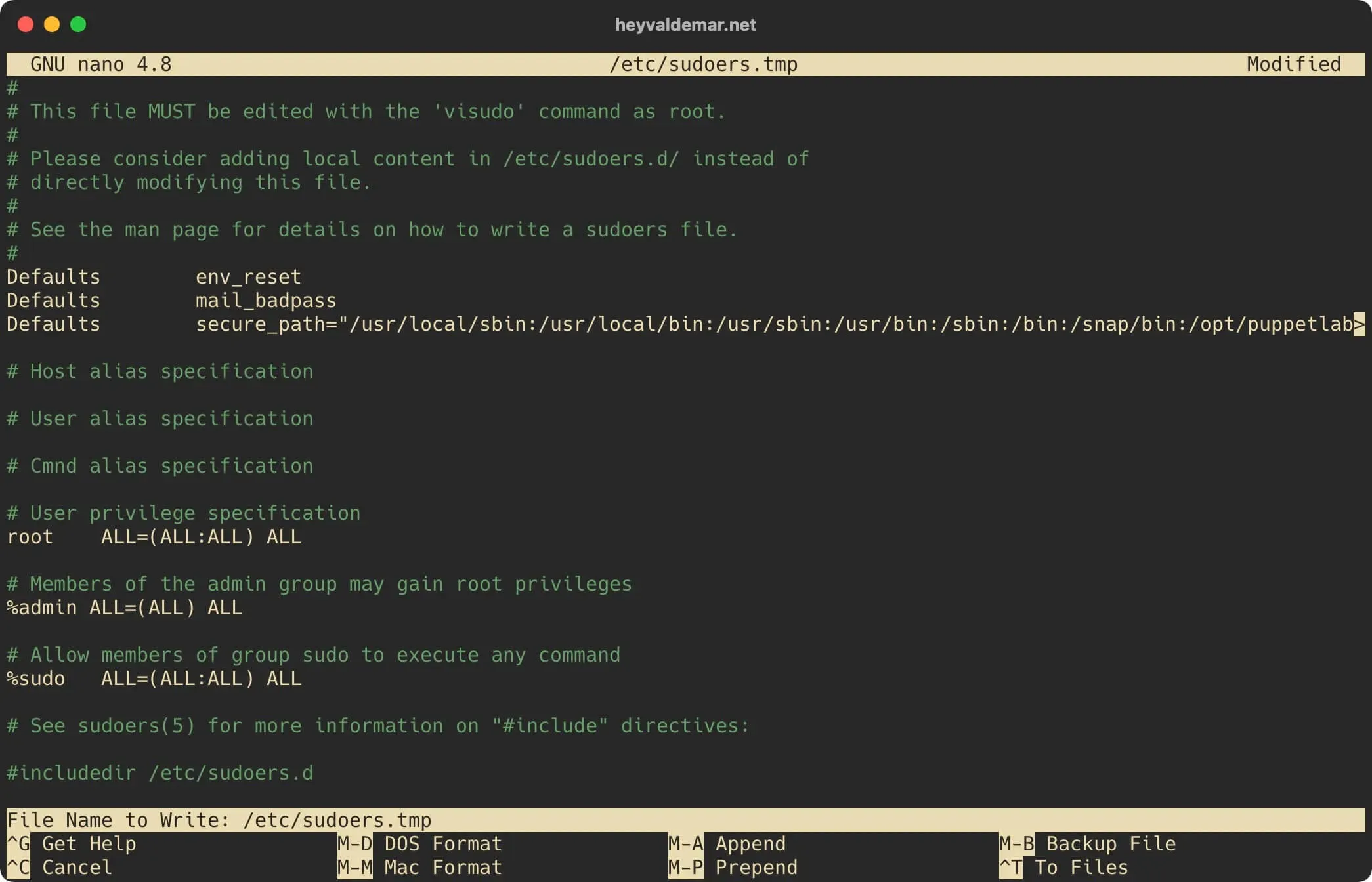

Now you need to confirm the changes in the file.

Click on the “y” button.

Install Puppet on Ubuntu Server

Press the “Enter” button to confirm saving the file.

Install Puppet on Ubuntu Server

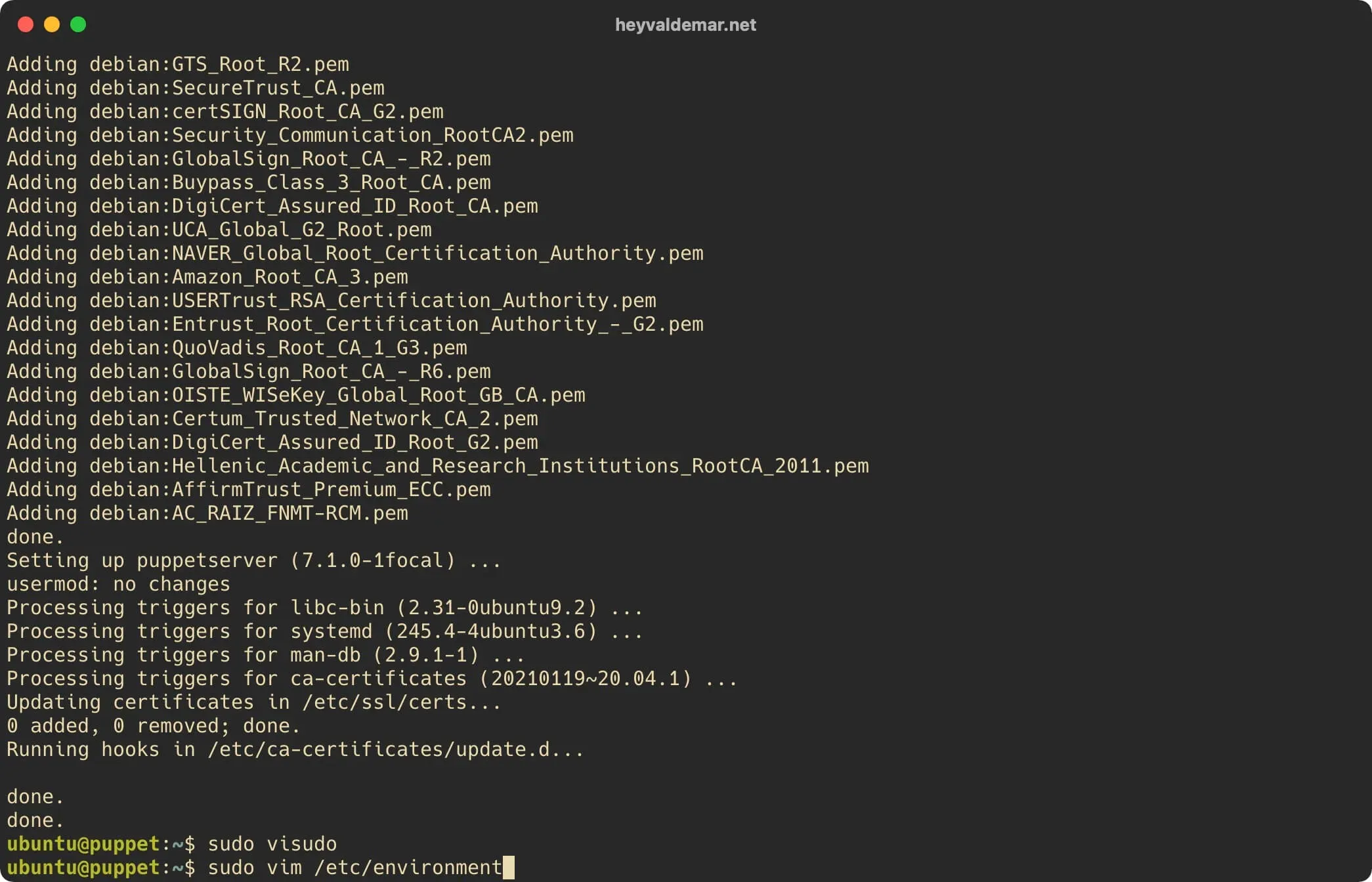

Now let’s add the path to the Puppet executables to the “PATH” environment variable.

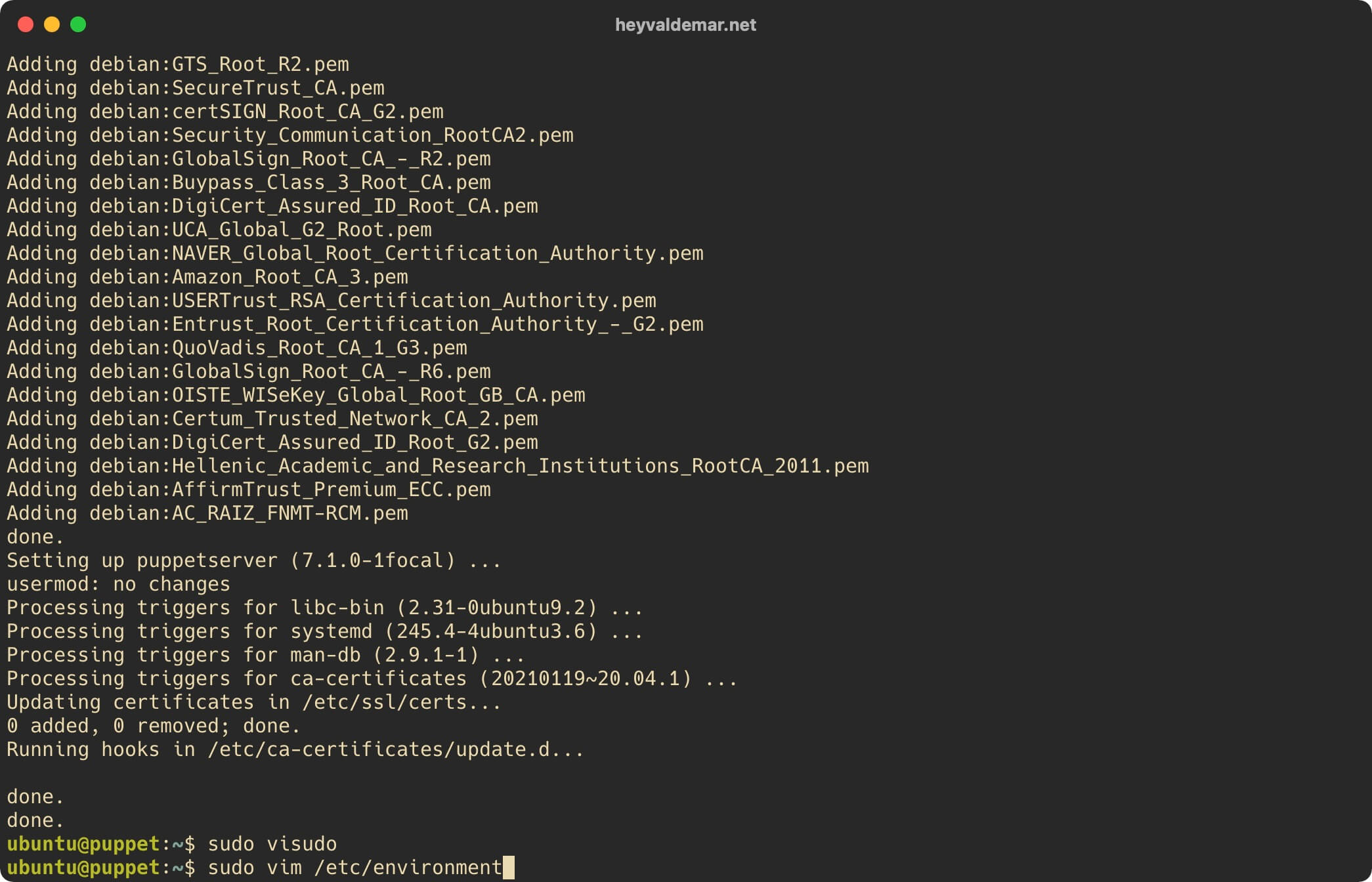

Open the “environment” configuration file in a text editor using the command:

sudo vim /etc/environment

Install Puppet on Ubuntu Server

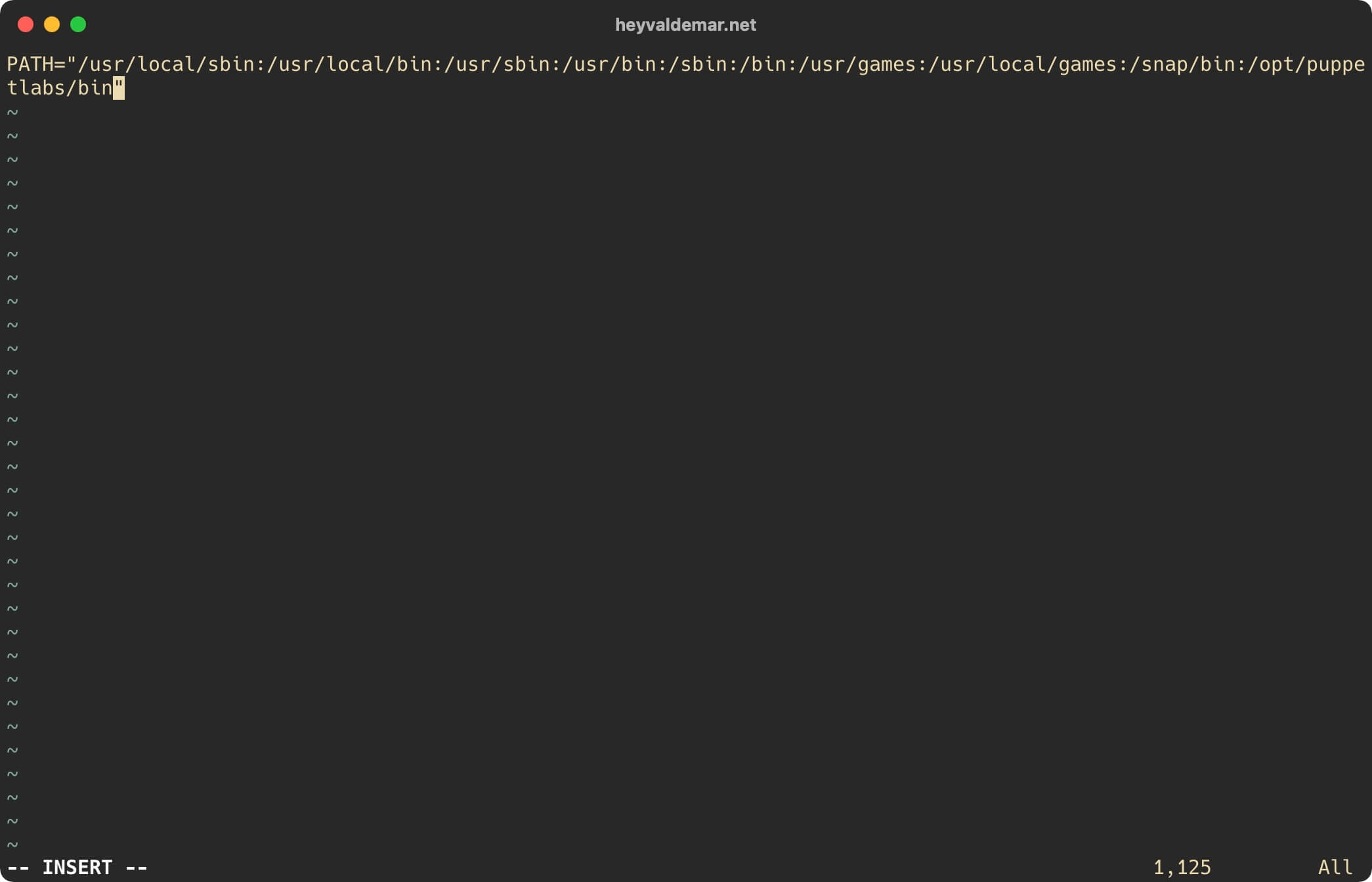

Press the “i” button to enter edit mode, and at the end of the line, before the closing quote, add the path to the Puppet executable files :/opt/puppetlabs/bin.

Install Puppet on Ubuntu Server

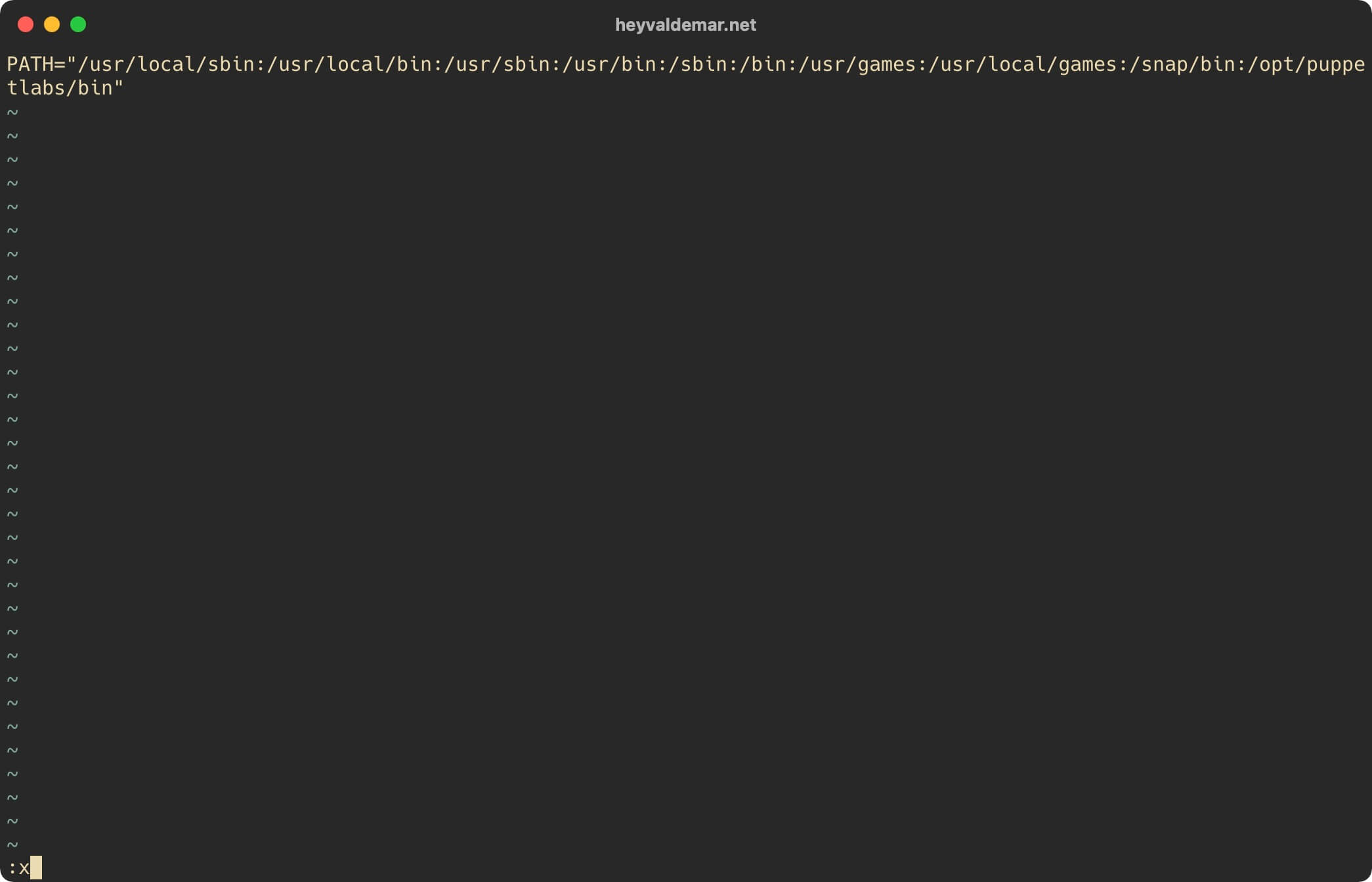

Now press the “Esc” button to exit edit mode, then type “:x” and press the “Enter” button to save your changes and exit the editor.

Install Puppet on Ubuntu Server

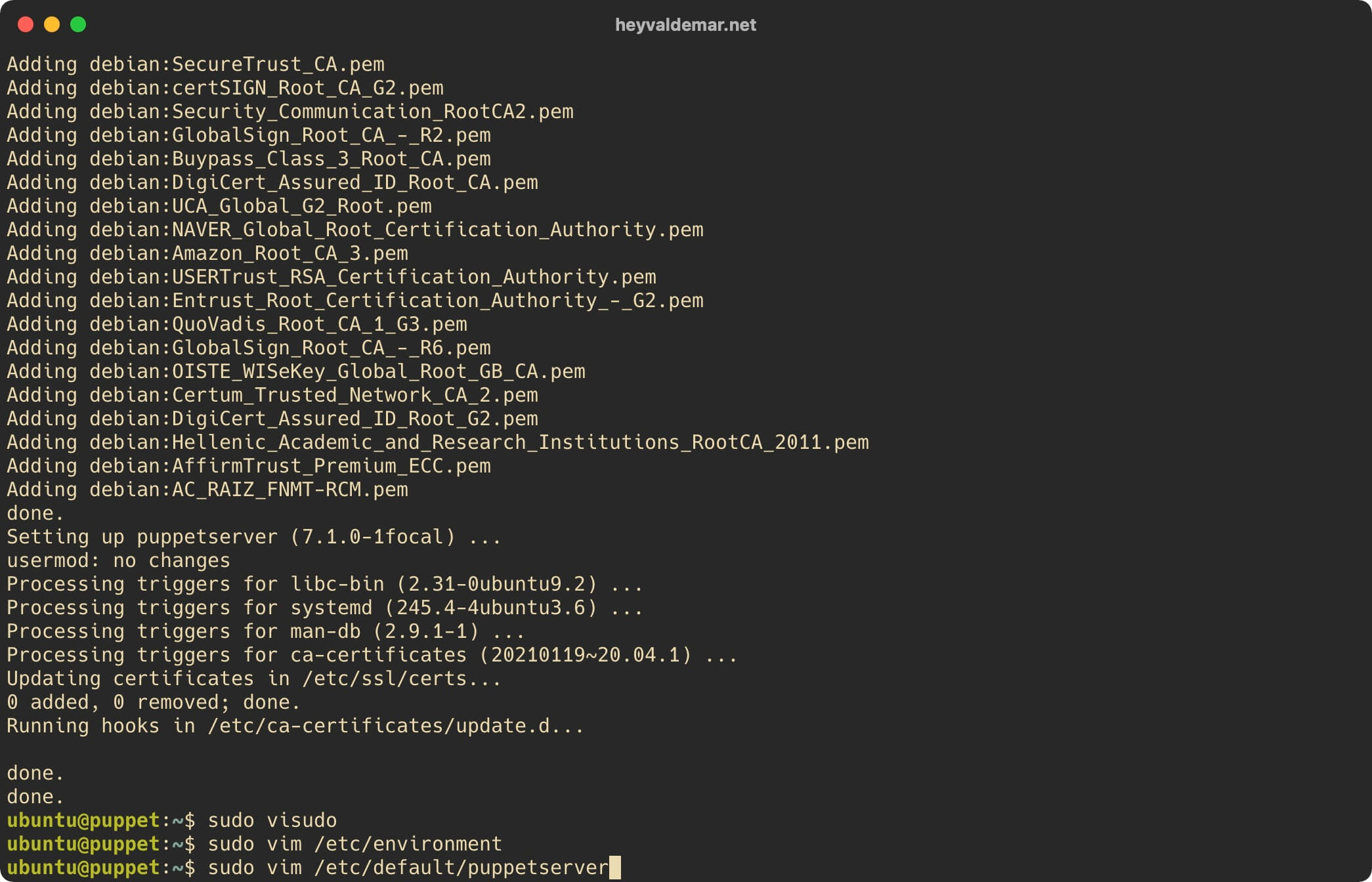

By default, the Puppet Server JVM is configured to use 2 GB of RAM. This value can be changed in the Puppet config file by opening it in a text editor using the command:

sudo vim /etc/default/puppetserver

Install Puppet on Ubuntu Server

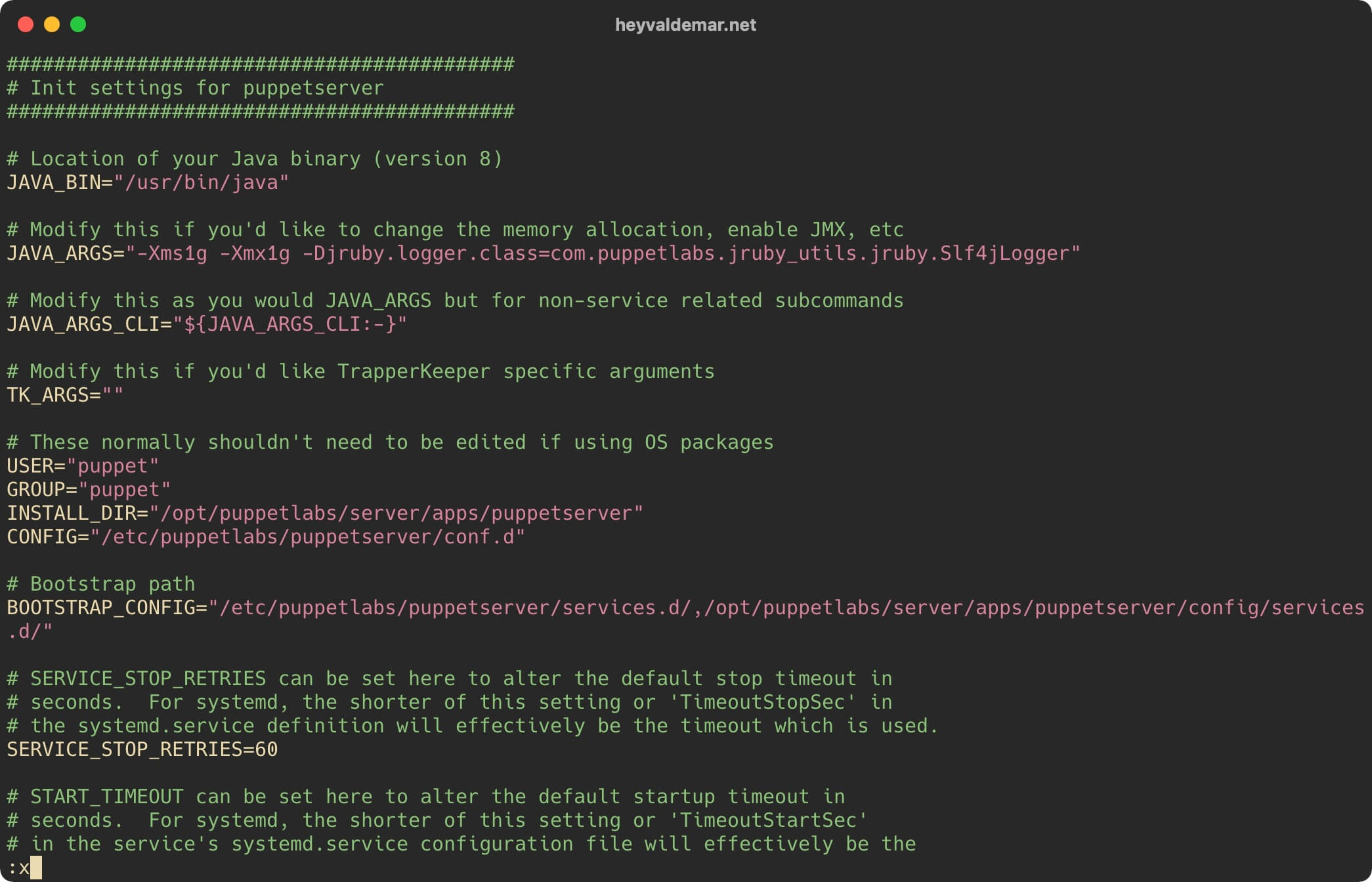

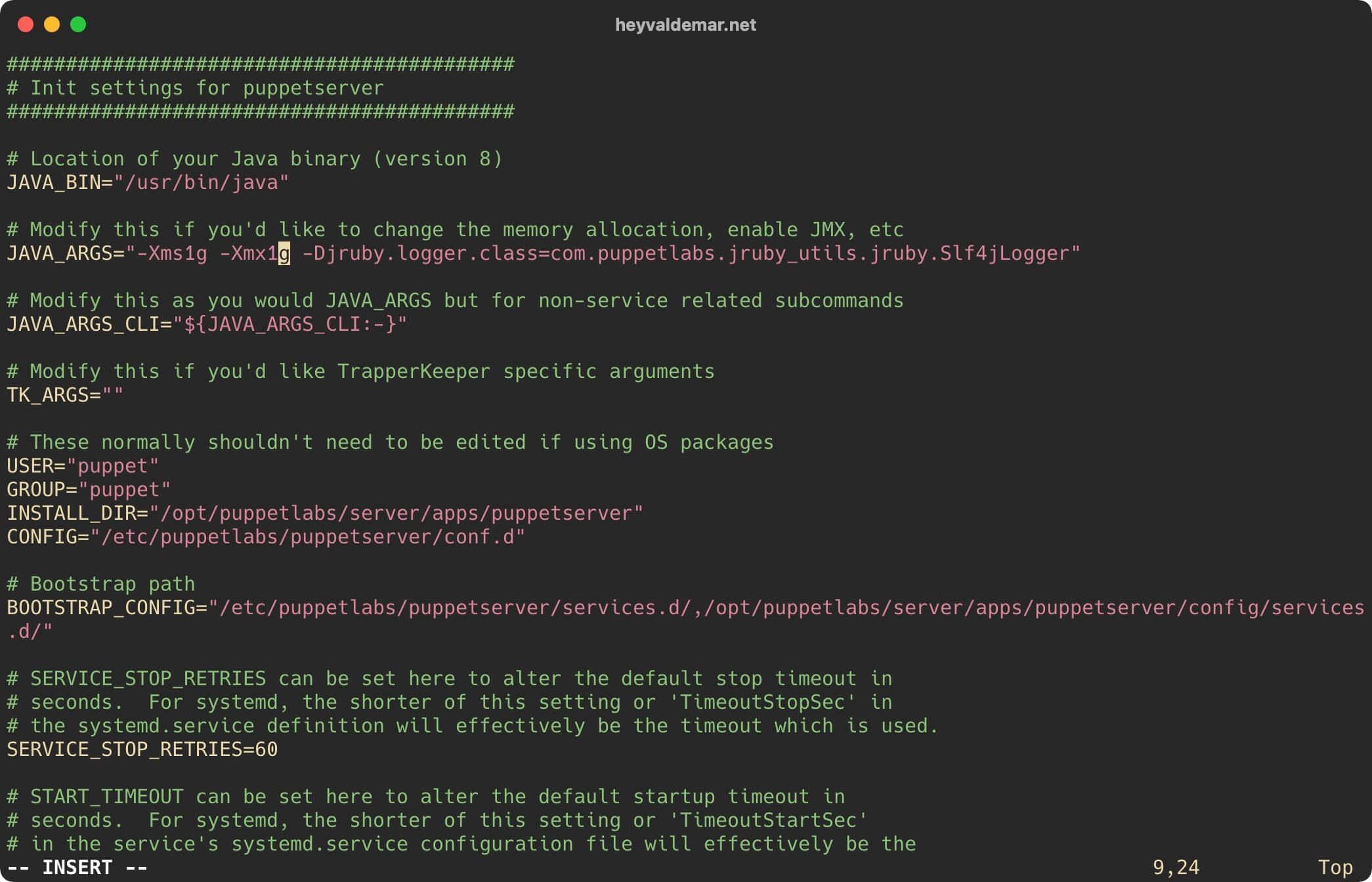

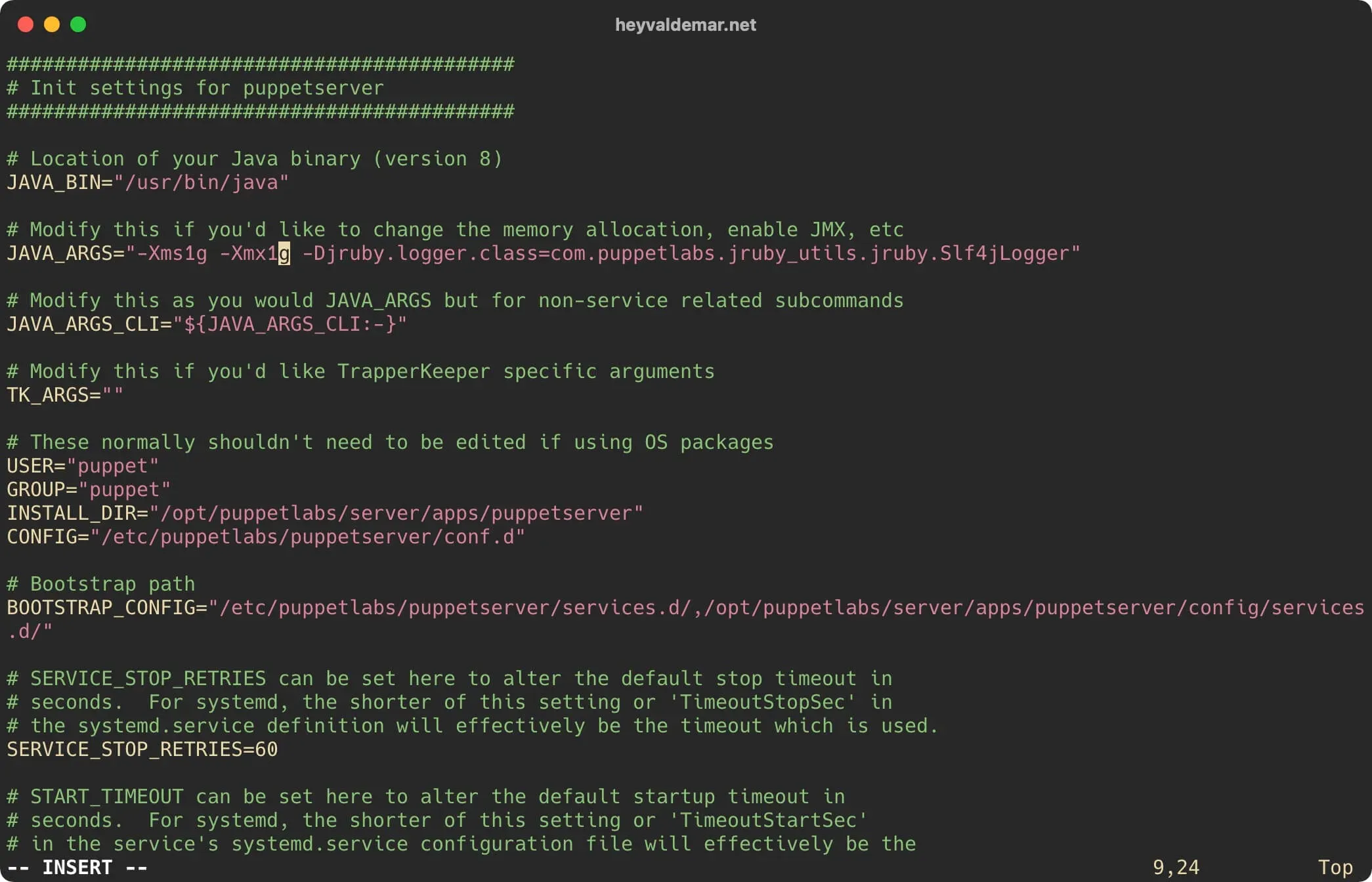

Press the “i” button to enter edit mode, find the line JAVA_ARGS=”-Xms2g -Xmx2g -Djruby.logger.class=com.puppetlabs.jruby_utils.jruby.Slf4jLogger” and change the “Xms” parameters and “Xmx” according to your Puppet server requirements.

Please note that in this manual the “Xms” and “Xmx” parameters will be set to 1 GB.

Install Puppet on Ubuntu Server

Now press the “Esc” button to exit edit mode, then type “:x” and press the “Enter” button to save your changes and exit the editor.

Install Puppet on Ubuntu Server

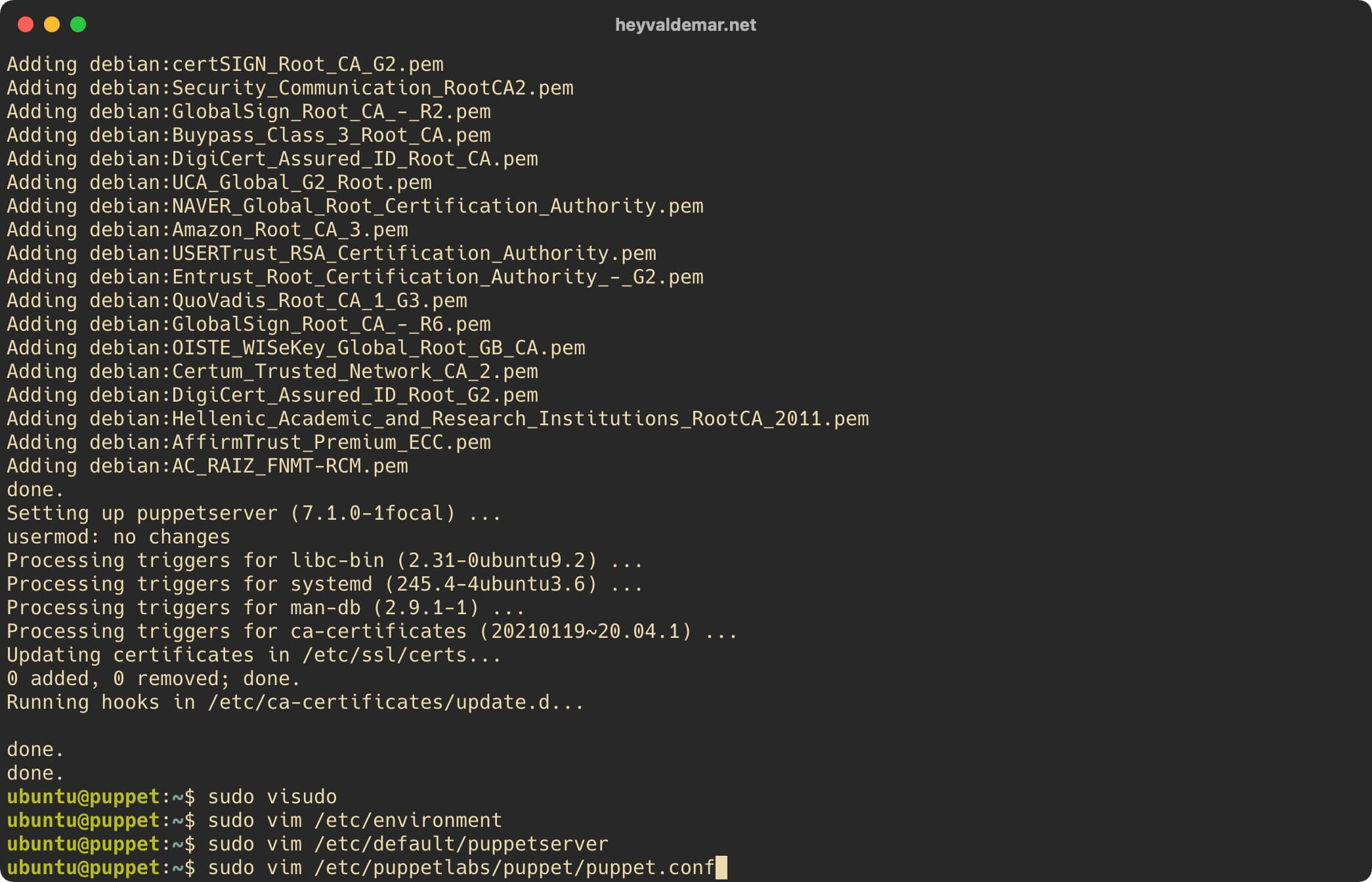

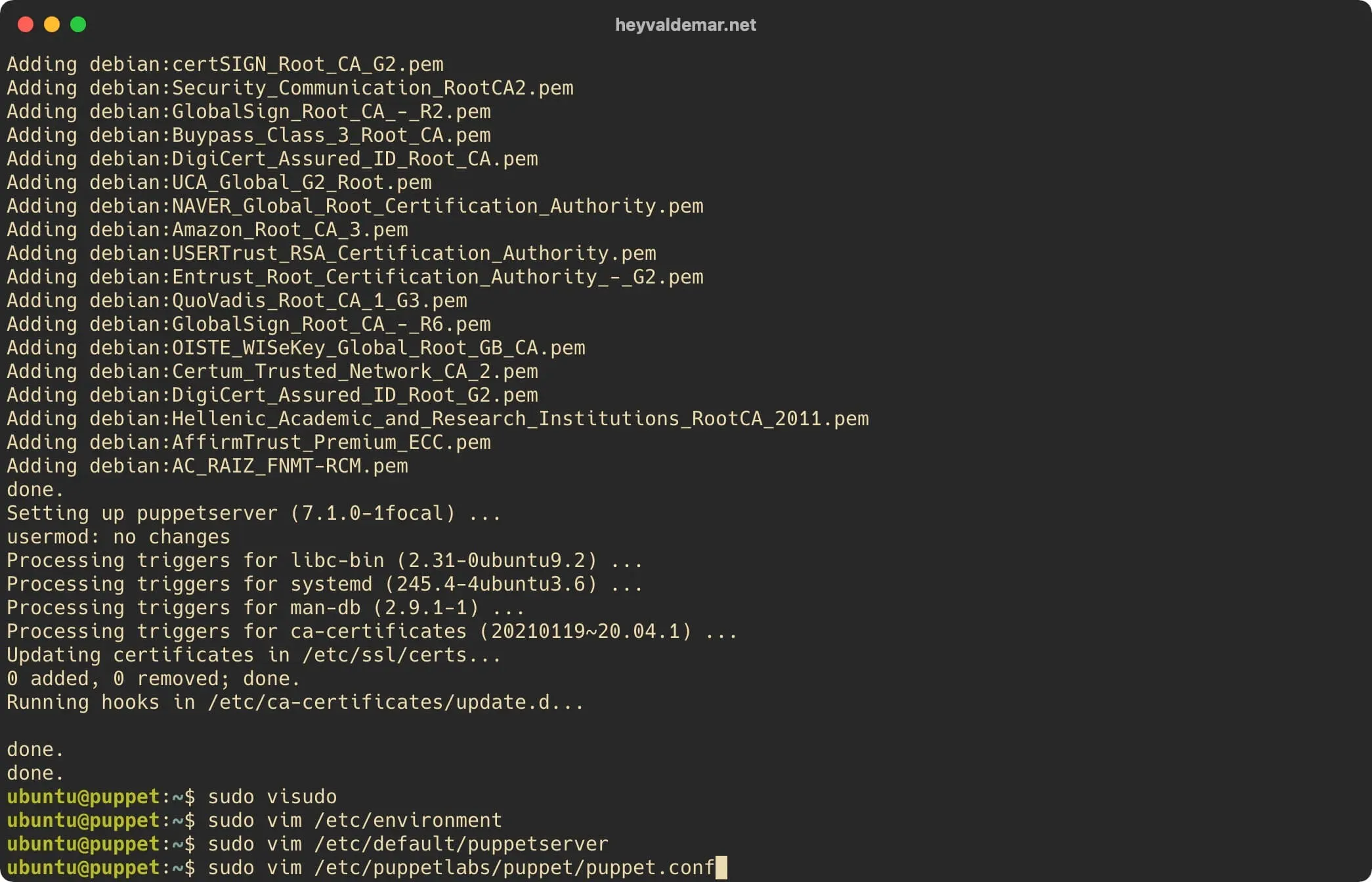

Next, you need to make changes to another Puppet configuration file by opening it in a text editor using the command:

sudo vim /etc/puppetlabs/puppet/puppet.conf

Install Puppet on Ubuntu Server

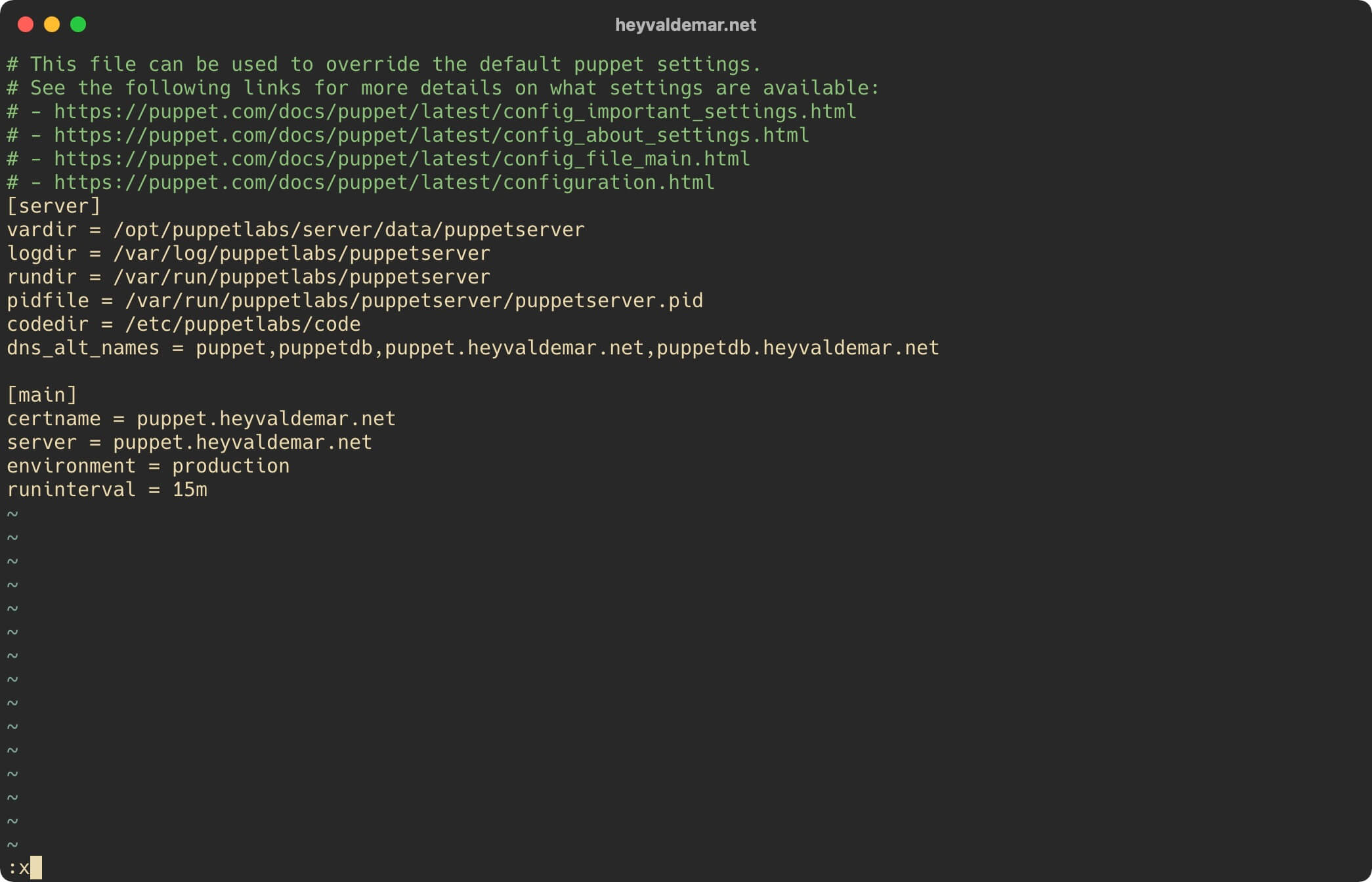

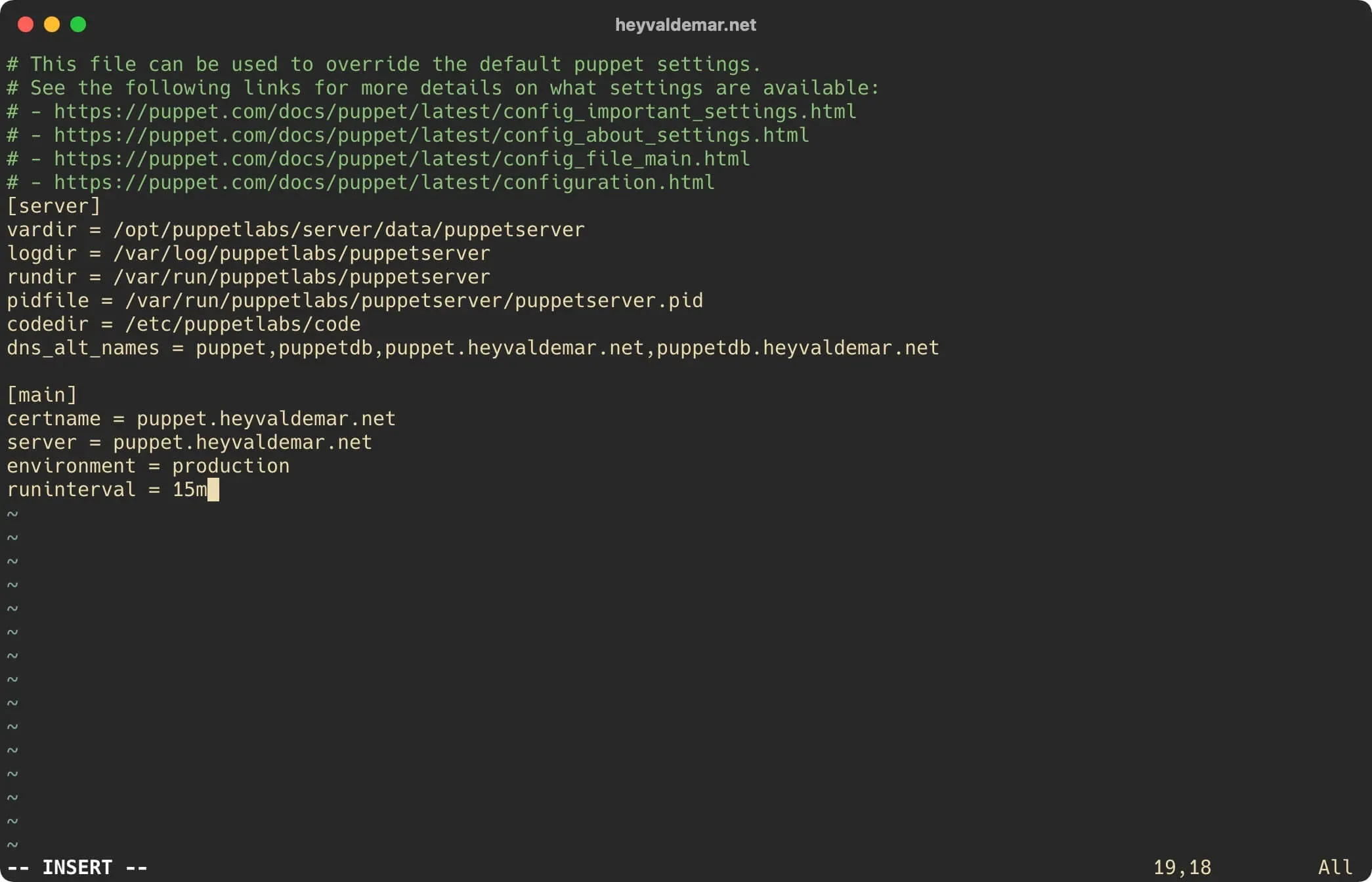

Click on the “i” button to go into edit mode, find the “[master]” section and add a new line with the alternative names of the Puppet server:

dns_alt_names = puppet,puppetdb,puppet.heyvaldemar.net,puppetdb.heyvaldemar.net

Next, add a new section “[main]” with the following parameters:

[main]
certname = puppet.heyvaldemar.net
server = puppet.heyvaldemar.net
environment = production
runinterval = 15m

In this tutorial, the Puppet Server is installed on the puppet.heyvaldemar.net server. You will need to specify your server through which your Puppet Server will be accessible from the Internet or on the local network of your organization.

Please note that the entries puppetdb and puppetdb.heyvaldemar.net will come in handy if you plan to install PuppetDB in the future. This name must also have a valid DNS record.

You can find out how to install PuppetDB on Ubuntu Server by reading “Install PuppetDB on Ubuntu Server”.

Note that the “runinterval” parameter specifies the time interval between agent requests to the Puppet server.

Install Puppet on Ubuntu Server

Now press the “Esc” button to exit edit mode, then type “:x” and press the “Enter” button to save your changes and exit the editor.

Install Puppet on Ubuntu Server

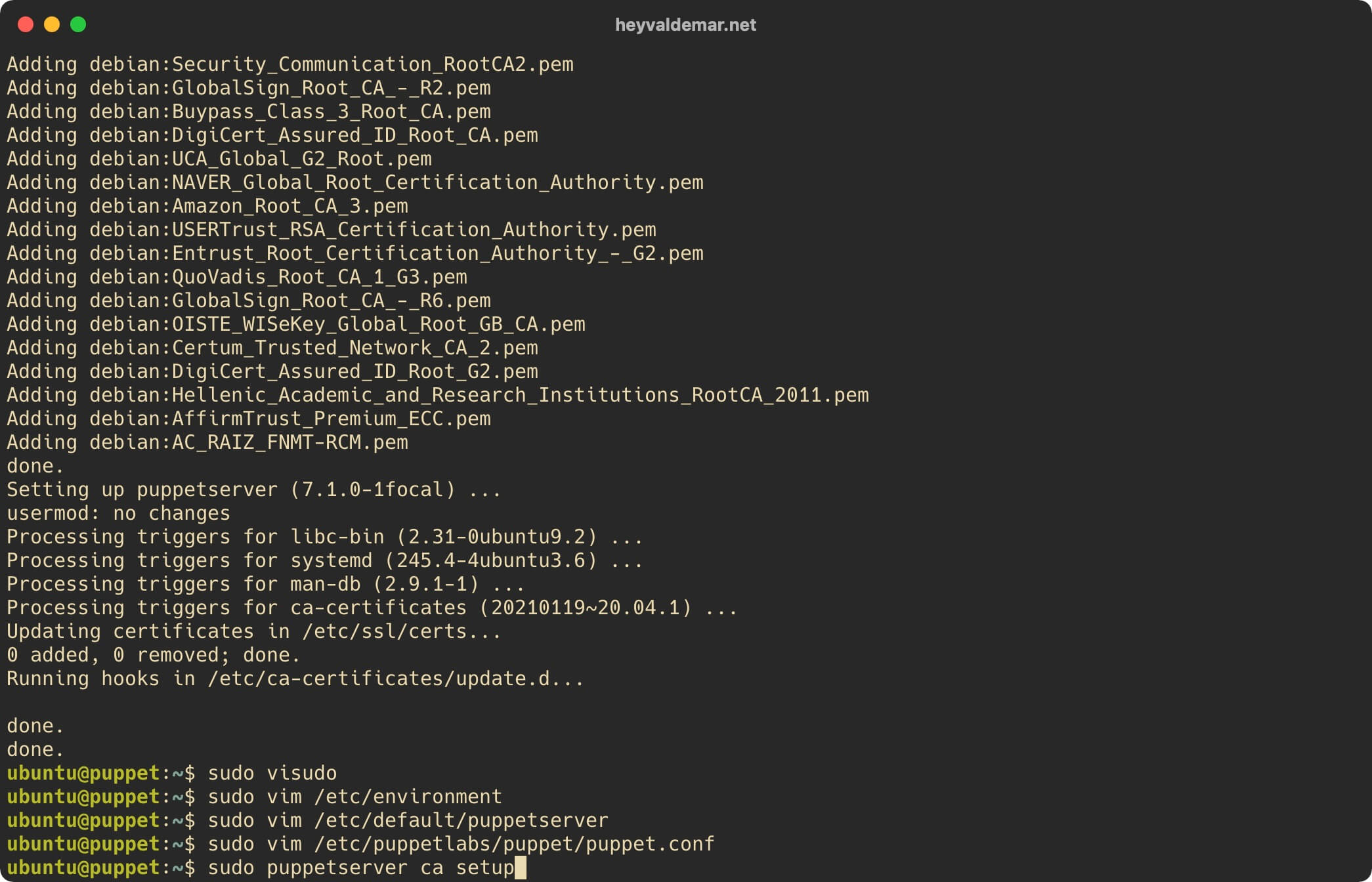

Now let’s create the root and intermediate CA signature for Puppet Server using the command:

sudo puppetserver ca setup

Install Puppet on Ubuntu Server

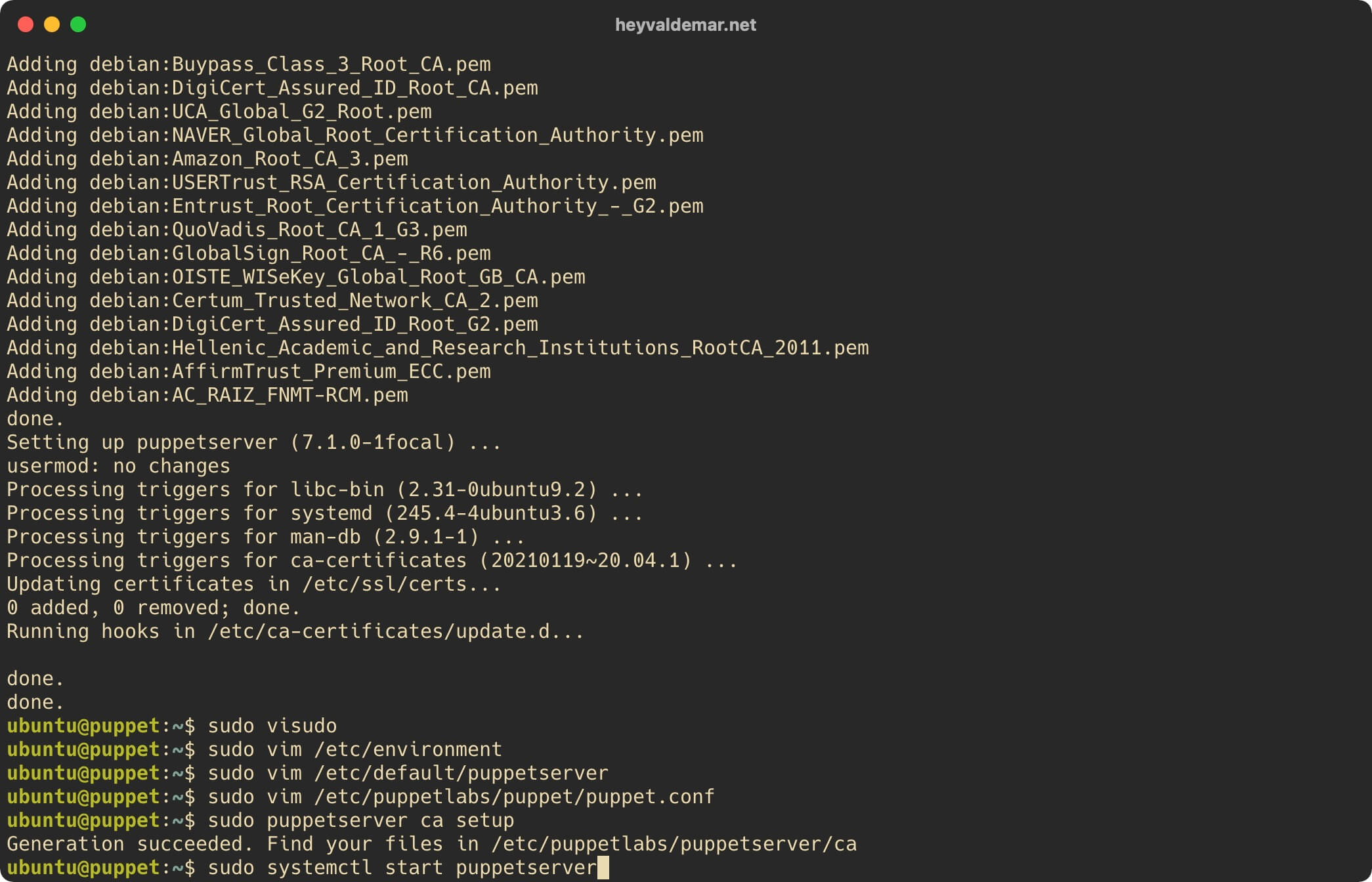

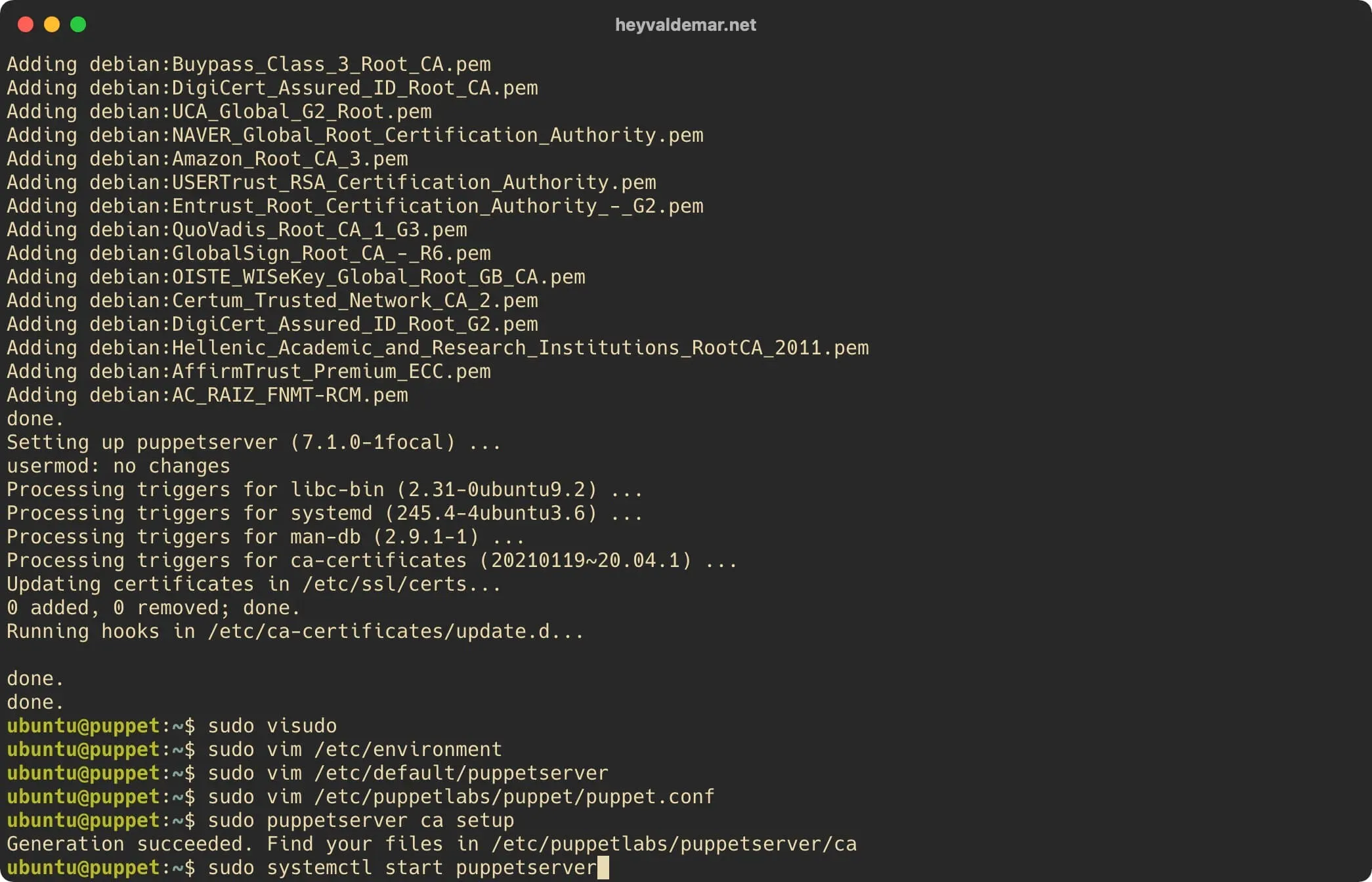

We start Puppet Server using the command:

sudo systemctl start puppetserver

Install Puppet on Ubuntu Server

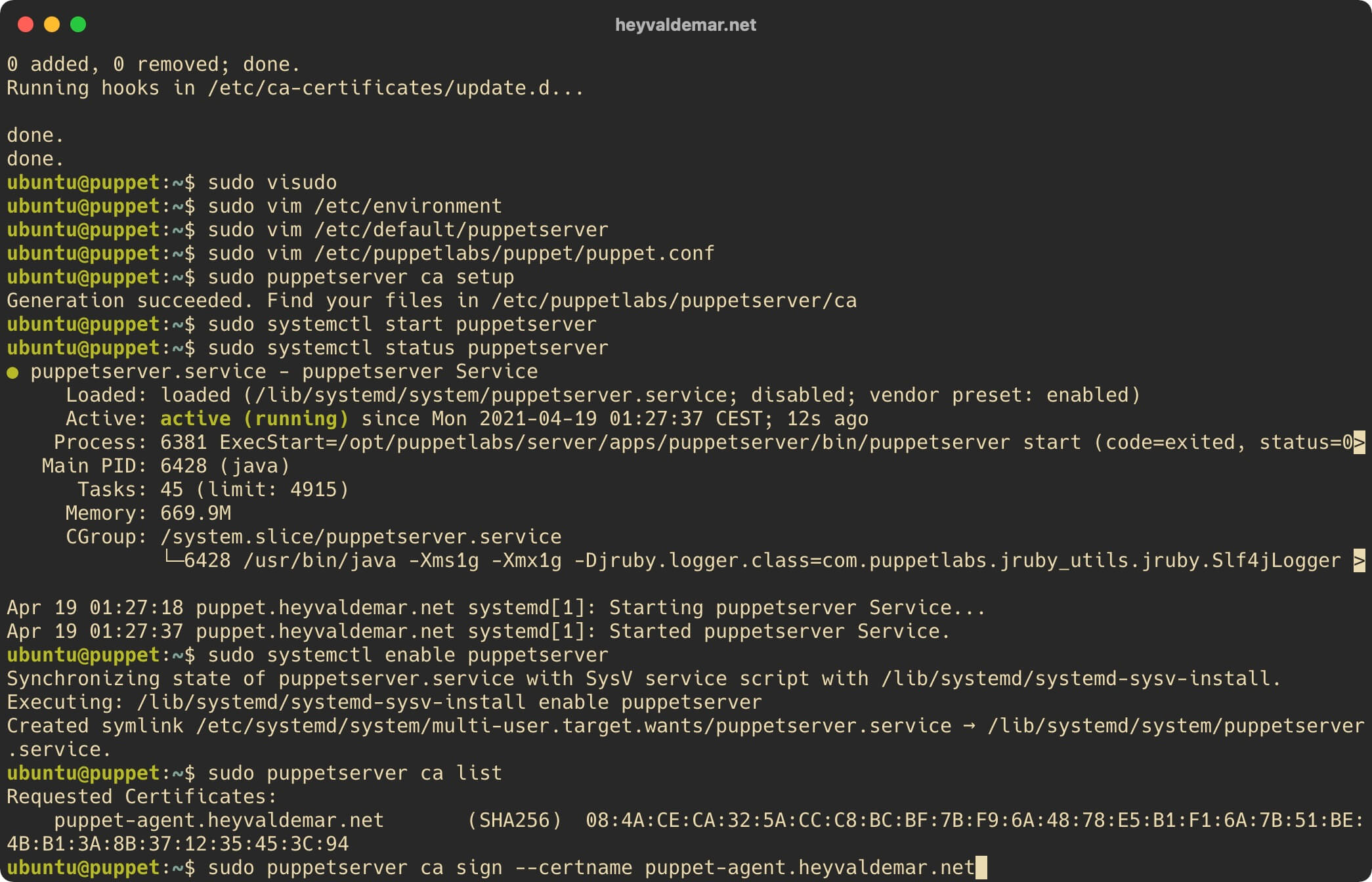

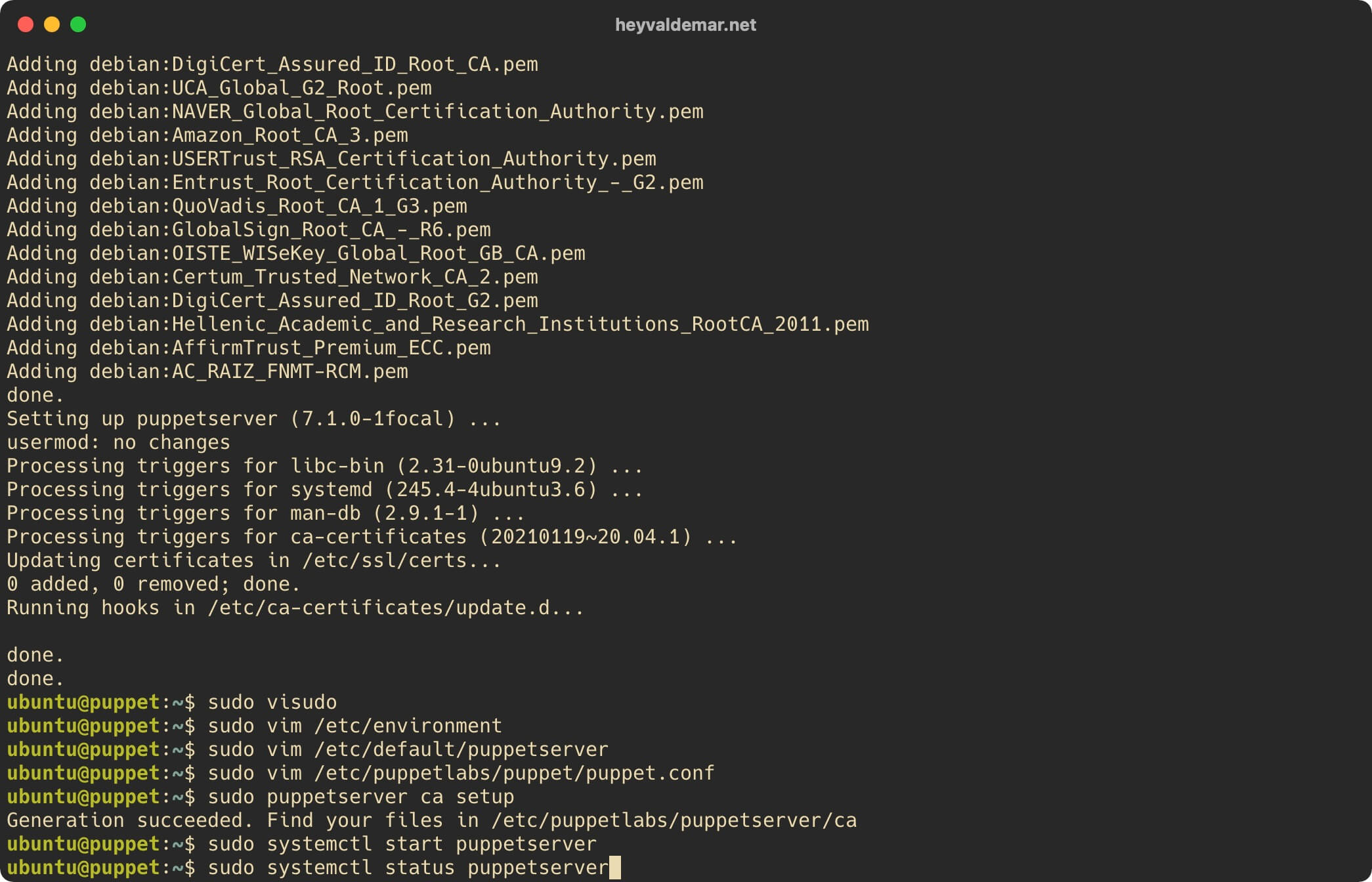

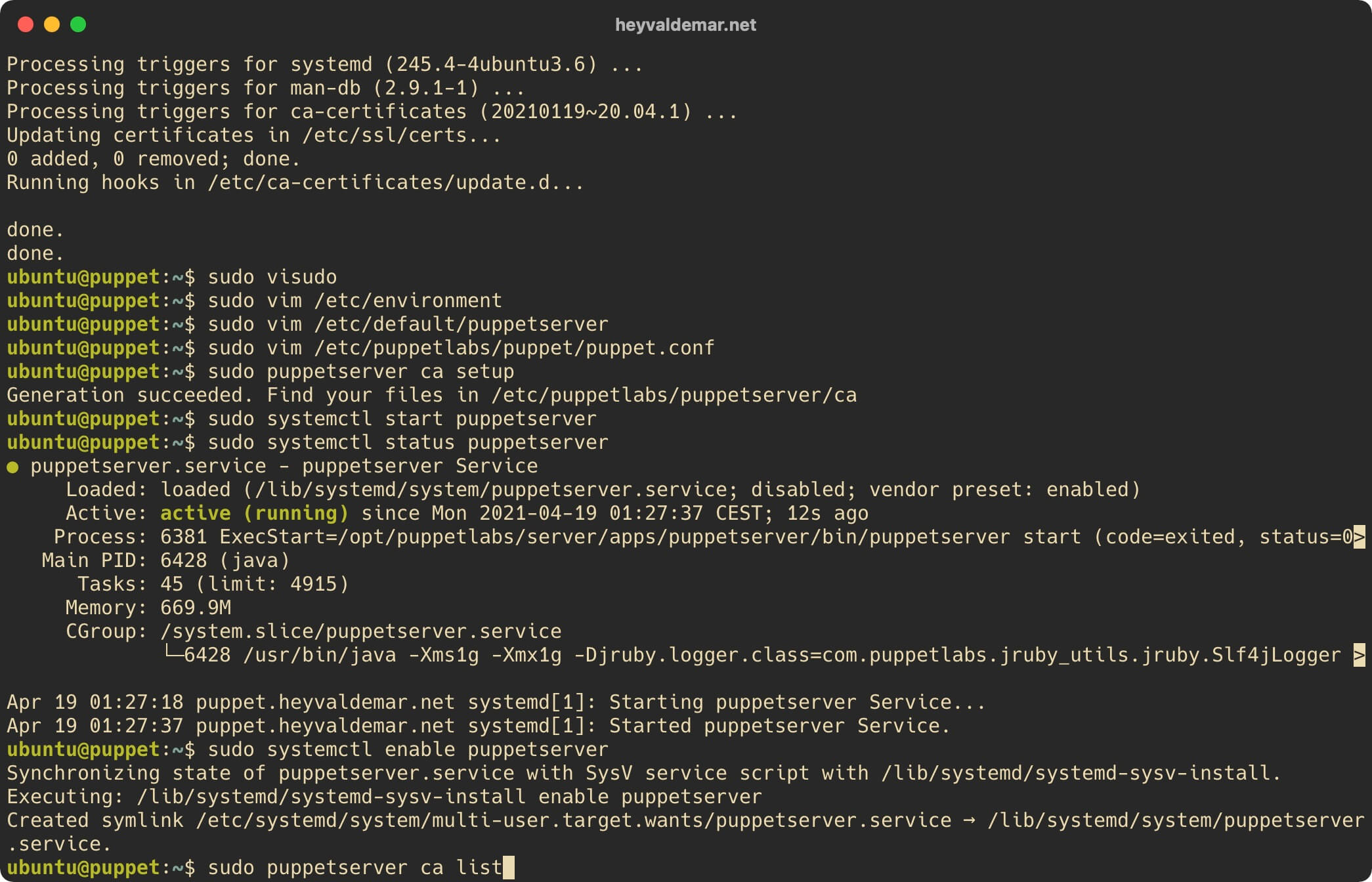

Check that Puppet Server has started successfully using the command:

sudo systemctl status puppetserver

Install Puppet on Ubuntu Server

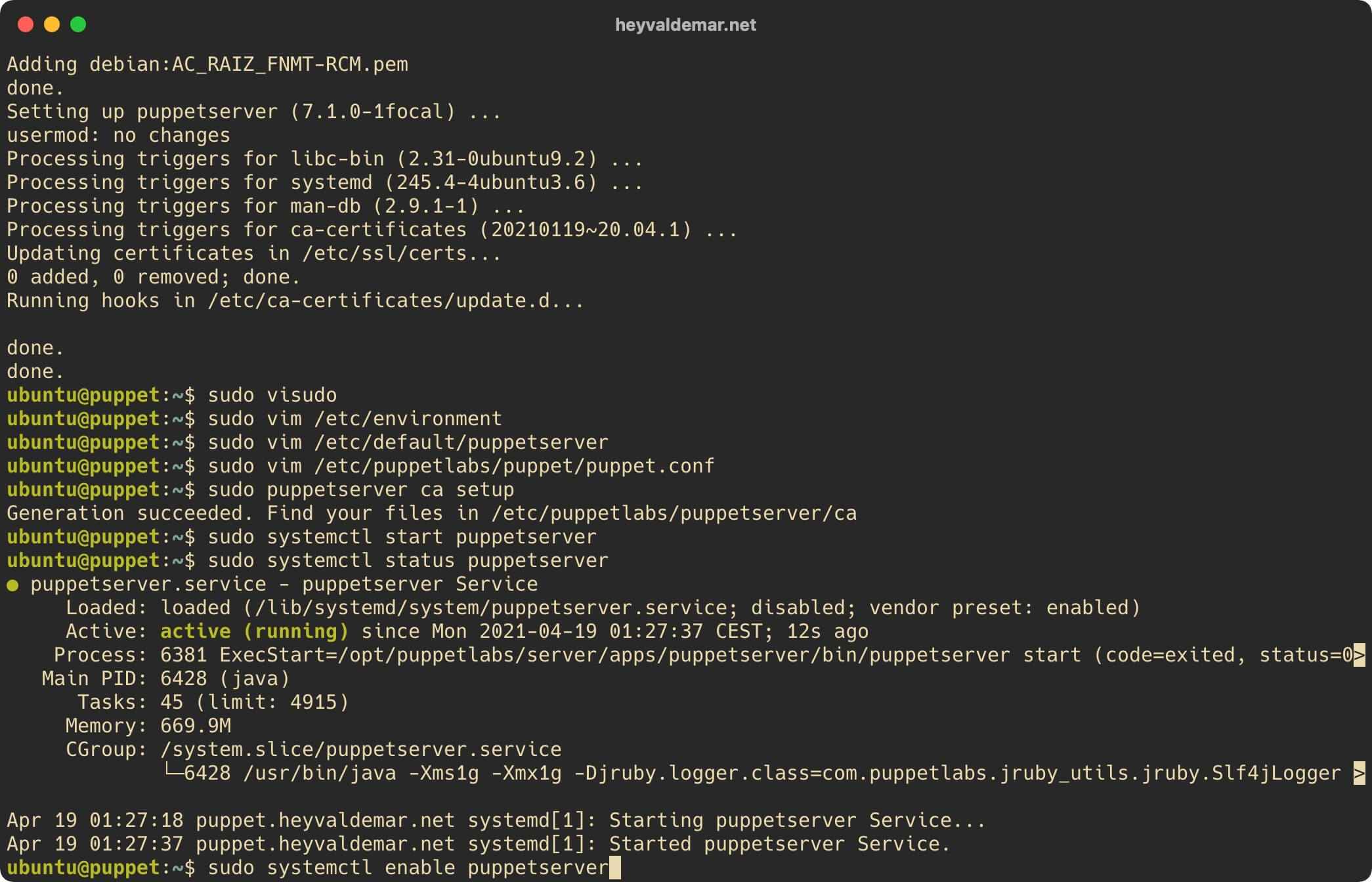

We enable Puppet Server autorun when starting the operating system using the command:

sudo systemctl enable puppetserver

Install Puppet on Ubuntu Server

Next, we connect to the server on which you plan to install Puppet Agent.

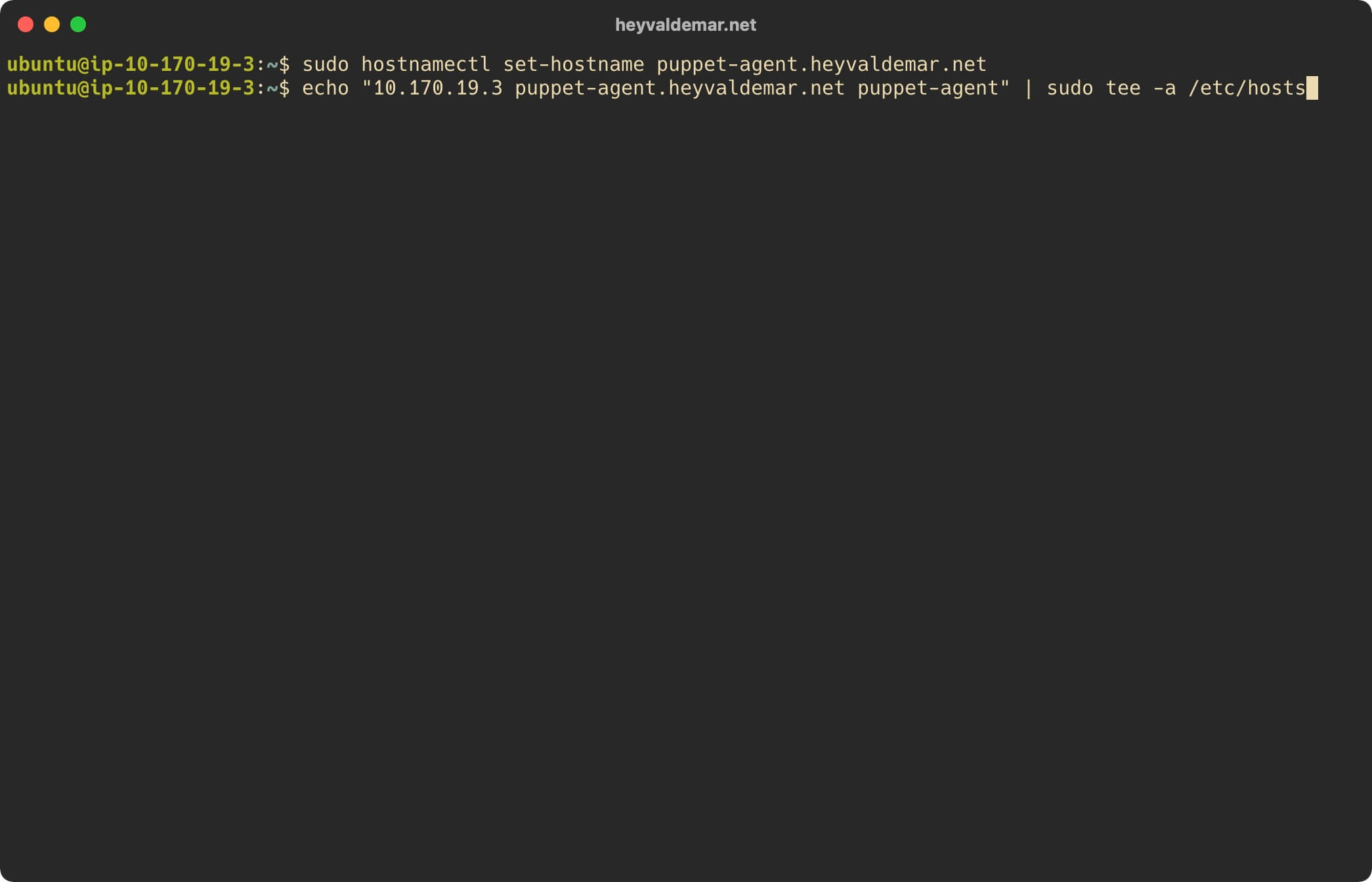

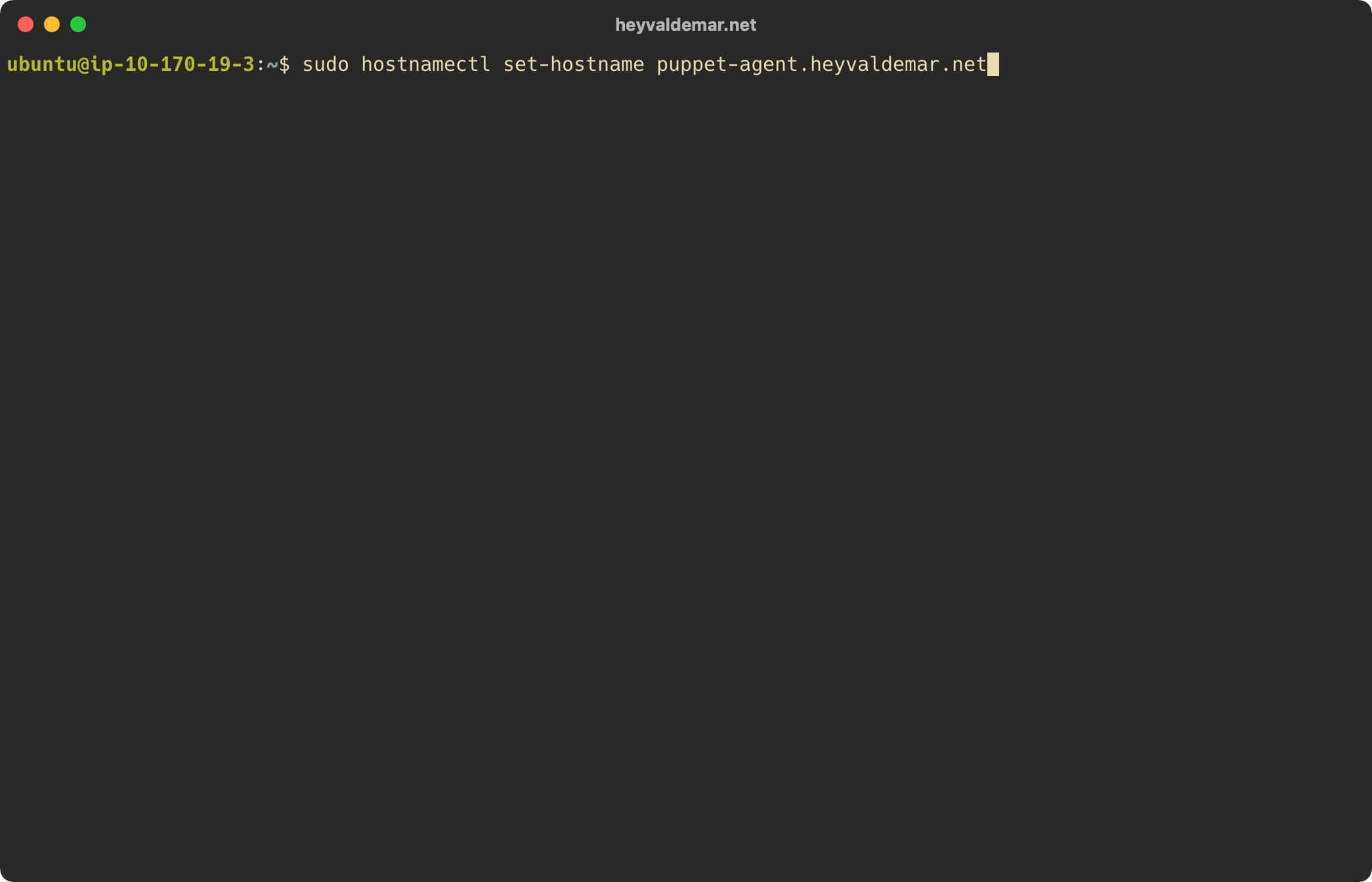

Let’s name the server using the command:

sudo hostnamectl set-hostname puppet-agent.heyvaldemar.net

This tutorial uses “puppet-agent.heyvaldemar.net” as the name of the server with the Puppet agent installed.

Install Puppet on Ubuntu Server

The server with the agent installed must resolve the name of the Puppet server and also the Puppet server must resolve the name of the client-server.

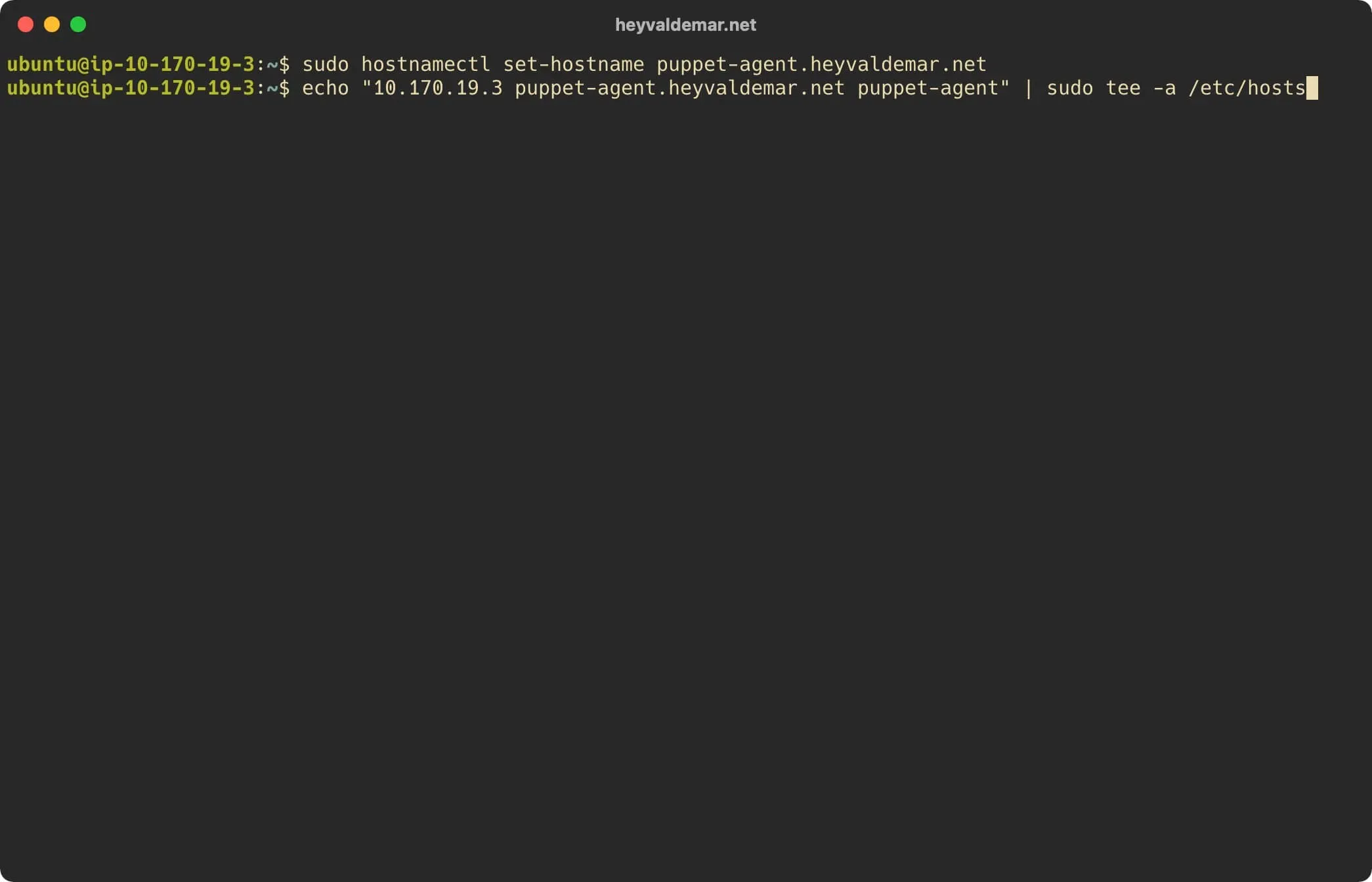

Make sure the server name has the correct DNS entry and also update the “/etc/hosts” file with the IP address and client-server name using the command:

echo "10.170.19.3 puppet-agent.heyvaldemar.net puppet-agent" | sudo tee -a /etc/hosts

This tutorial uses “puppet-agent.heyvaldemar.net” as the name of the server with the Puppet agent installed.

Install Puppet on Ubuntu Server

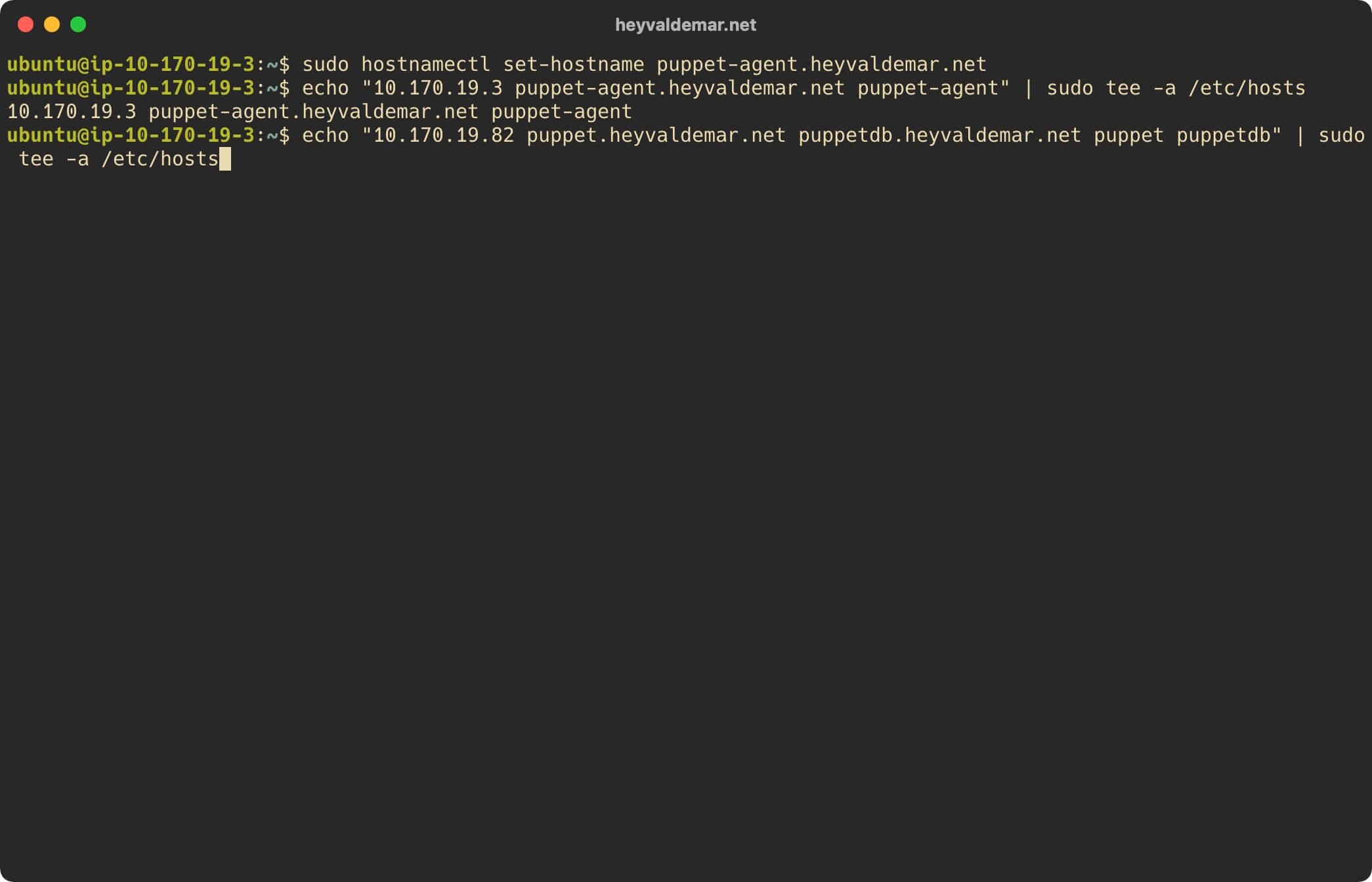

Next, add the IP address and the name of the Puppet server to the “/etc/hosts” file using the command:

echo "10.170.19.82 puppet.heyvaldemar.net puppetdb.heyvaldemar.net puppet puppetdb" | sudo tee -a /etc/hosts

Having this record will allow the server with the agent installed to resolve the Puppet server name even without a DNS record.

Please note that the entry puppetdb.heyvaldemar.net is useful if you plan to install PuppetDB in the future. This name must also have a valid DNS record.

You can find out how to install PuppetDB on Ubuntu Server by reading “Install PuppetDB on Ubuntu Server”.

Install Puppet on Ubuntu Server

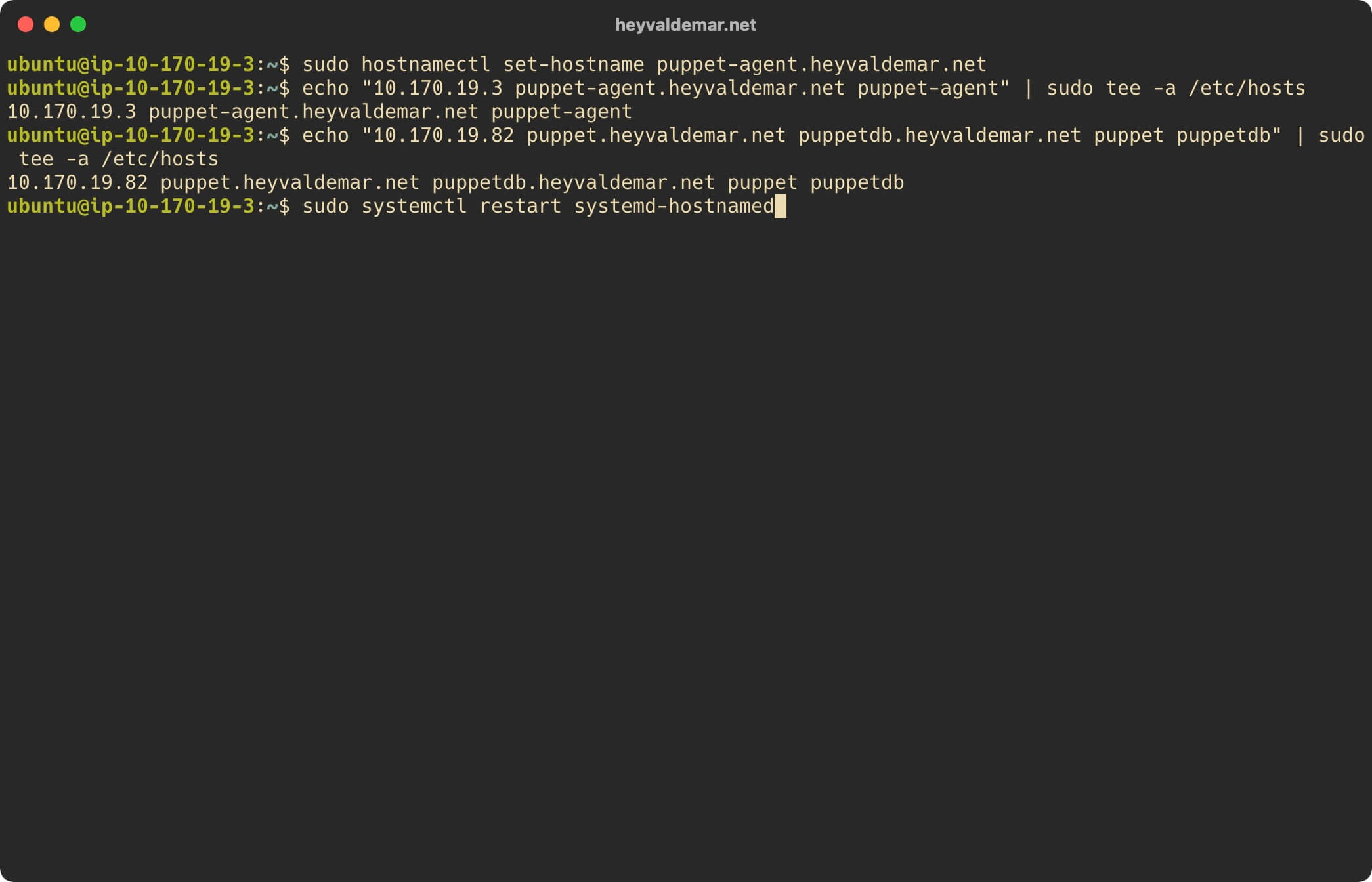

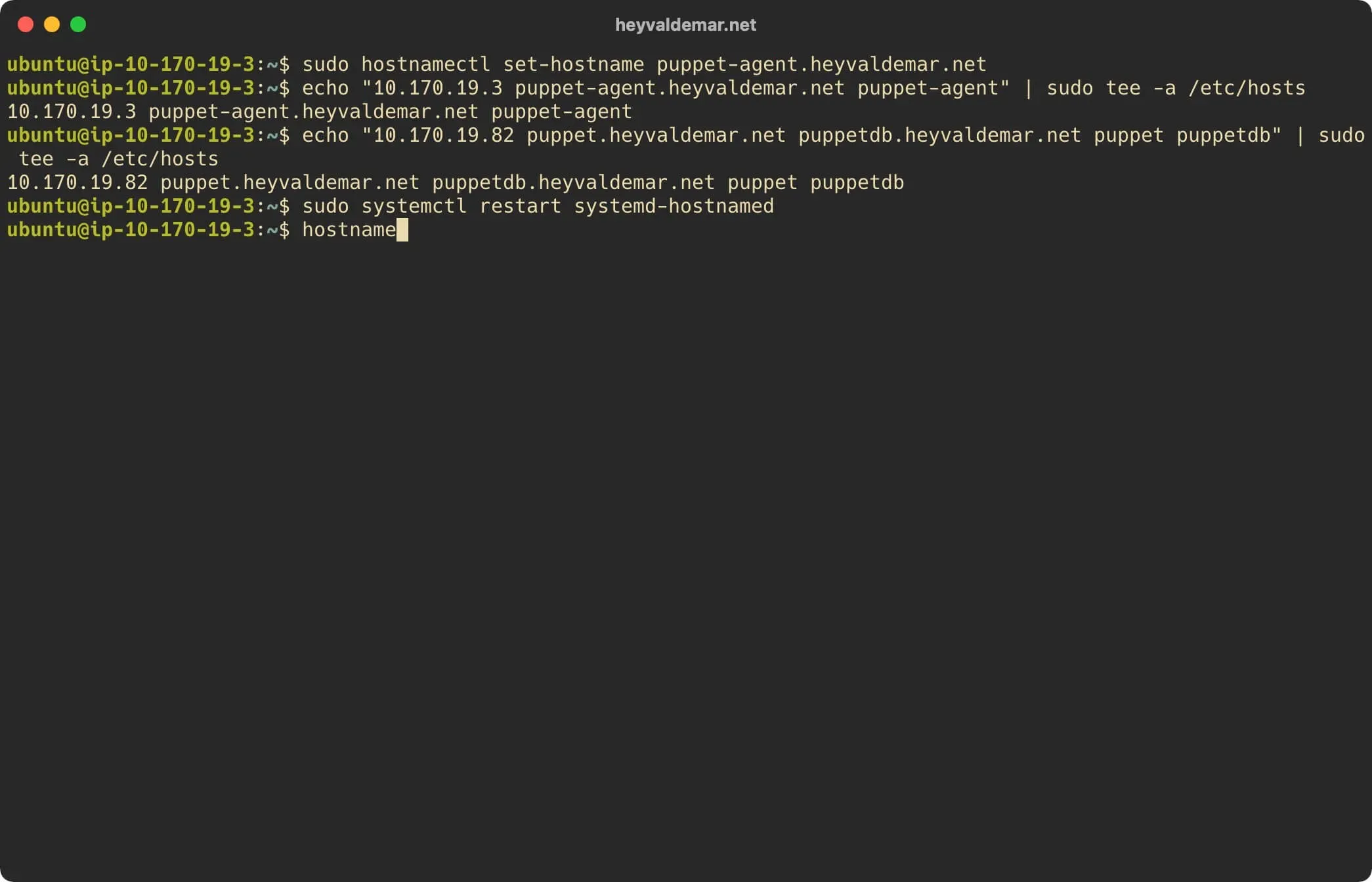

Restart the hostamed service for the changes to the server name to take effect using the command:

sudo systemctl restart systemd-hostnamed

Install Puppet on Ubuntu Server

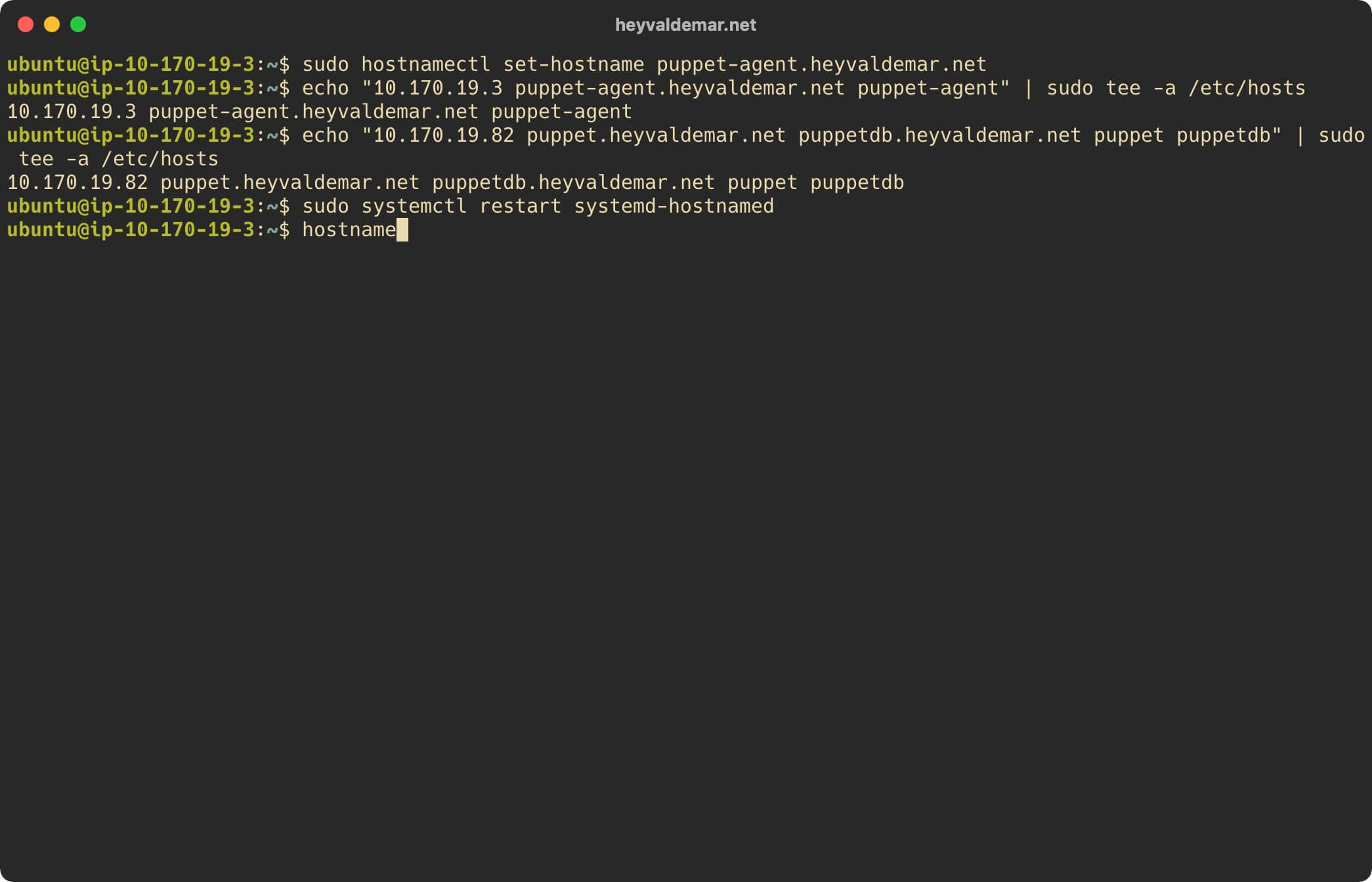

Let’s check the correctness of the server name using the command:

hostname

Install Puppet on Ubuntu Server

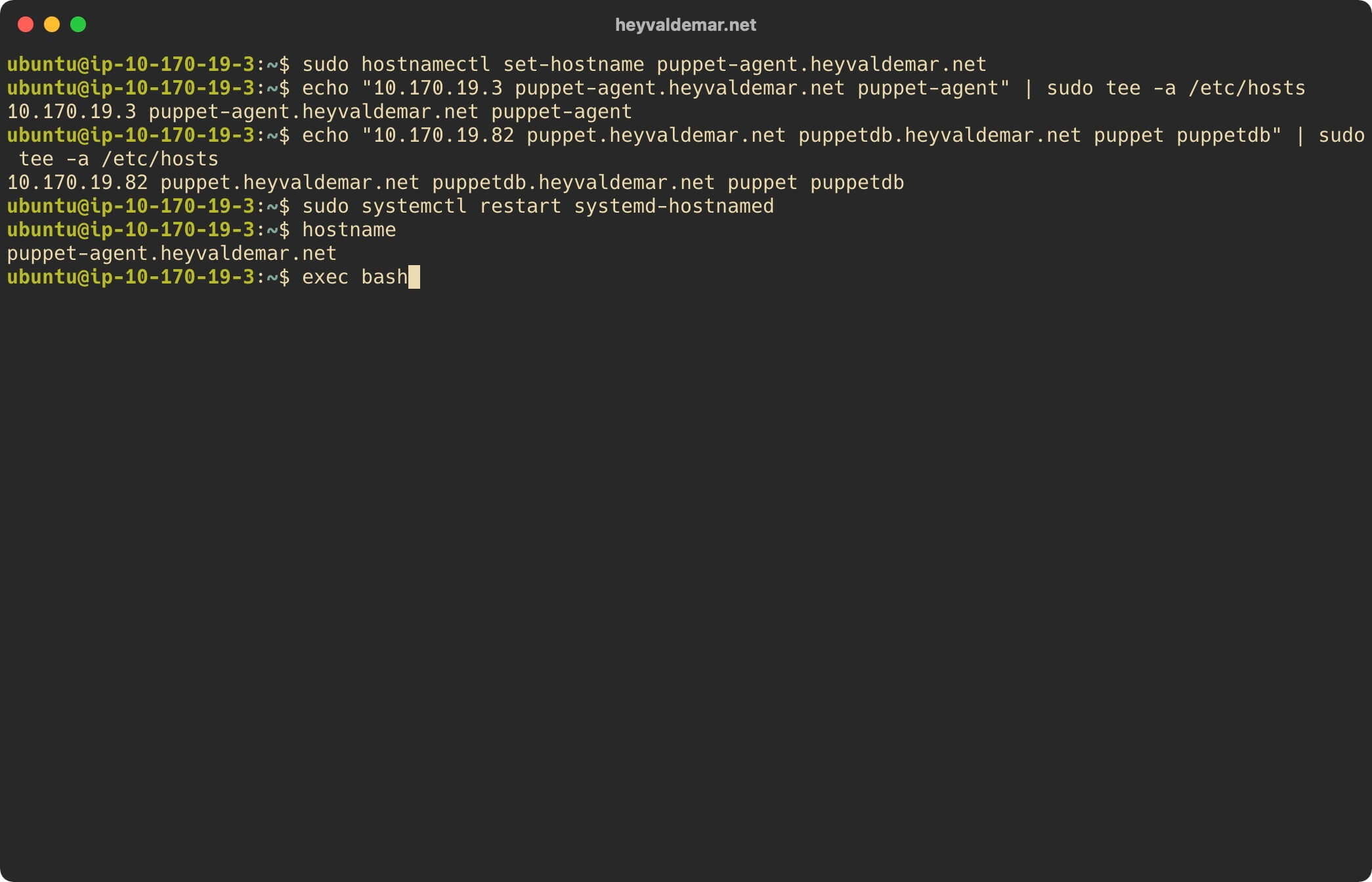

Now let’s replace the current shell process with a new one using the command:

exec bash

Install Puppet on Ubuntu Server

The correct time must be set on the server with Puppet Agent.

To set the time correctly, you will need to install the NTP package and synchronize the time with the upstream NTP servers.

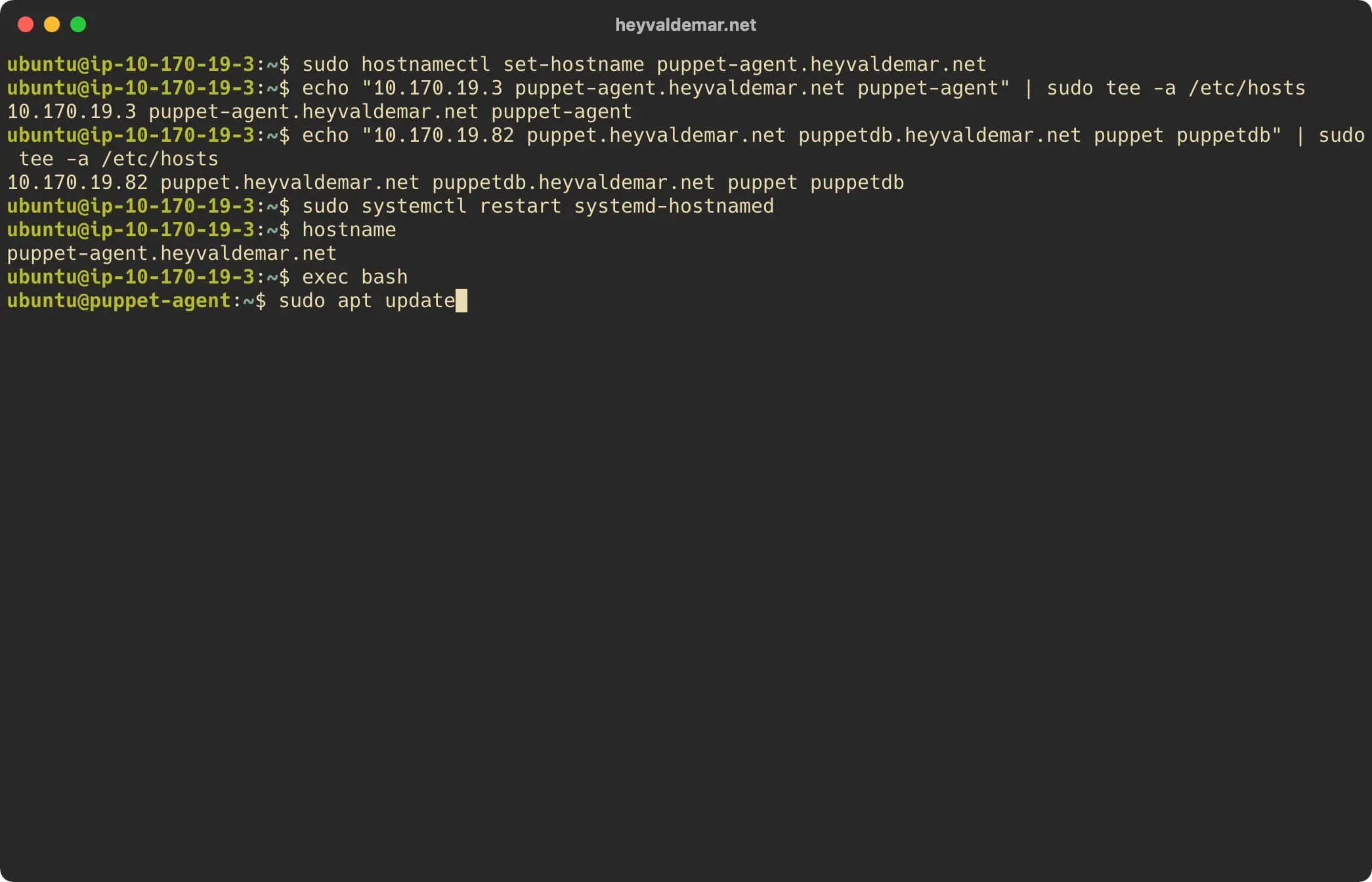

Update the local package index to the latest changes in the repositories using the command:

sudo apt update

Install Puppet on Ubuntu Server

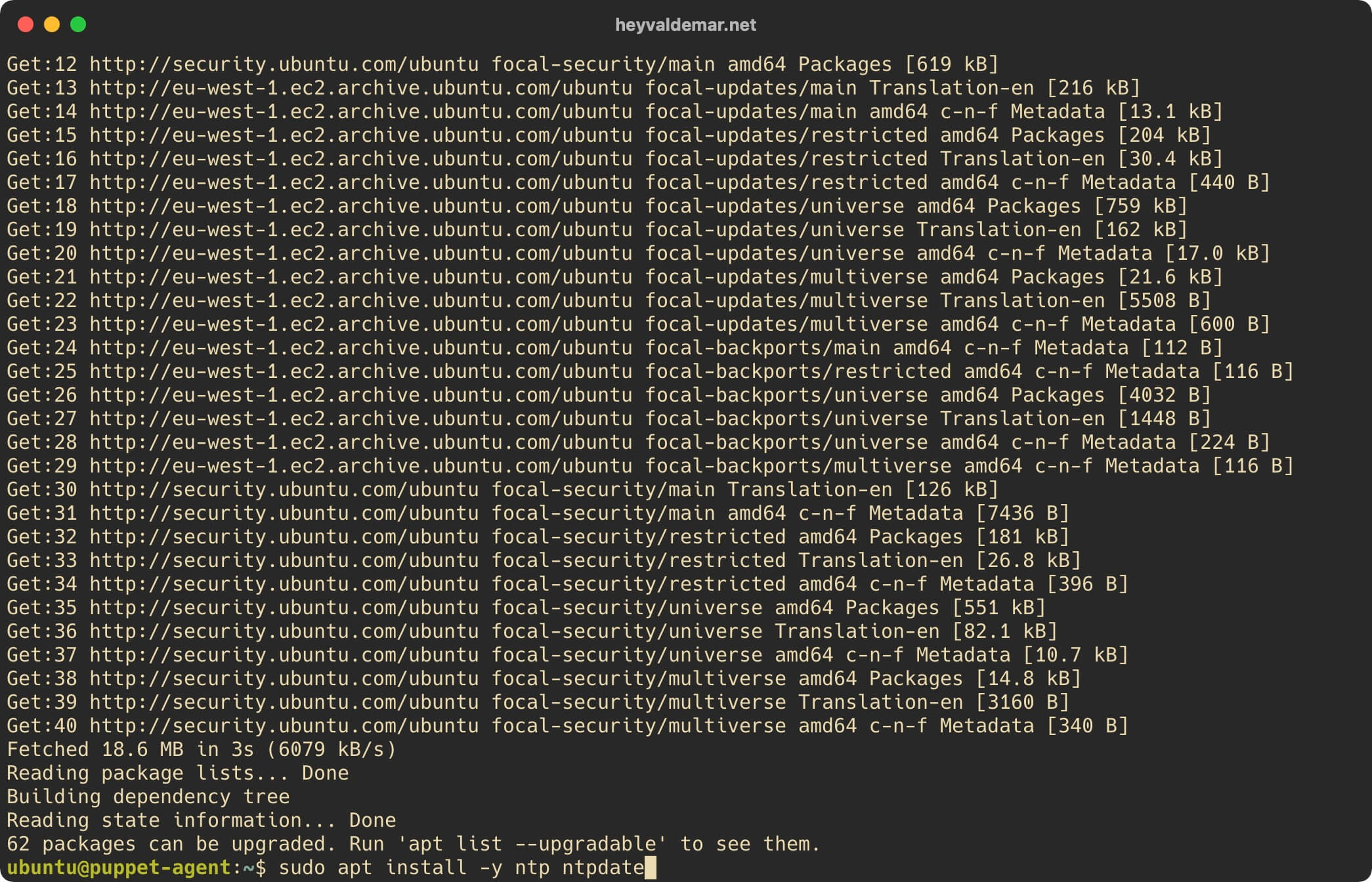

Install NTP and ntpdate using the command:

sudo apt install -y ntp ntpdate

Please note that ntpdate allows you to manually check the configuration of your connection to the NTP server.

Install Puppet on Ubuntu Server

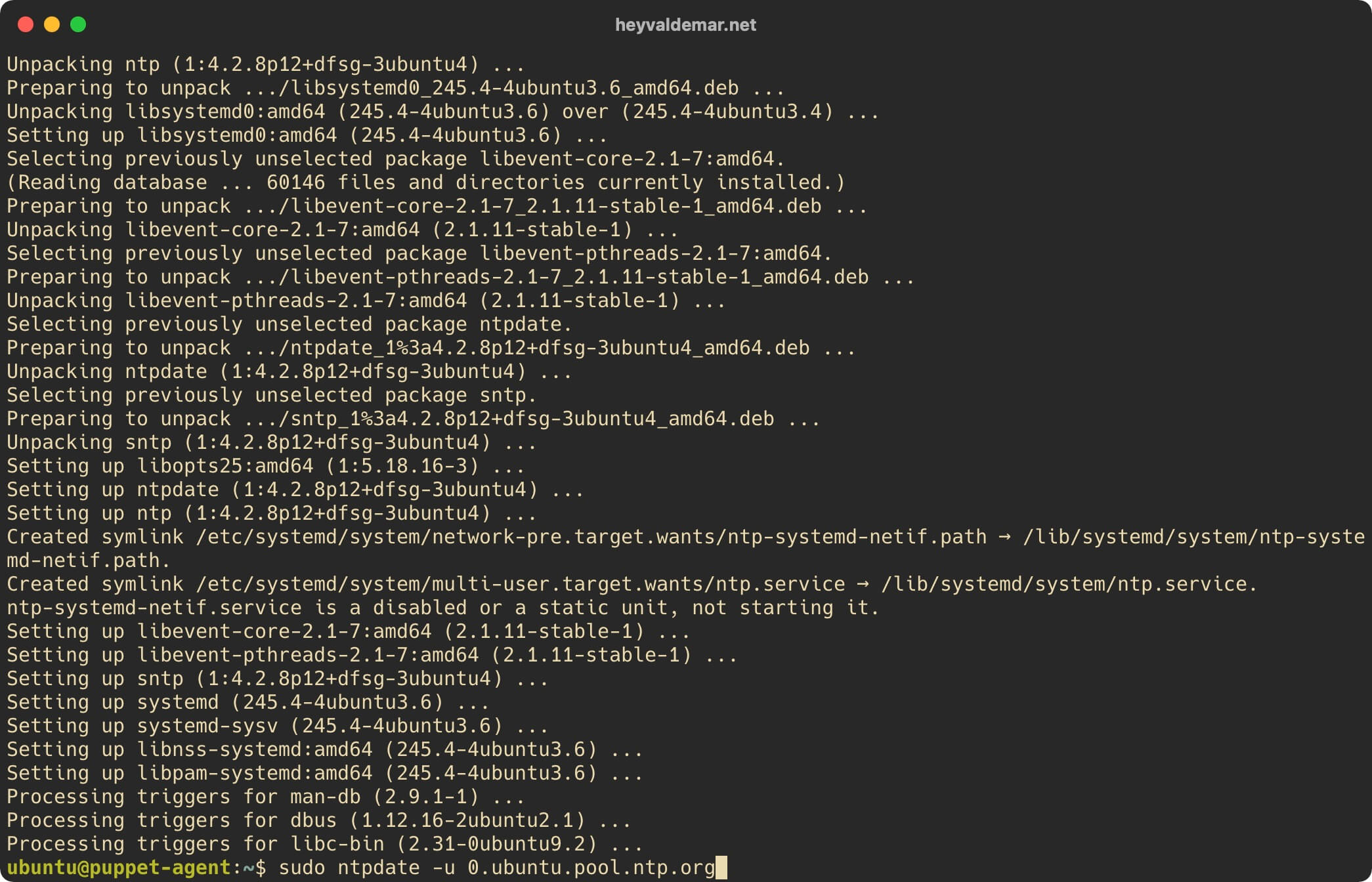

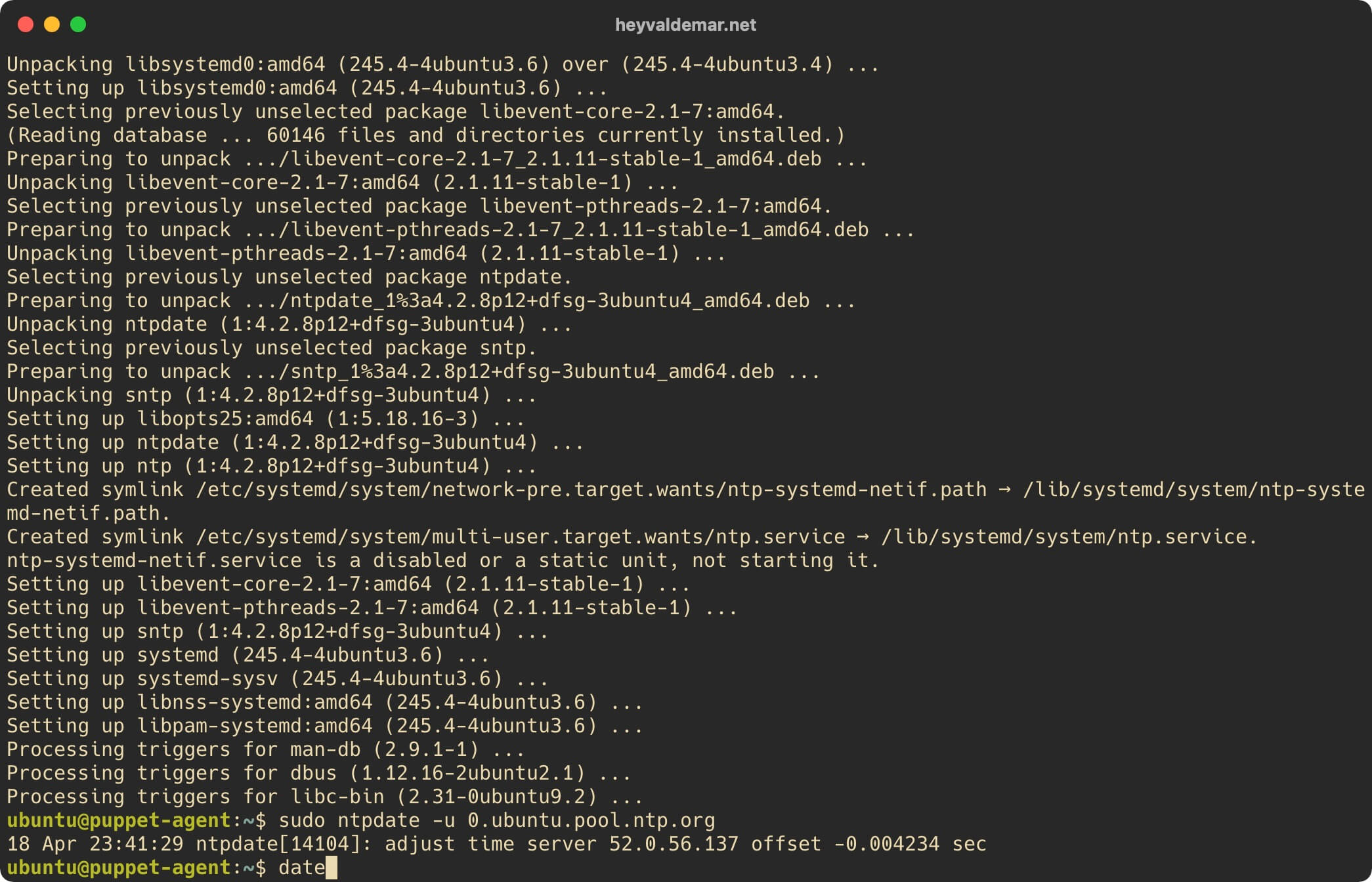

Synchronize time with upstream NTP servers using the command:

sudo ntpdate -u 0.ubuntu.pool.ntp.org

Install Puppet on Ubuntu Server

Let’s check the correctness of the date and time on the server using the command:

date

Please note that this tutorial is based on a server located in Berlin.

Install Puppet on Ubuntu Server

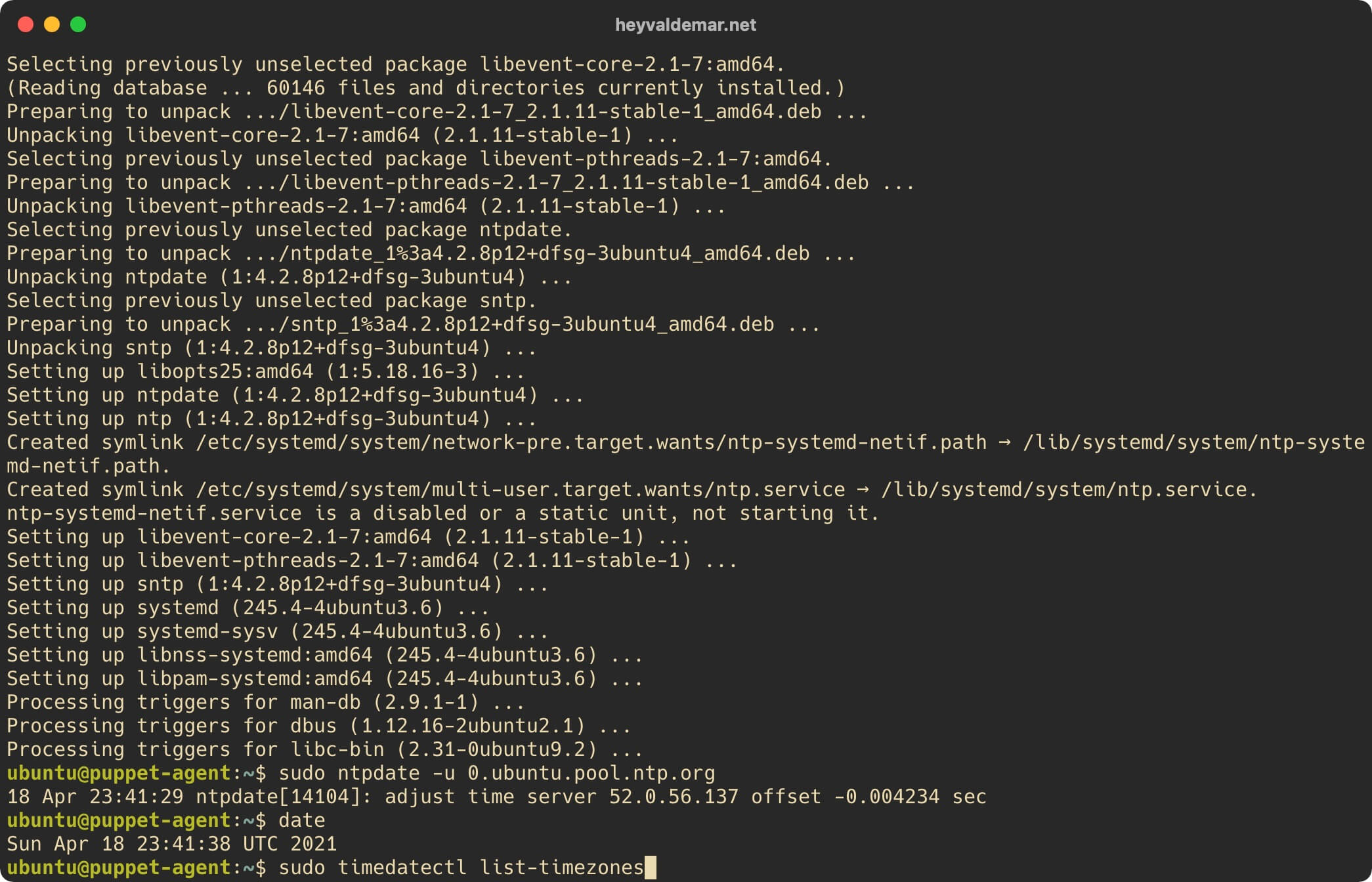

Let’s see a list of time zone values for all locations using the command:

sudo timedatectl list-timezones

Install Puppet on Ubuntu Server

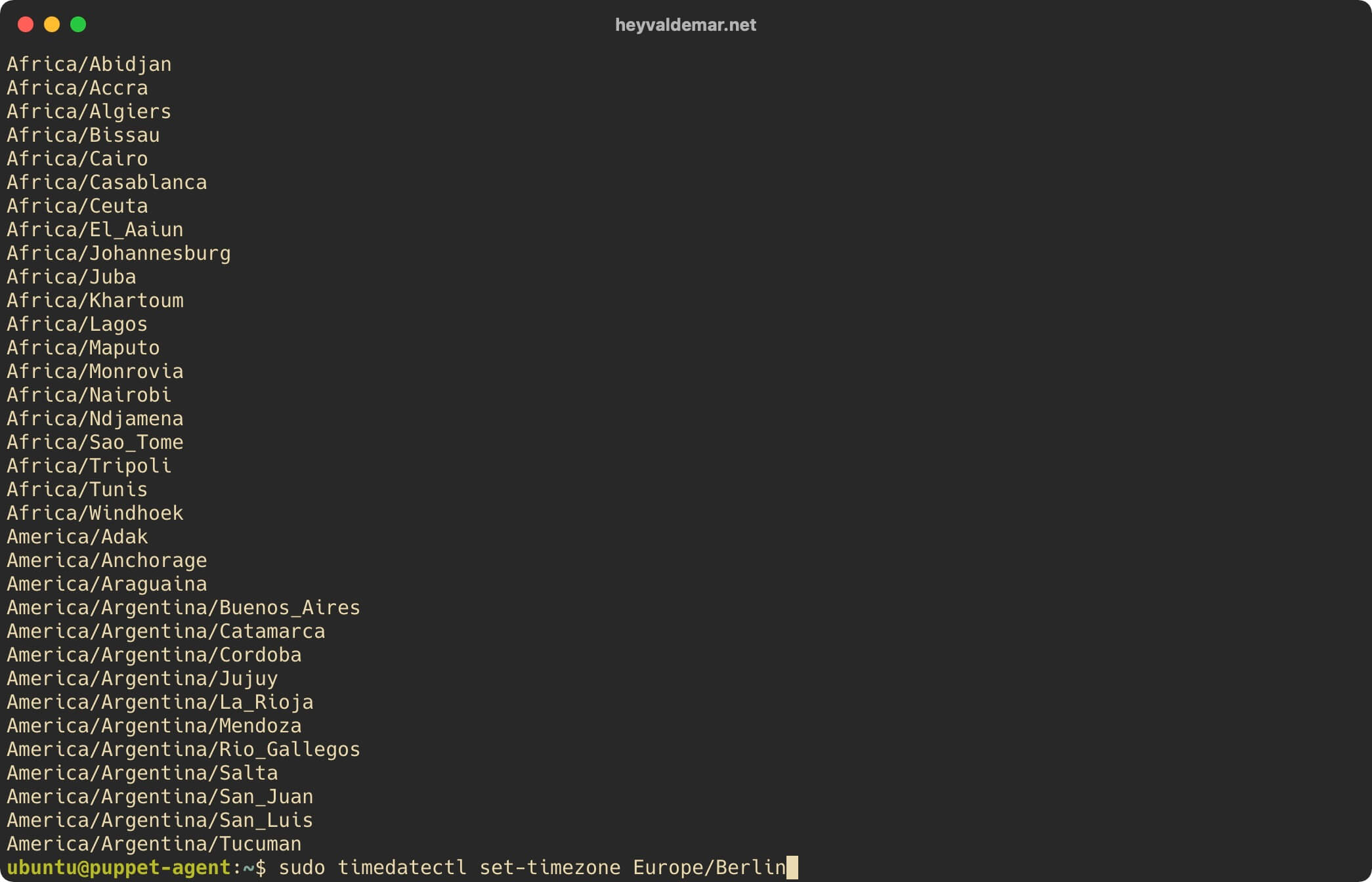

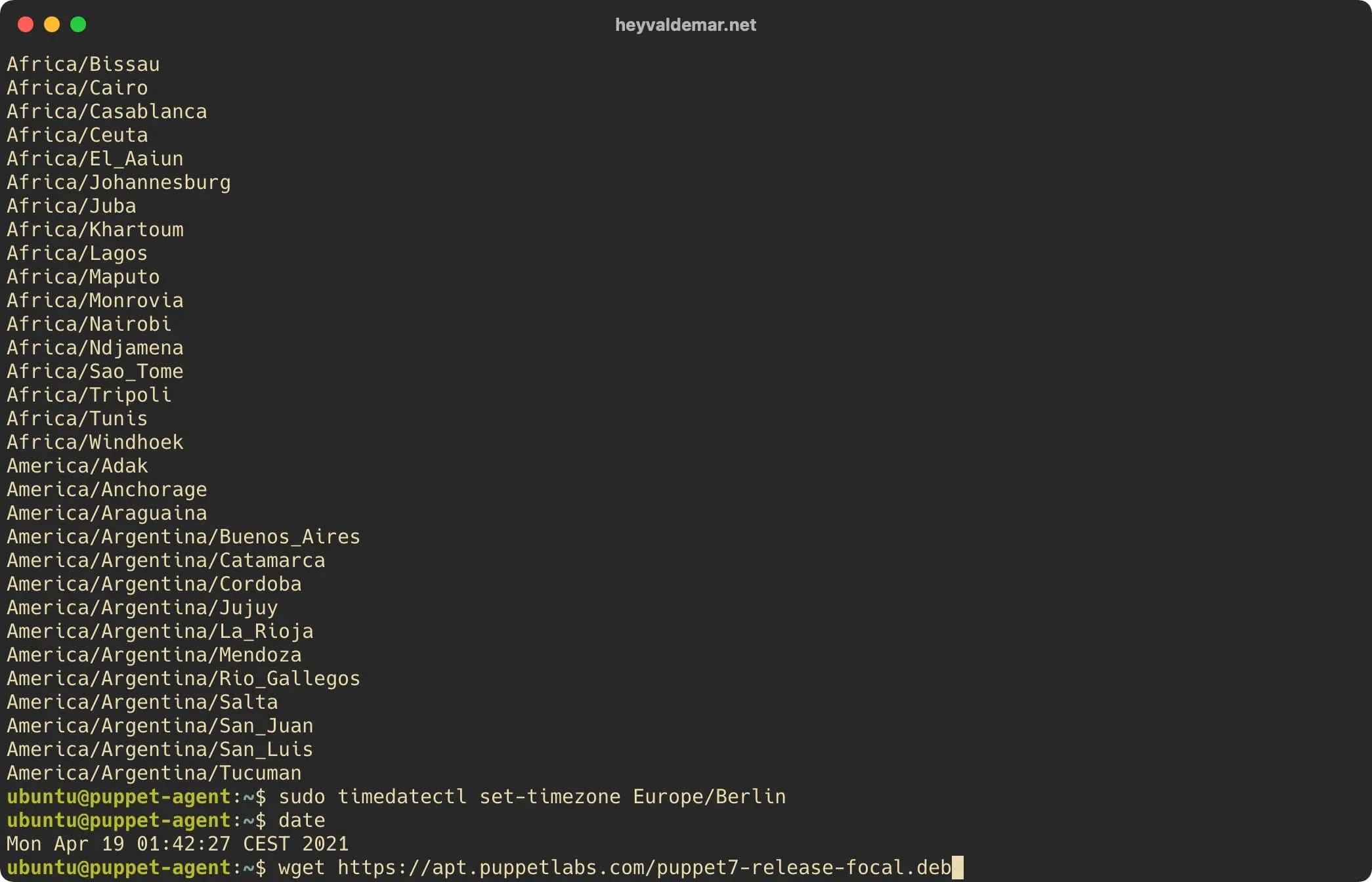

We select the value suitable for your location and change the time zone using the command:

sudo timedatectl set-timezone Europe/Berlin

Please note that this tutorial is based on a server located in Berlin.

Install Puppet on Ubuntu Server

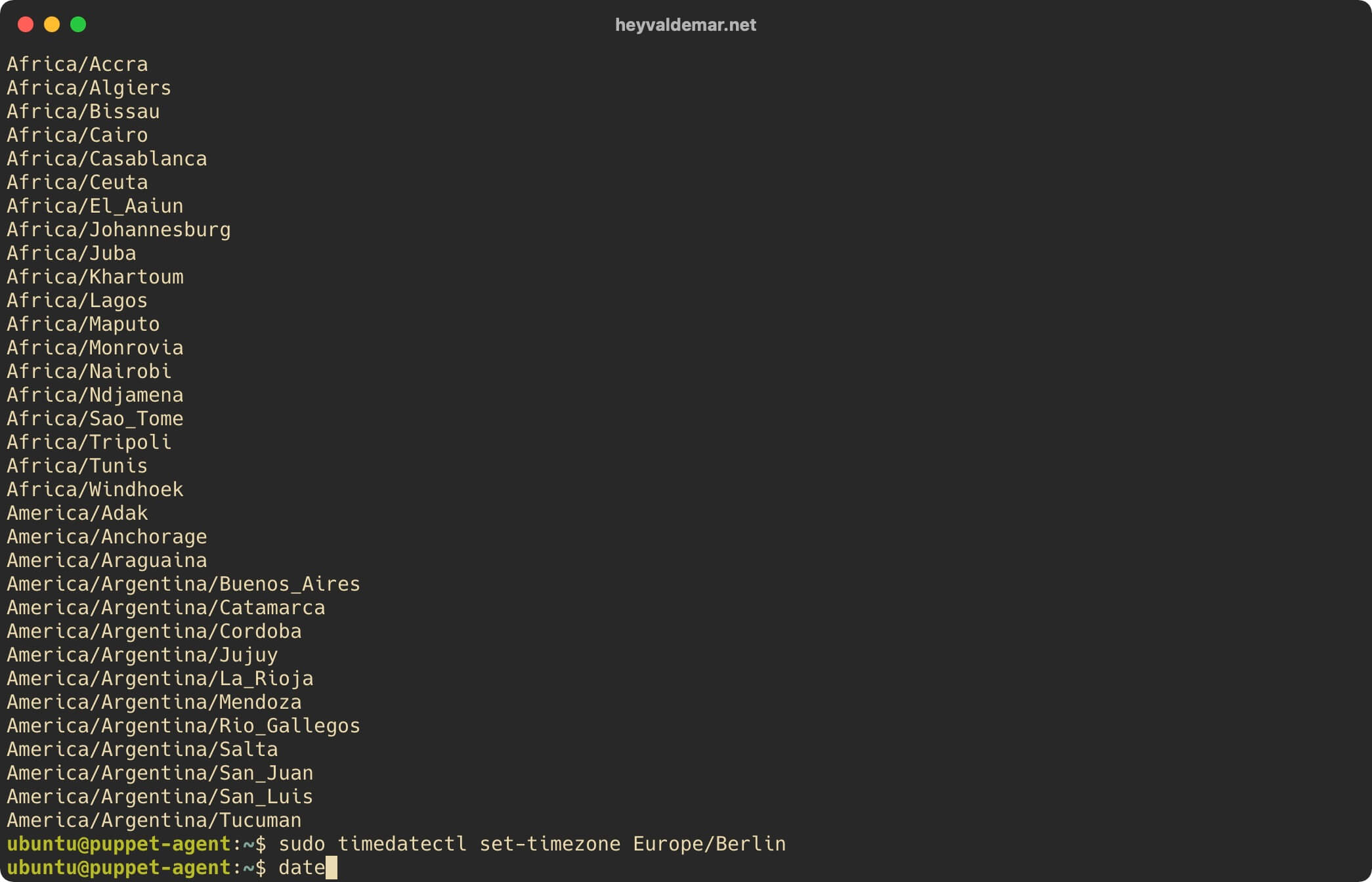

We again check the correctness of the date and time on the server using the command:

date

Install Puppet on Ubuntu Server

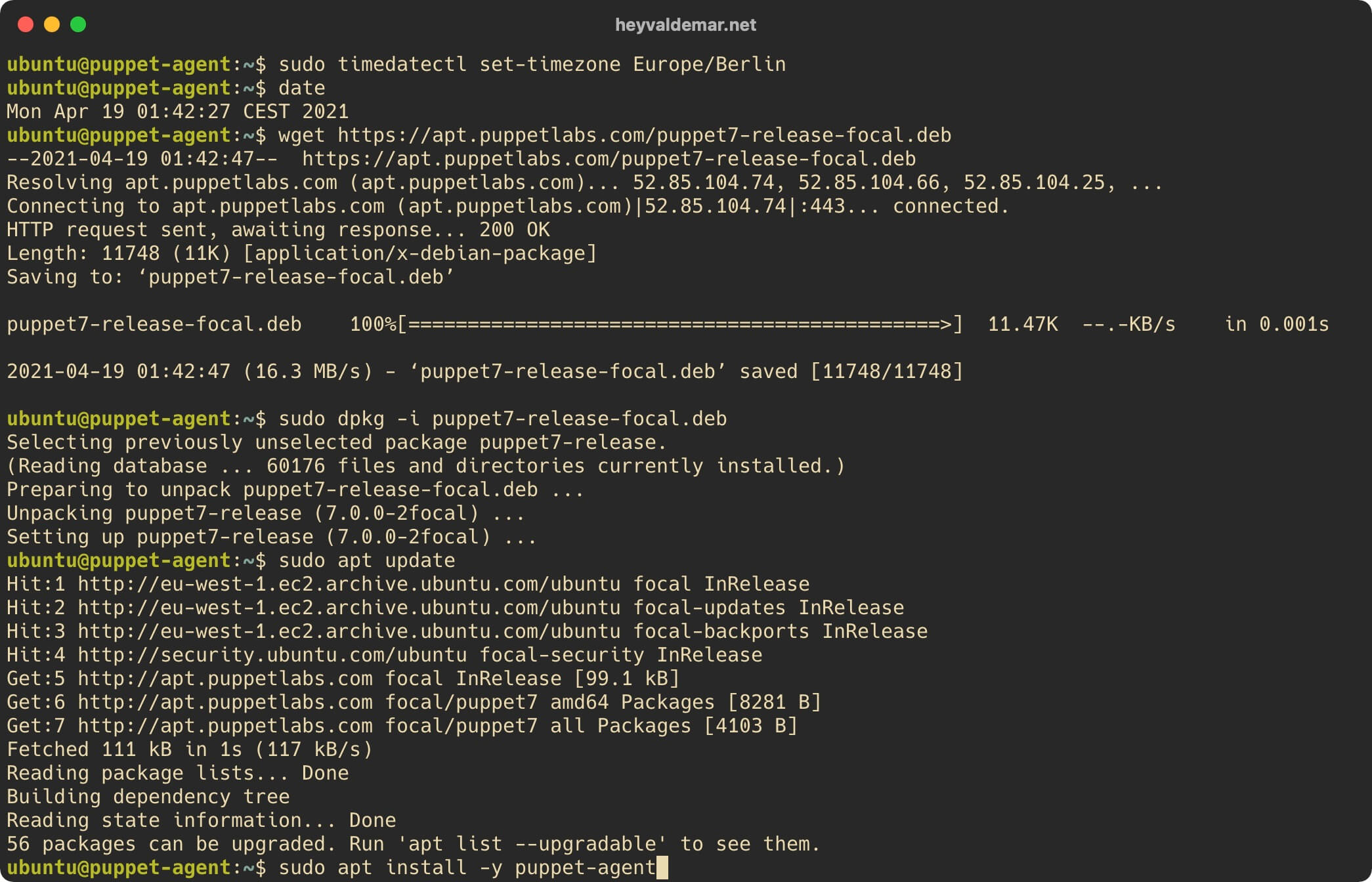

Now you need to download and install the Puppet Agent repository configuration package.

Download the Puppet Agent repository configuration package using the command:

wget https://apt.puppetlabs.com/puppet7-release-focal.deb

Install Puppet on Ubuntu Server

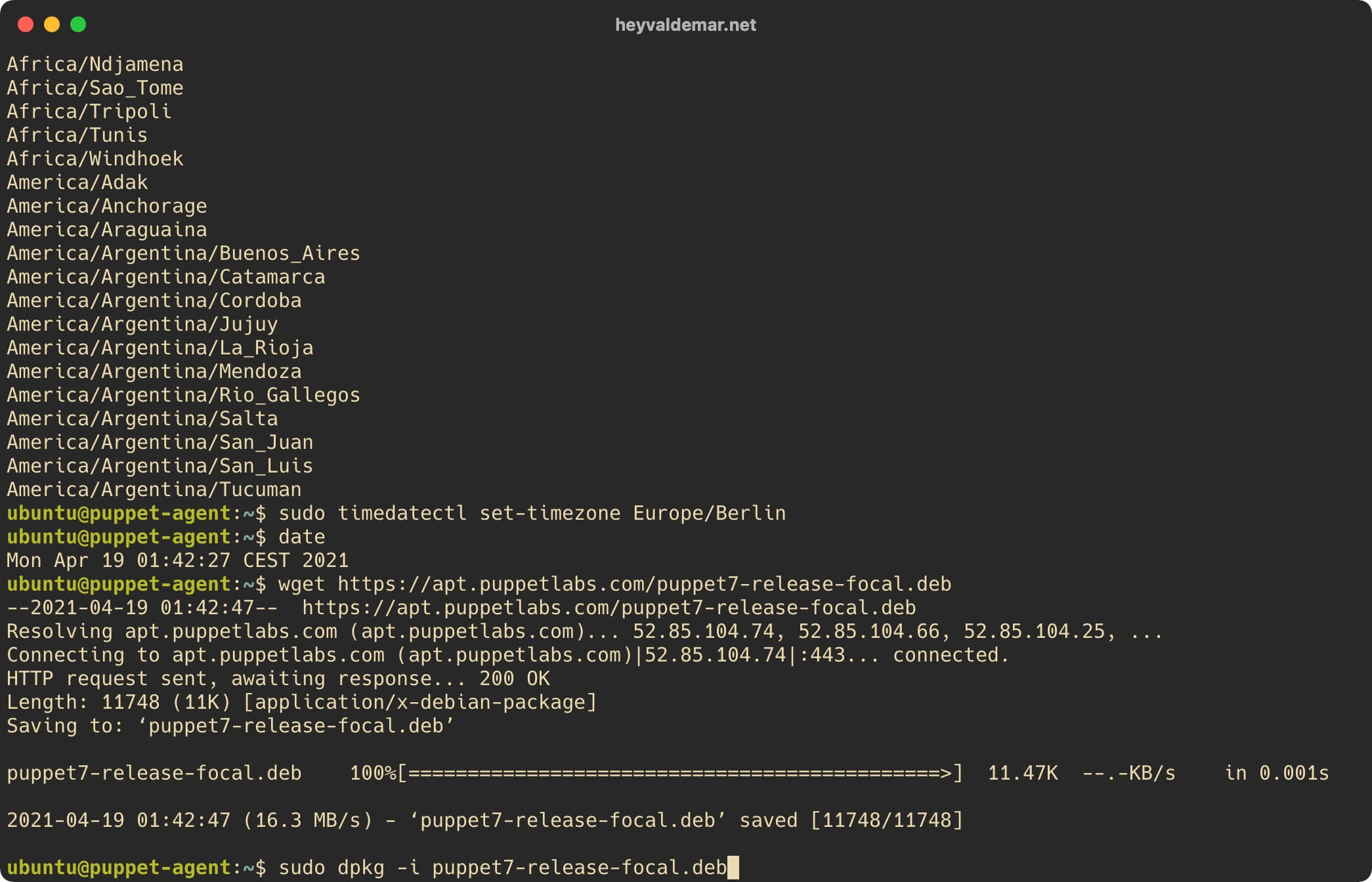

Install the Puppet Agent repository configuration package using the command:

sudo dpkg -i puppet7-release-focal.deb

Install Puppet on Ubuntu Server

Update the local package index to the latest changes in the repositories using the command:

sudo apt update

Install Puppet on Ubuntu Server

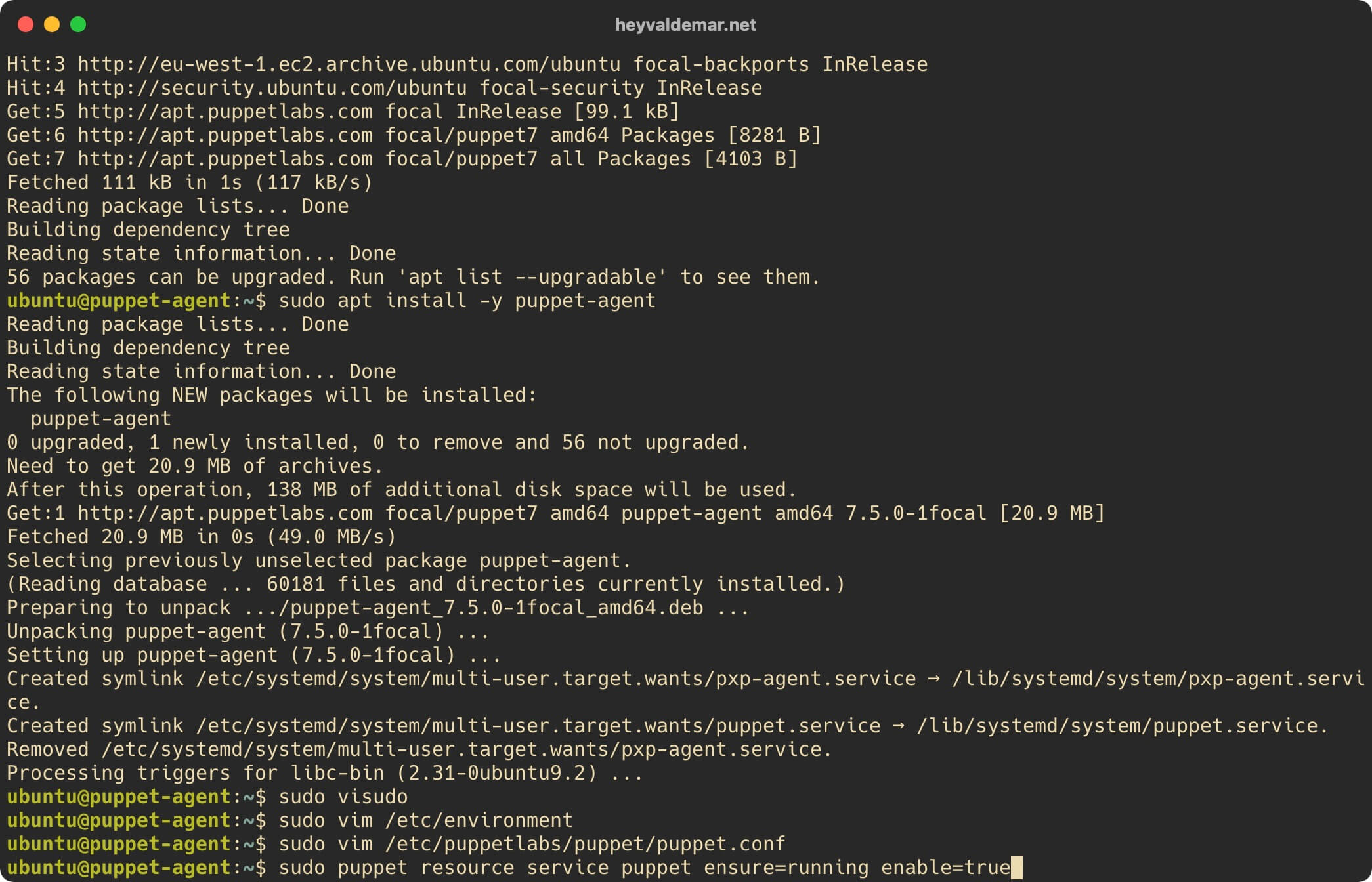

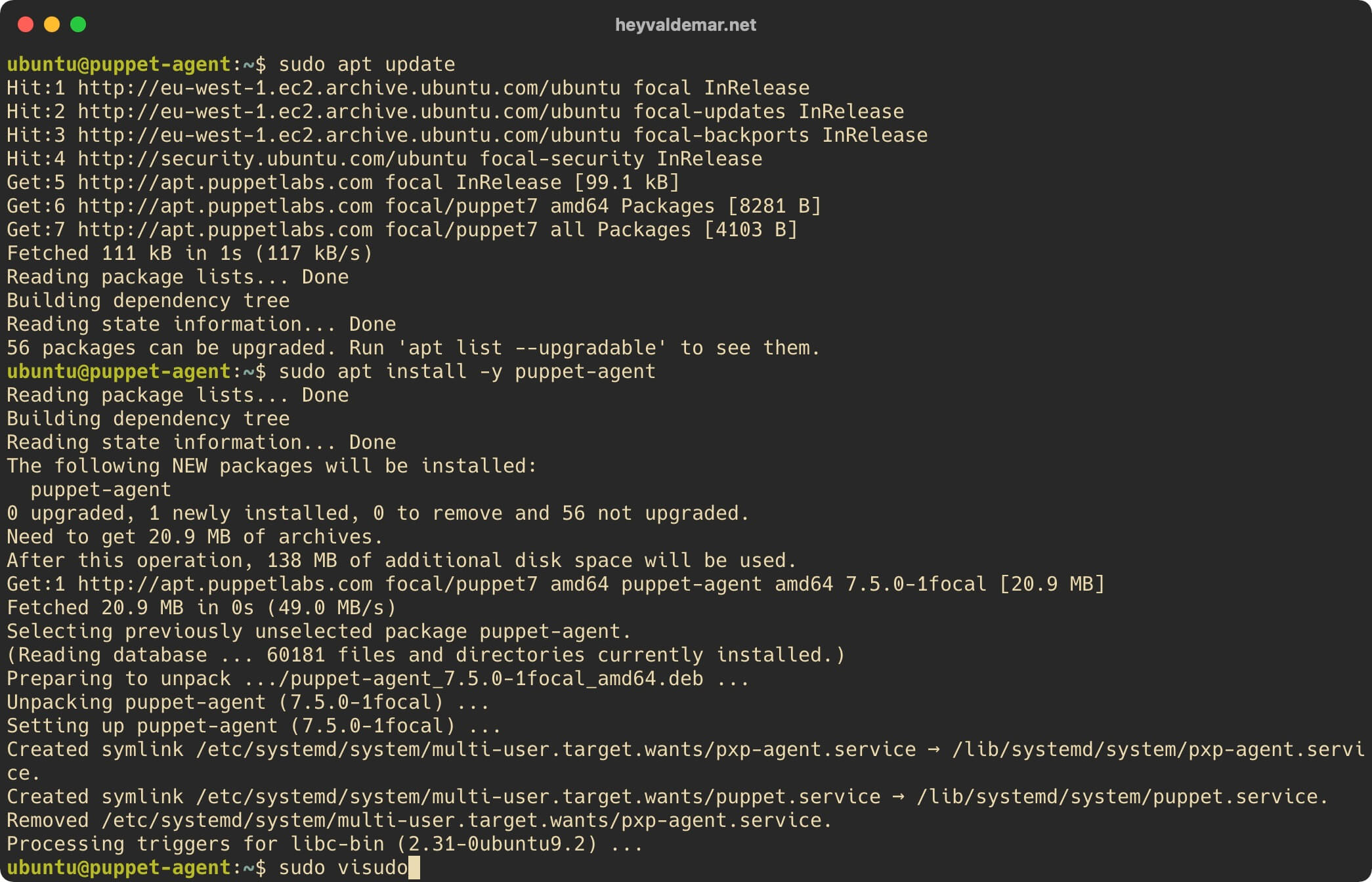

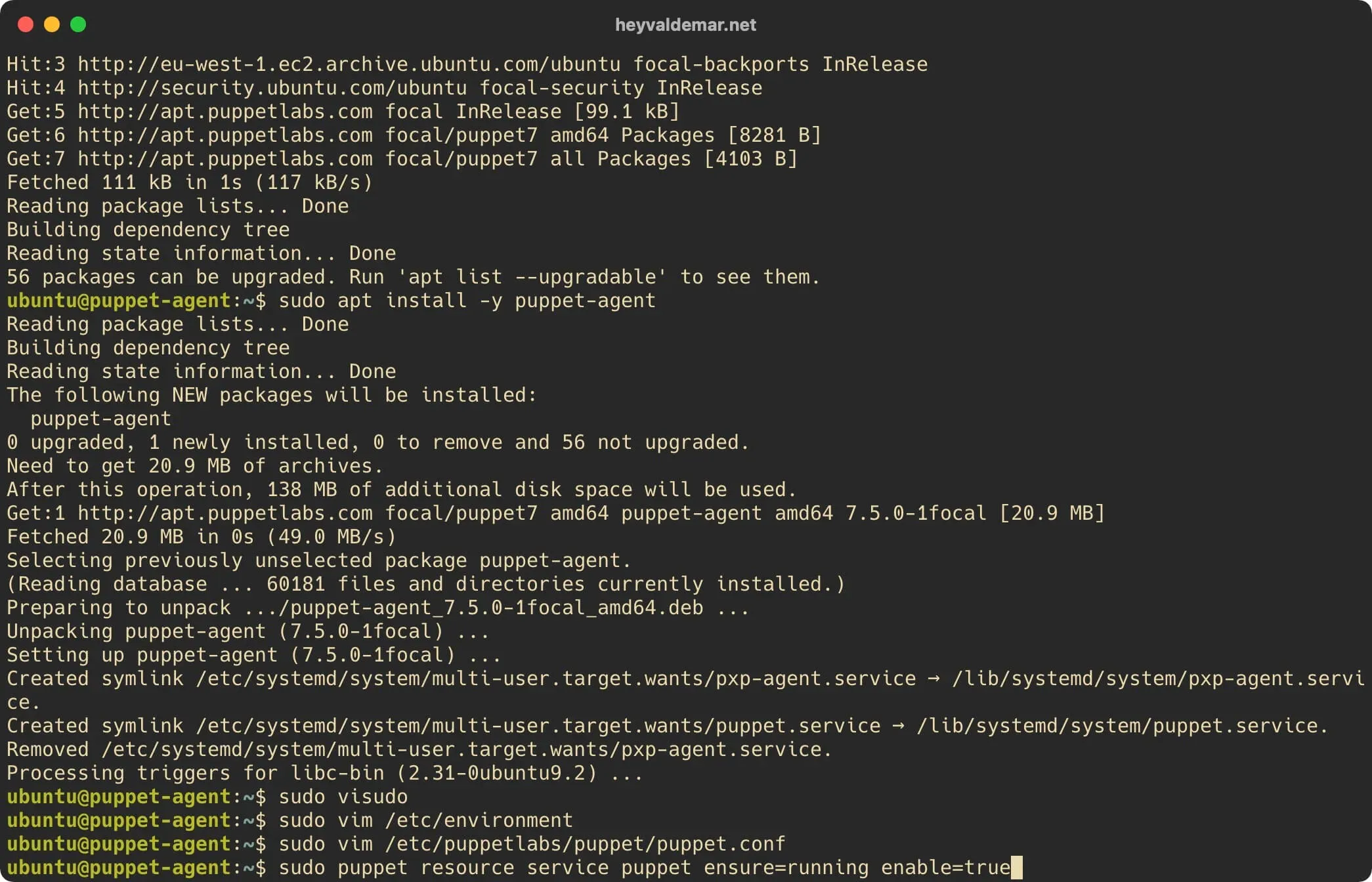

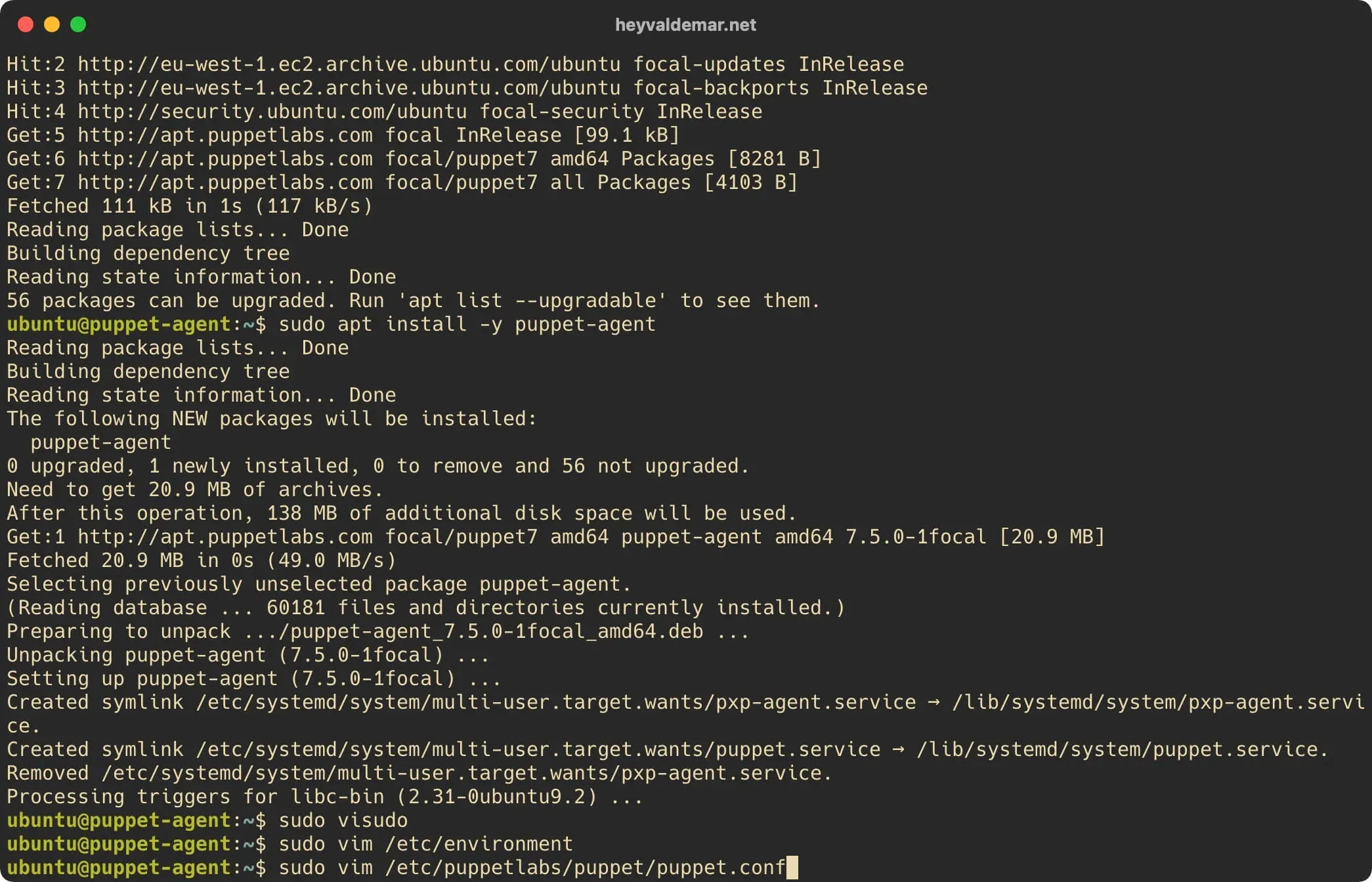

Now install Puppet Agent using the command:

sudo apt install -y puppet-agent

Install Puppet on Ubuntu Server

Puppet binaries are located in the “/opt/puppetlabs/bin/” directory, which is not in the “PATH” environment variable by default and in the “secure_path” variable that is used for “sudo” operations.

Note that the path to the executable files is irrelevant for the Puppet services, since the start of the services does not depend on the “PATH” and “secure_path”.

By adding the path to executable files to variables, you can use:

sudo puppet agent -t

Instead:

sudo /opt/puppetlabs/bin/puppet agent -t

Add the path to the Puppet executable files to the “secure_path” variable.

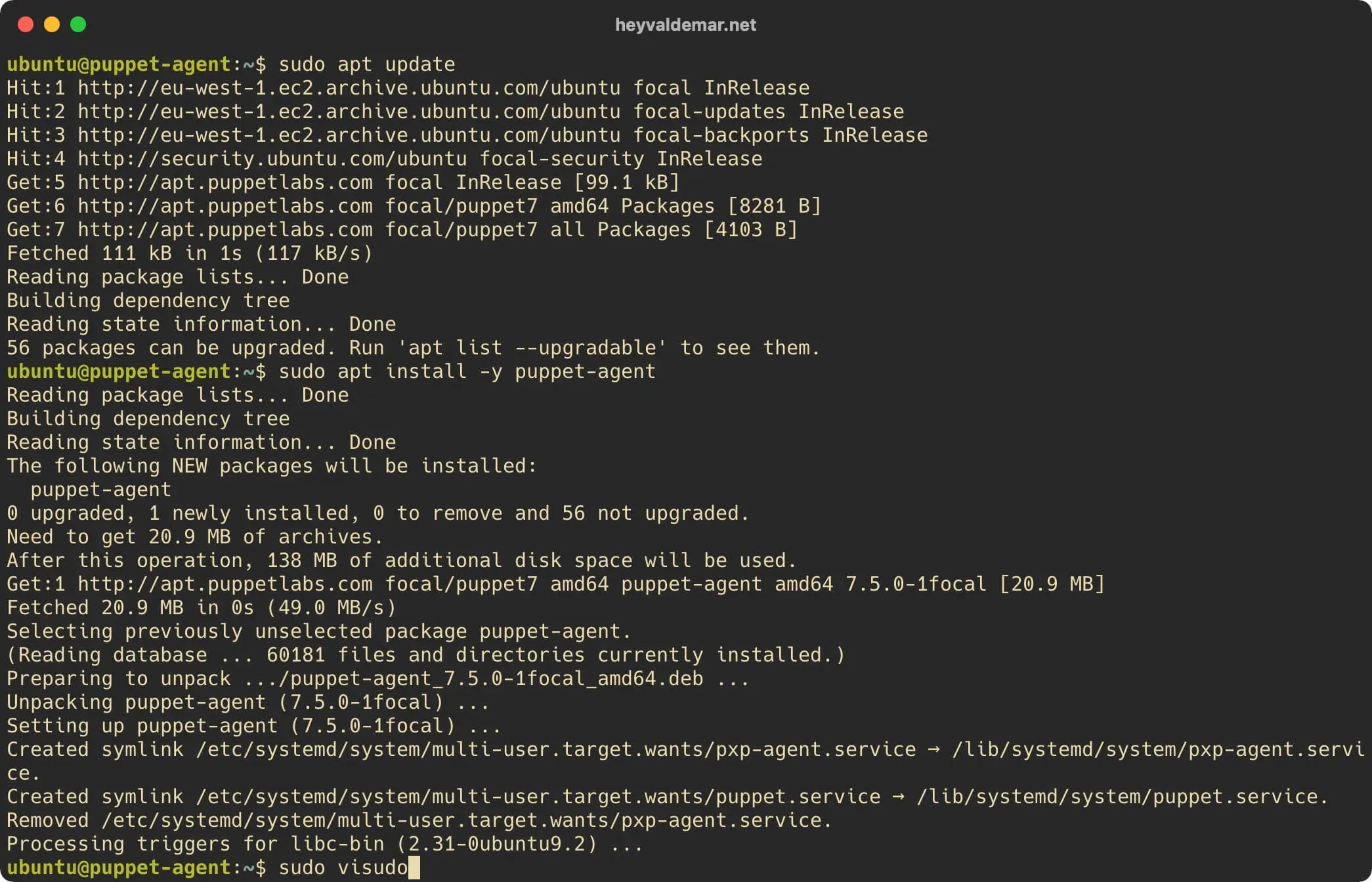

Open the “sudoers” configuration file in a text editor using the command:

sudo visudo

Install Puppet on Ubuntu Server

Find the variable “secure_path”, and at the end of the line, before the closing quote, add the path to the Puppet executable files :/opt/puppetlabs/bin.

Install Puppet on Ubuntu Server

Now you need to confirm the changes in the file.

Click on the “y” button.

Install Puppet on Ubuntu Server

Press the “Enter” button to confirm saving the file.

Install Puppet on Ubuntu Server

Now let’s add the path to the Puppet executables to the “PATH” environment variable.

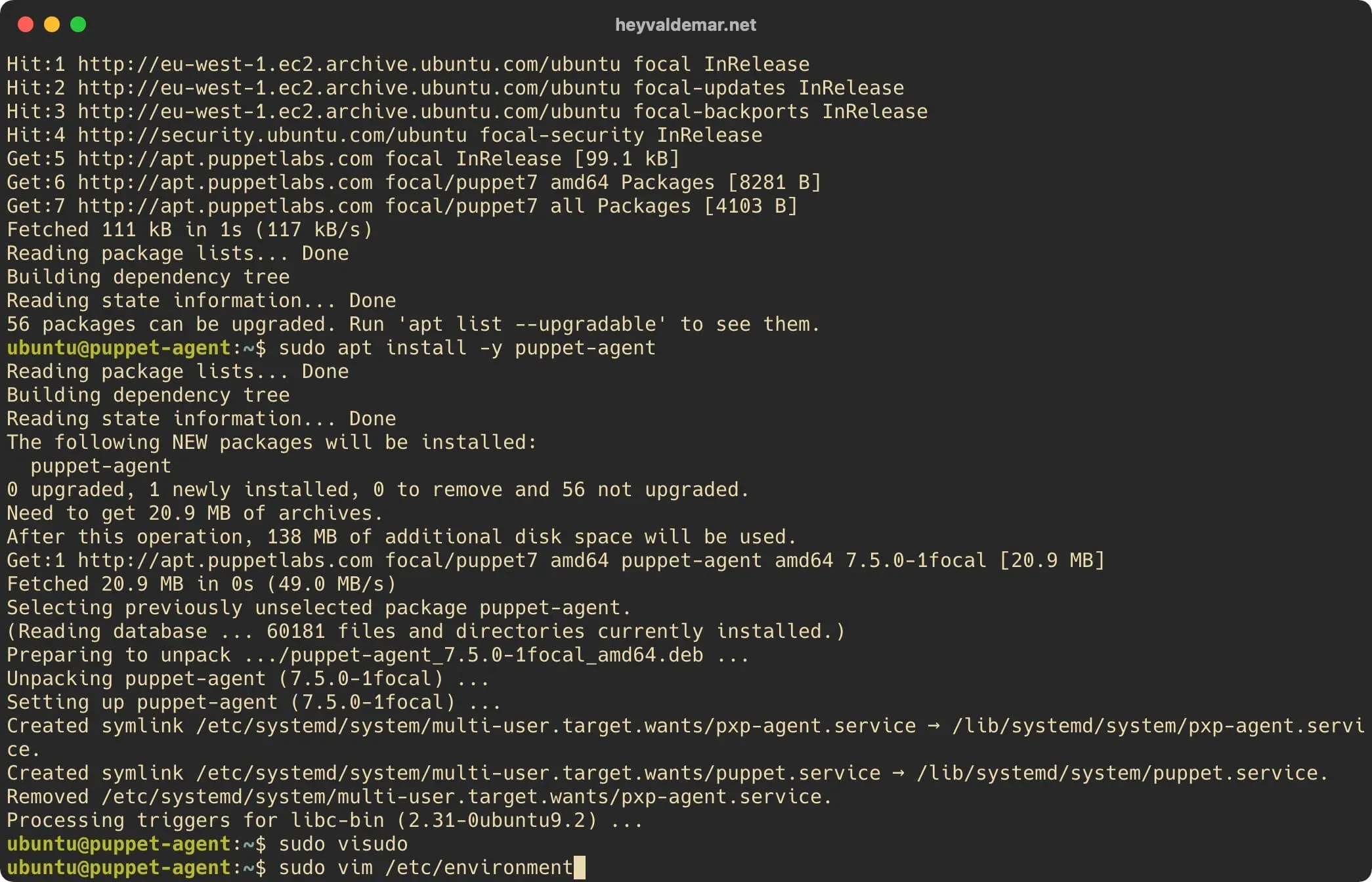

Open the “environment” configuration file in a text editor using the command:

sudo vim /etc/environment

Install Puppet on Ubuntu Server

Press the “i” button to enter edit mode, and at the end of the line, before the closing quote, add the path to the Puppet executable files :/opt/puppetlabs/bin.

Install Puppet on Ubuntu Server

Now press the “Esc” button to exit edit mode, then type “:x” and press the “Enter” button to save your changes and exit the editor.

Install Puppet on Ubuntu Server

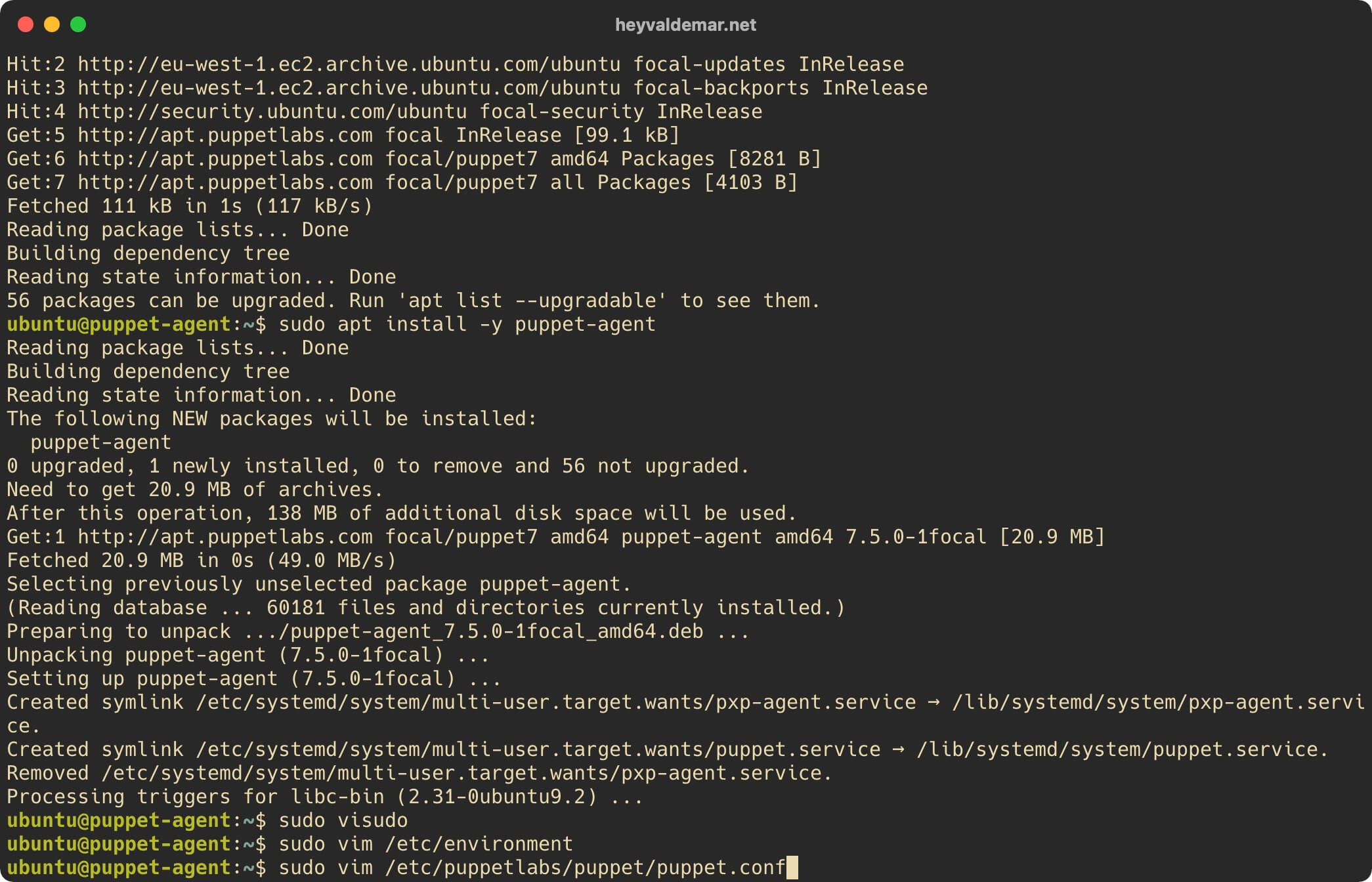

Next, you need to make changes to the Puppet configuration file by opening it in a text editor using the command:

sudo vim /etc/puppetlabs/puppet/puppet.conf

Install Puppet on Ubuntu Server

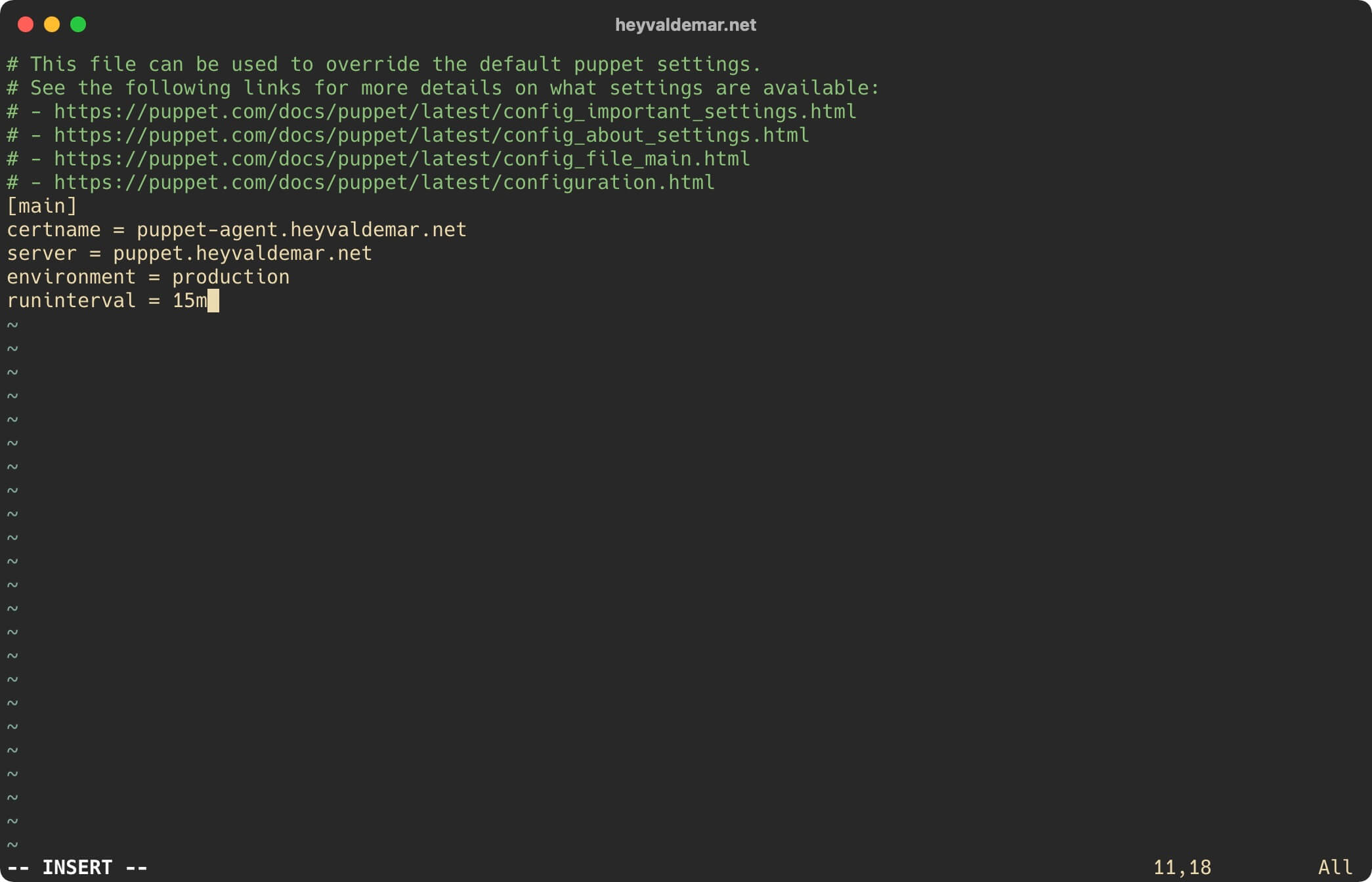

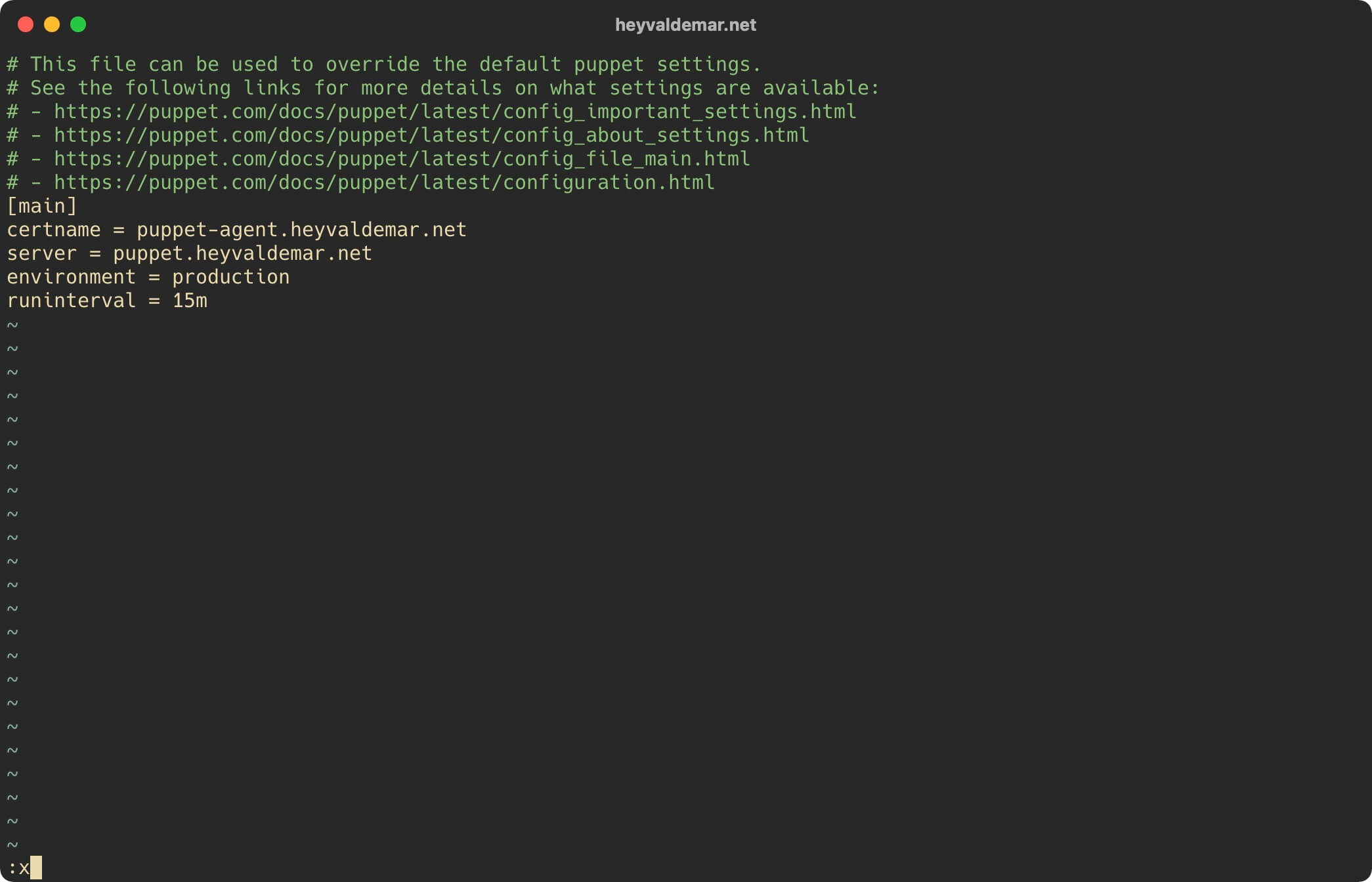

Press the “i” button to switch to edit mode, add a new section “[main]” with the following parameters:

[main]
certname = puppet-agent.heyvaldemar.net
server = puppet.heyvaldemar.net
environment = production
runinterval = 15m

Install Puppet on Ubuntu Server

In this tutorial, Puppet Agent is installed on the puppet-agent.heyvaldemar.net server. You will need to specify your server through which your Puppet Agent will be accessible from the Internet or on the local network of your organization.

Also, the Puppet Server is installed on the puppet.heyvaldemar.net server. You will need to specify your server through which your Puppet Server will be accessible from the Internet or on the local network of your organization.

Note that the “runinterval” parameter specifies the time interval between agent requests to the Puppet server.

Now press the “Esc” button to exit edit mode, and then type “: x” and press the “Enter” button to save your changes and exit the editor.

Install Puppet on Ubuntu Server

Launch Puppet Agent and enable it to autostart when the operating system starts up using the command:

sudo puppet resource service puppet ensure=running enable=true

Install Puppet on Ubuntu Server

We return to the server with Puppet Server installed.

Now you need to approve the certificate request for the server on which the Puppet Agent is installed so that later the client can receive the configuration from the Puppet server.

Let’s look at the client requests in the queue using the command:

sudo puppetserver ca list

Install Puppet on Ubuntu Server

We sign the client request using the command:

sudo puppetserver ca sign --certname puppet-agent.heyvaldemar.net

In this tutorial, Puppet Agent is installed on the puppet-agent.heyvaldemar.net server. You will need to specify your server through which your Puppet Agent will be accessible from the Internet or on the local network of your organization.

Install Puppet on Ubuntu Server

The client request has been successfully signed.

Next, you can view all signed and unsigned client requests using the command:

sudo puppetserver ca list --all

Install Puppet on Ubuntu Server

Please note that you can sign all client requests in the queue using the command:

sudo puppetserver ca sign --all

You can revoke a client certificate using the command:

sudo puppetserver ca revoke --certname puppet-agent.heyvaldemar.net

In this tutorial, Puppet Agent is installed on the puppet-agent.heyvaldemar.net server. You will need to specify your server through which your Puppet Agent will be accessible from the Internet or on the local network of your organization.

Now you can create a manifest to test Puppet’s functionality.

A manifest is a data file containing client configuration written in Puppet or Ruby DSL.

Let’s create a manifest using the command:

sudo vim /etc/puppetlabs/code/environments/production/manifests/site.pp

Install Puppet on Ubuntu Server

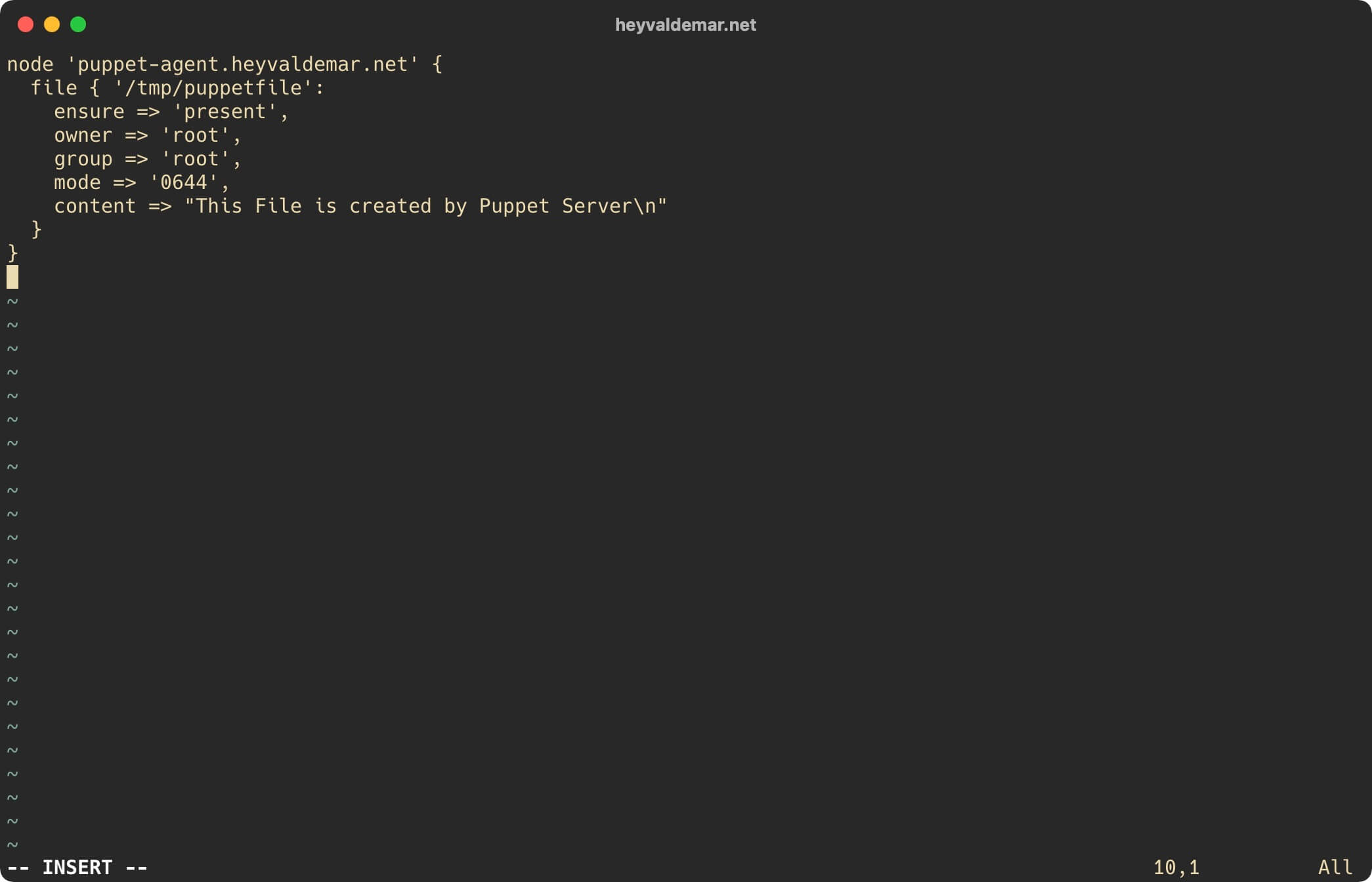

Click on the “i” button to go into edit mode, then insert the following configuration:

node 'puppet-agent.heyvaldemar.net' {
  file { '/tmp/puppetfile':
    ensure => 'present',
    owner => 'root',
    group => 'root',
    mode => '0644',
    content => "This File is created by Puppet Server\n"
  }
}

In this tutorial, Puppet Agent is installed on the puppet-agent.heyvaldemar.net server. You will need to specify your server through which your Puppet Agent will be accessible from the Internet or on the local network of your organization.

Please note that a “puppetfile” file will be created in the “/tmp” directory containing the text “This File is created by Puppet Server”. The user “root” will be the owner of the file.

Install Puppet on Ubuntu Server

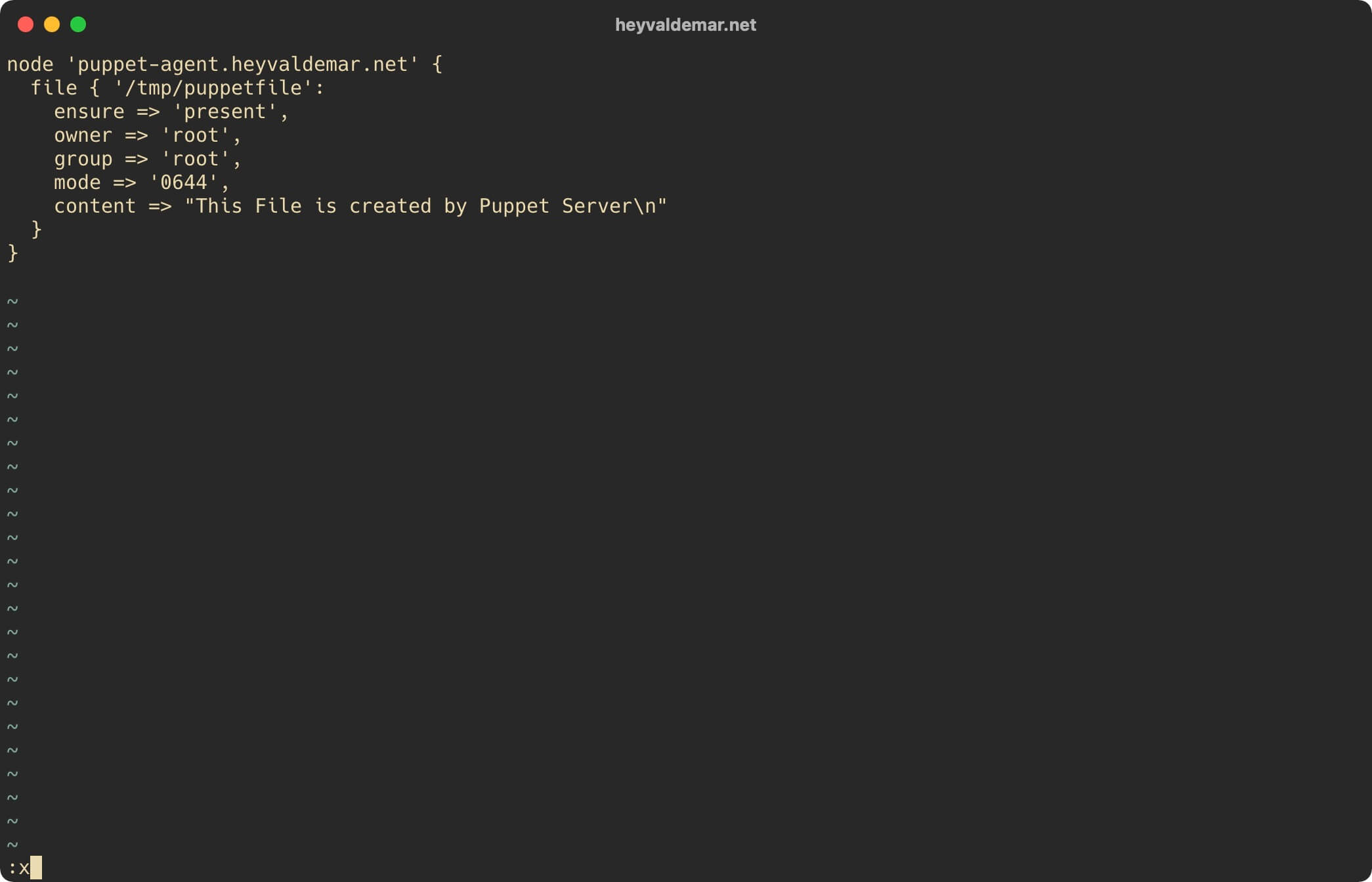

Now press the “Esc” button to exit edit mode, then type “:x” and press the “Enter” button to save your changes and exit the editor.

Install Puppet on Ubuntu Server

We return to the server with the Puppet Agent installed.

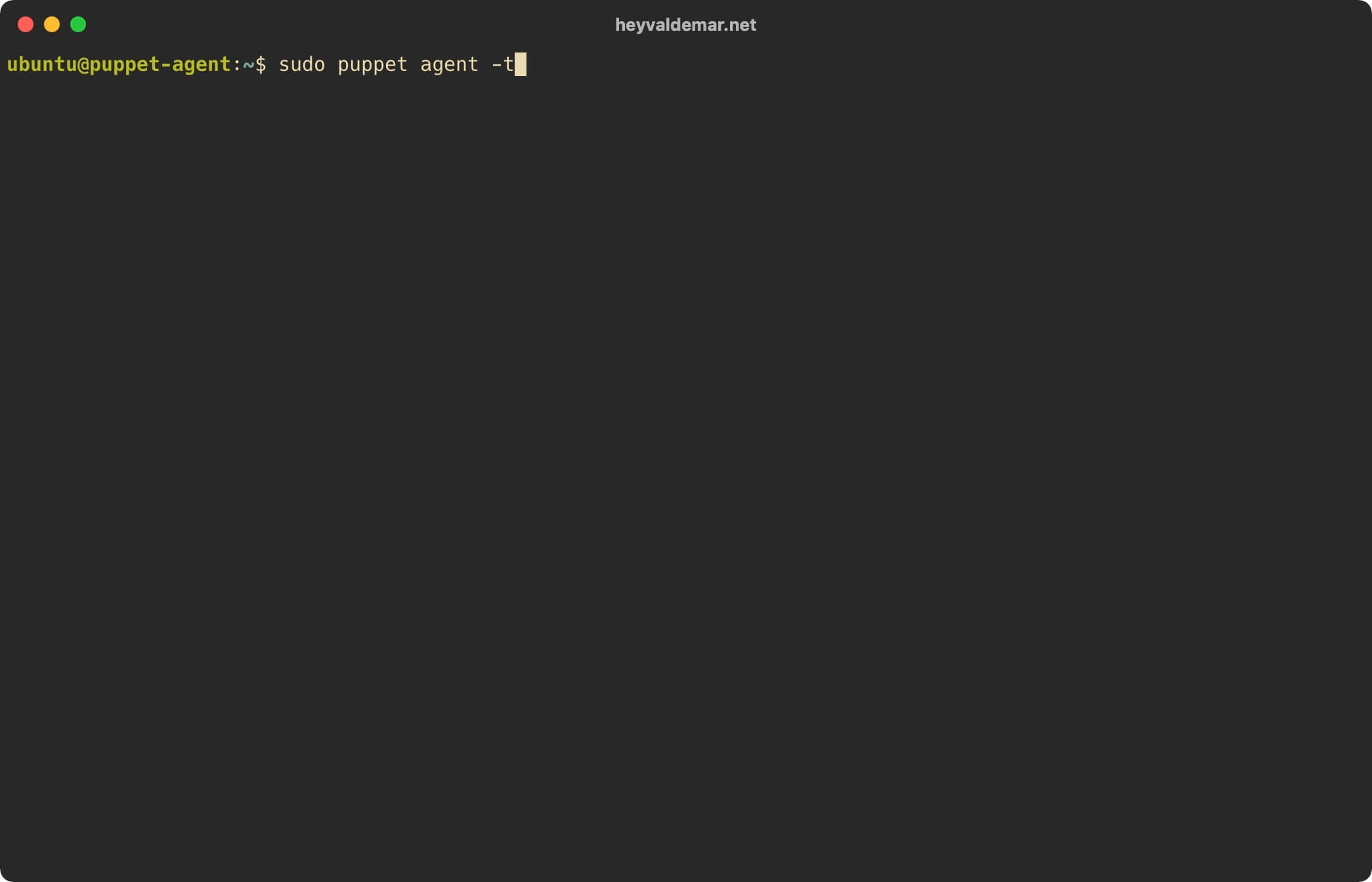

Now you need to get the configuration for the client from the Puppet server using the command:

sudo puppet agent -t

Install Puppet on Ubuntu Server

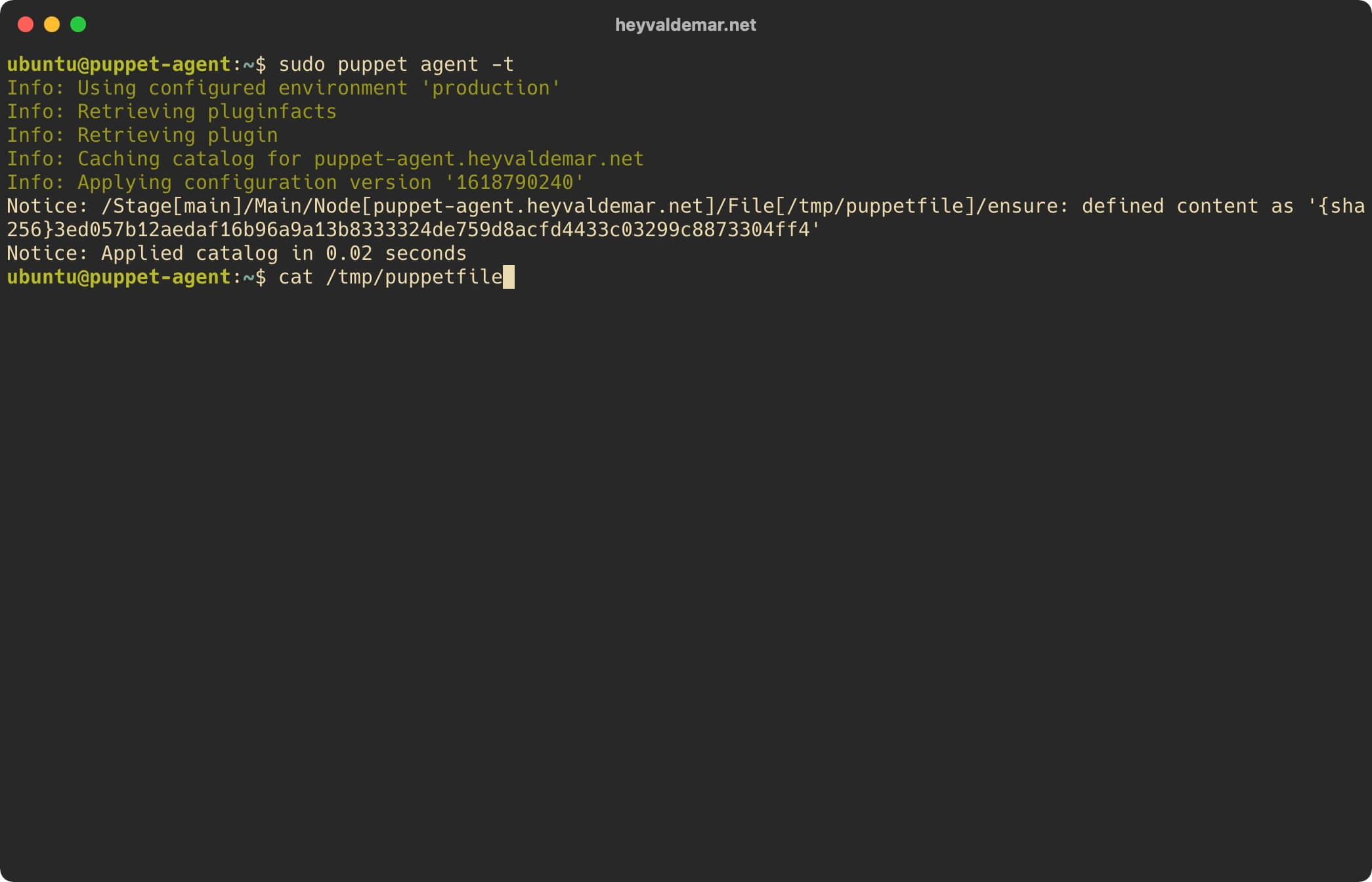

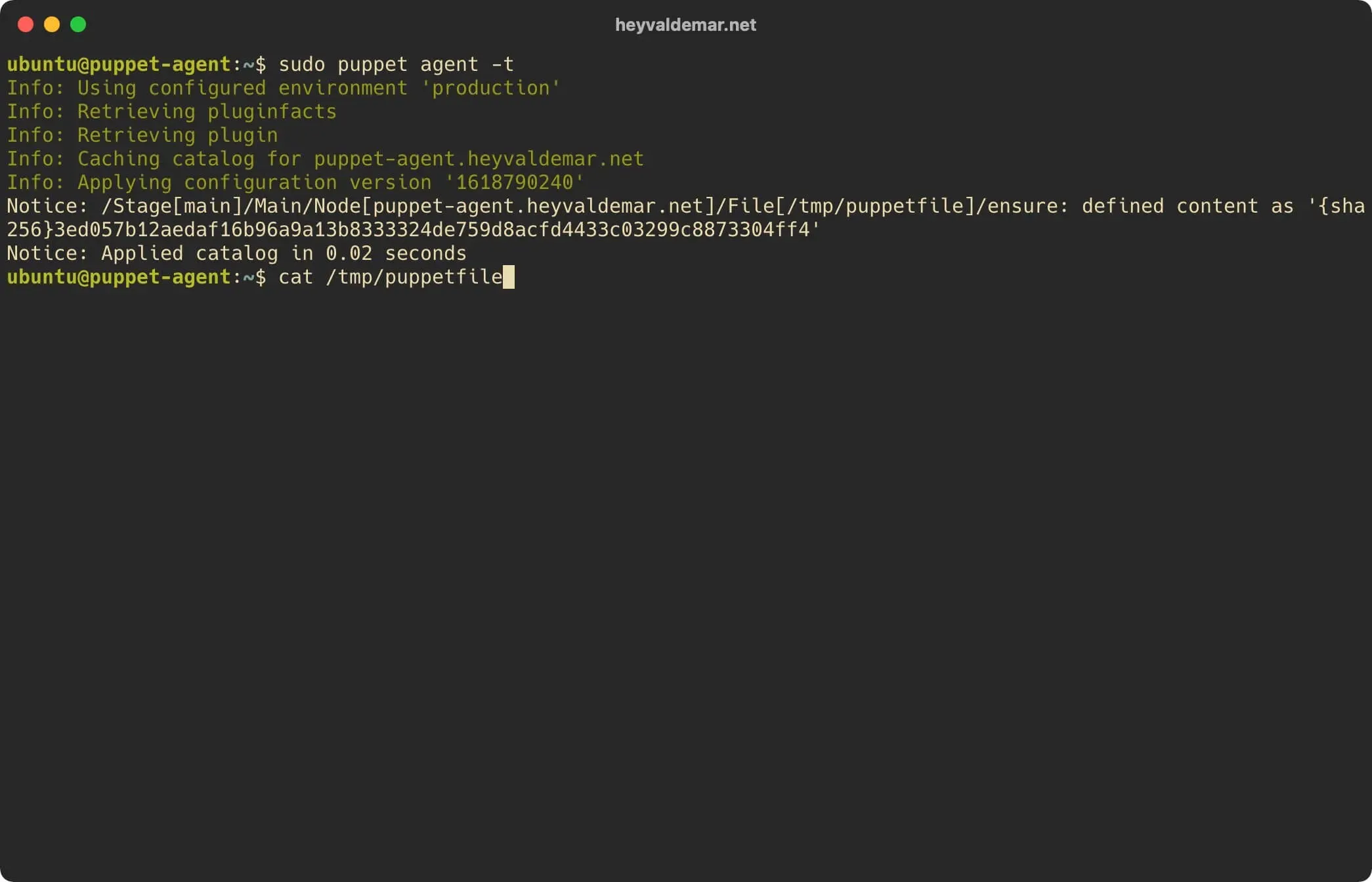

Next, you can check that the file was successfully created and contains the text specified earlier in the manifest using the command:

cat /tmp/puppetfile

Install Puppet on Ubuntu Server

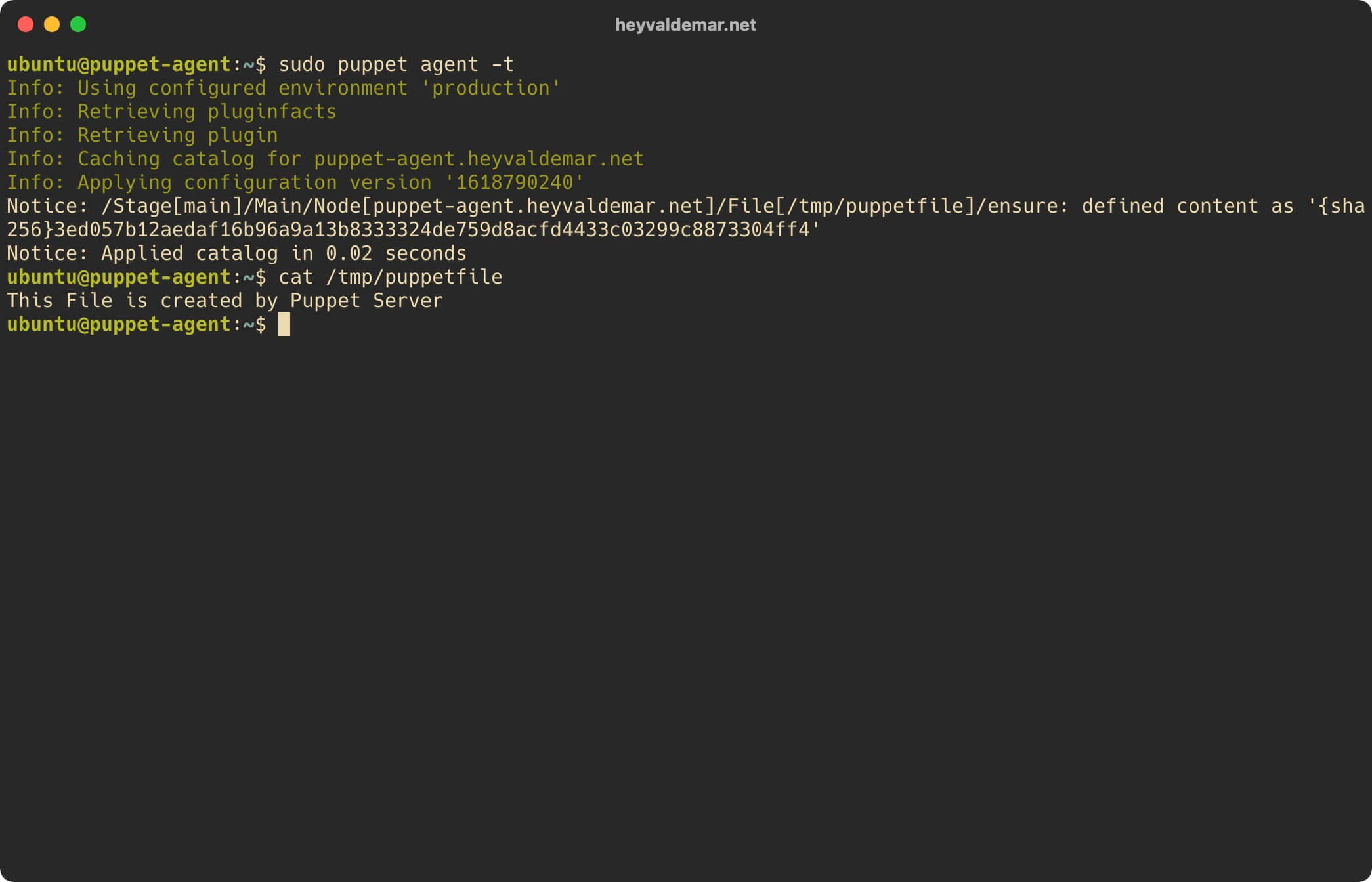

The file was successfully created and contains the text specified in the manifest.

Install Puppet on Ubuntu Server

Vladimir Mikhalev
hey, I’m Vladimir Mikhalev, but my friends call me Valdemar. I have a lot of experience in the design and maintenance of various information systems.

Recent Posts
