This article is for those looking for a detailed and clear guide on how to install Windows Server 2016.

I strongly recommend that you never use any third-party builds of Windows. Use only original installation images. This will help you avoid a lot of problems and get maximum performance and stability.

I recommend that you always use the English-language editions of Windows Server. As practice shows, original (English) versions of Windows work more stable, besides, it will be easier for you to communicate in the same language with professionals in case of problems or if you want to exchange experience.

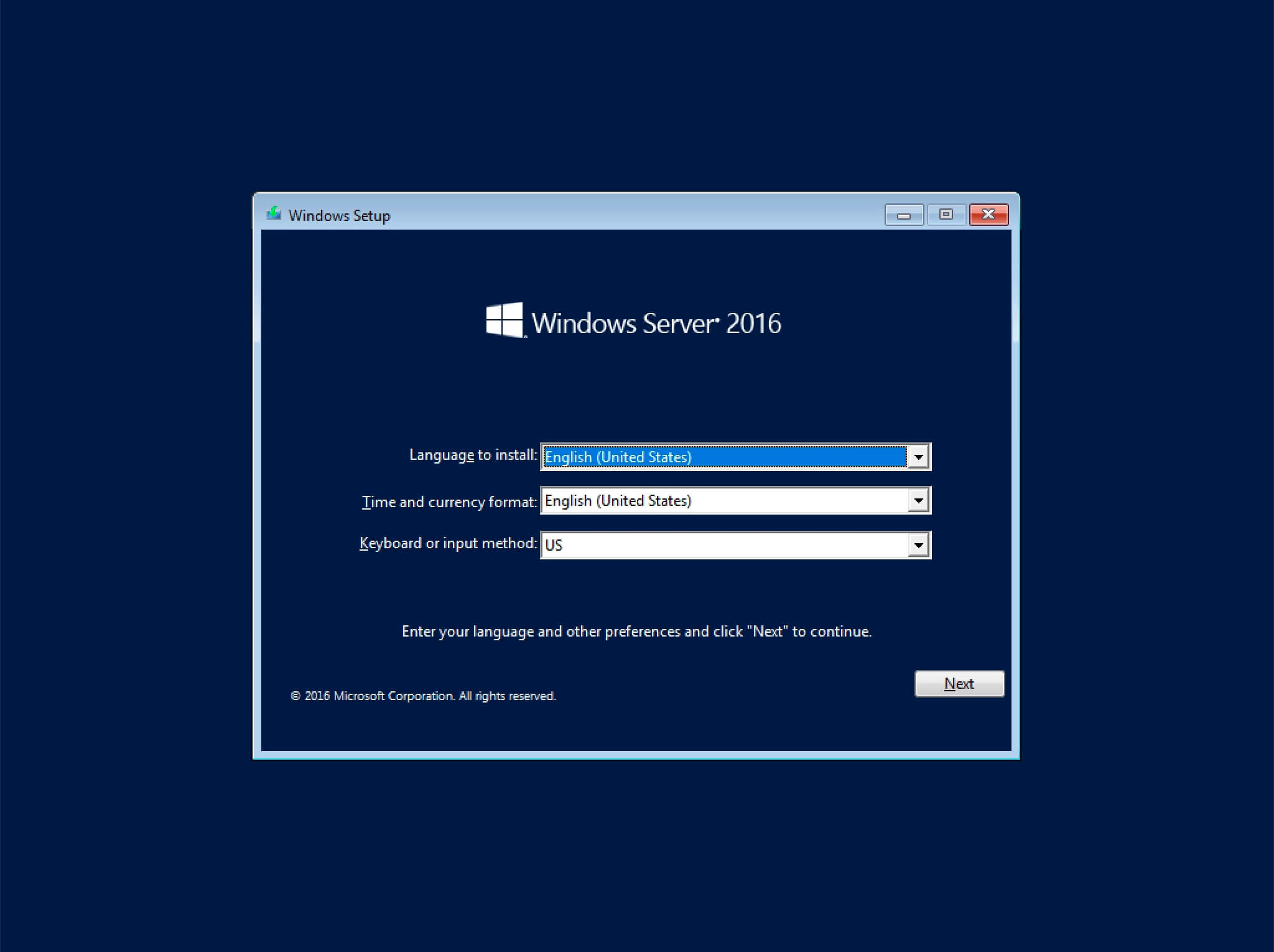

After successfully booting from the Windows Server 2016 installation flash drive or DVD, the first step is to select the language options.

This guide covers the installation of the Windows Server 2016 in English.

Click on the “Next” button.

Install Windows Server 2016

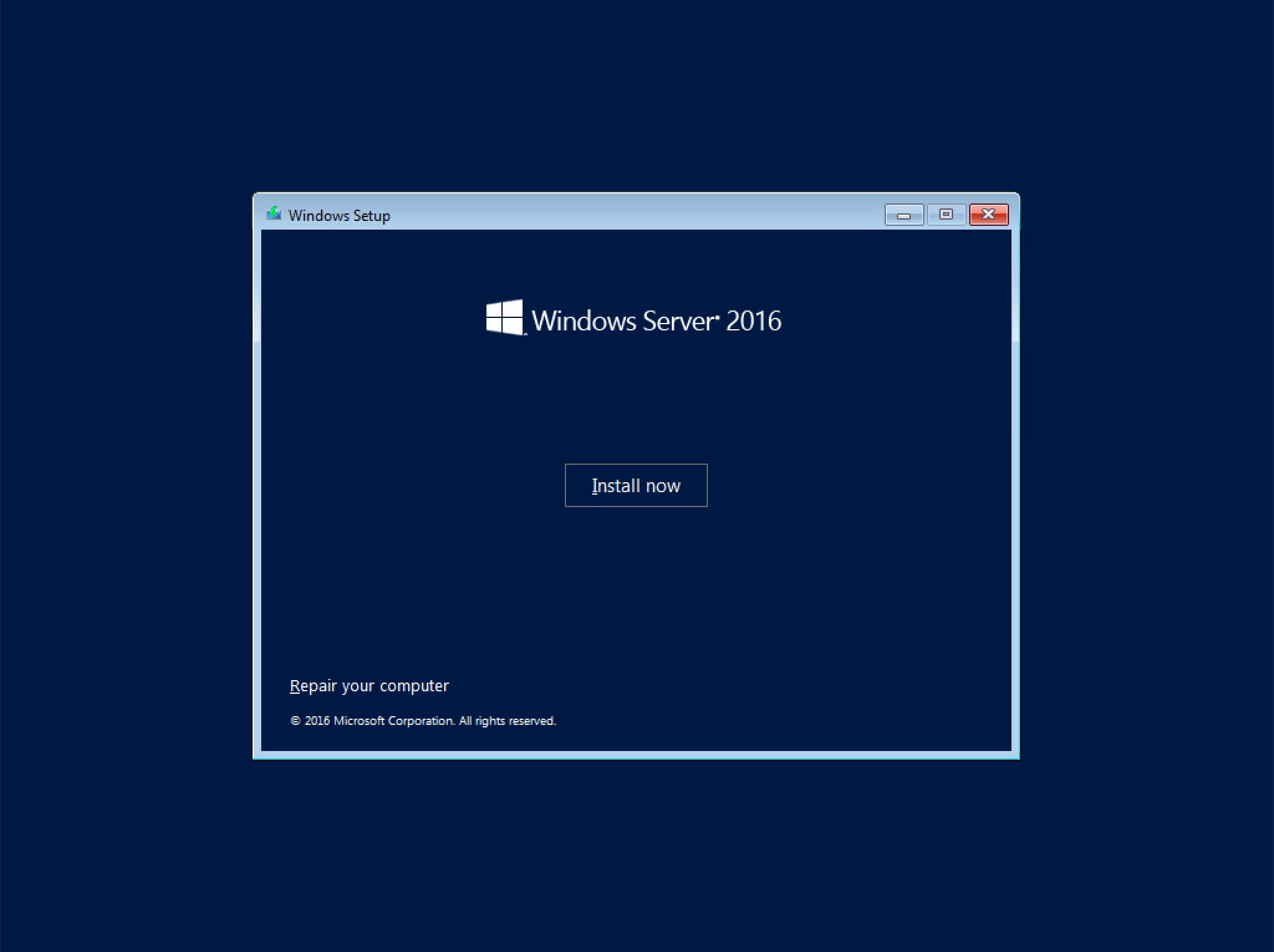

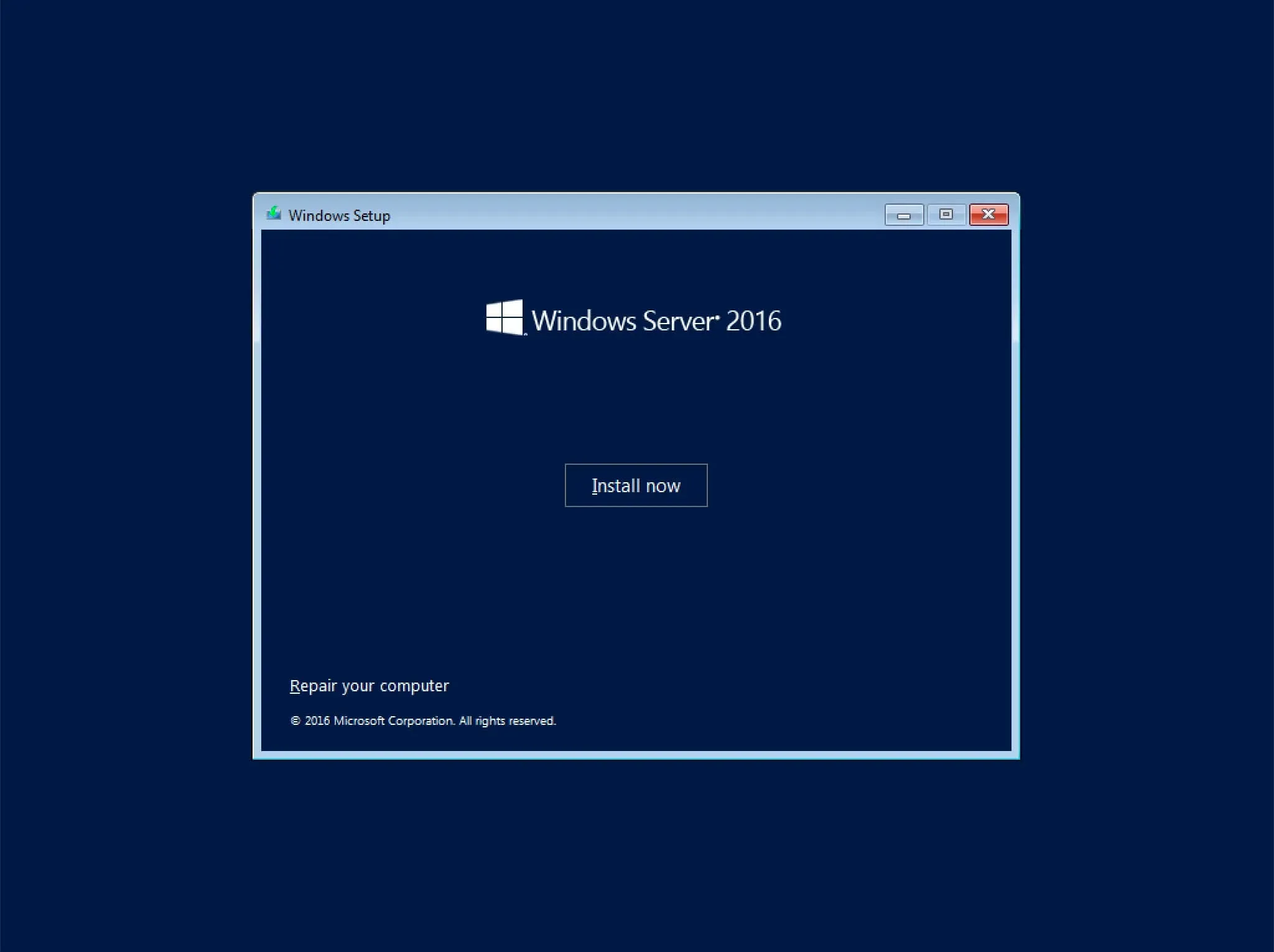

Click on the “Install now” button.

Install Windows Server 2016

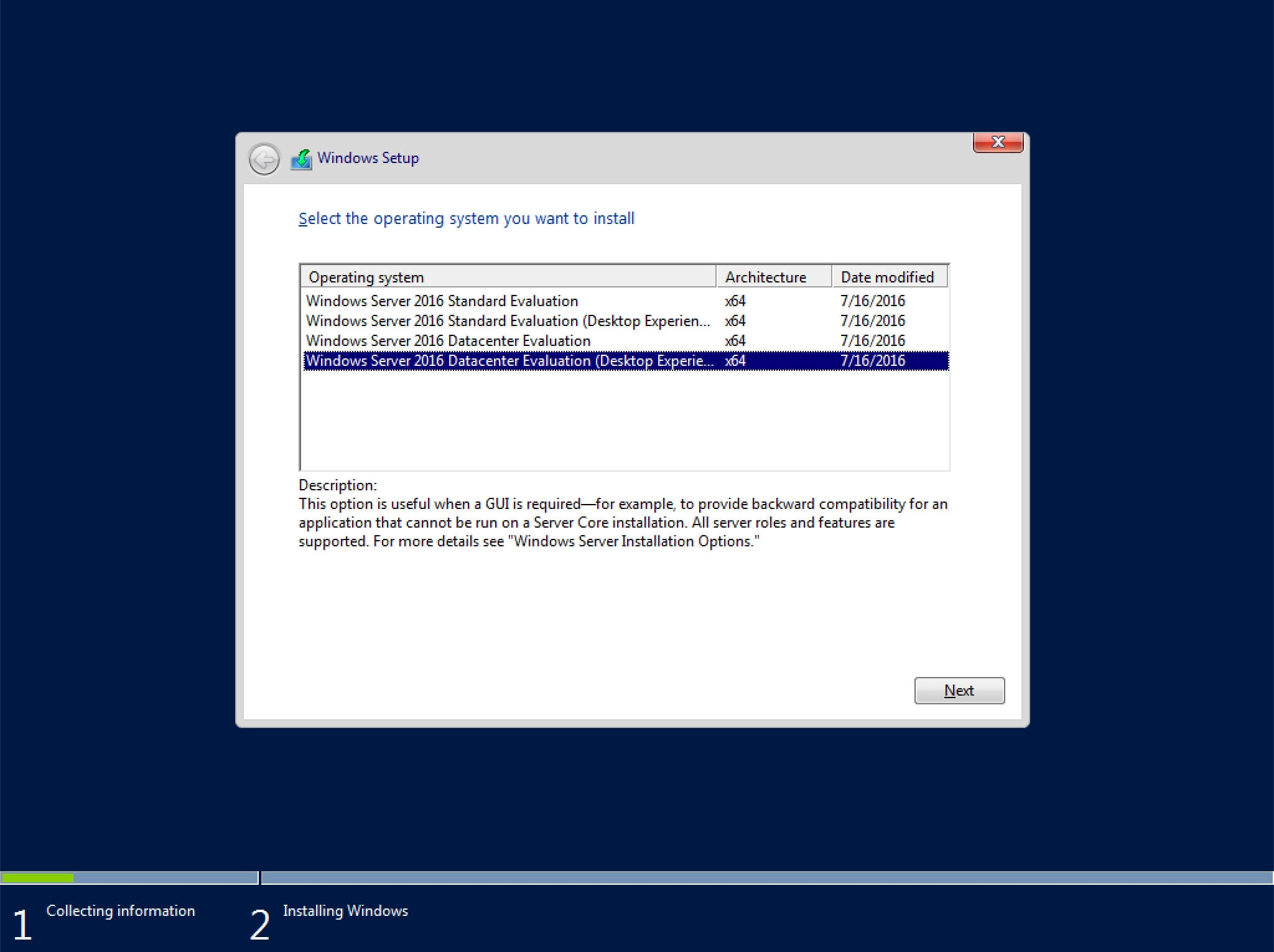

Note, if you need to install Windows Server 2016 in Server Core mode (no GUI), then you need to select “Windows Server 2016 Standard Evaluation” or “Windows Server 2016 Datacenter Evaluation”.

This example is for installing Windows Server 2016 Datacenter Evaluation (Desktop Experience).

Select “Windows Server 2016 Datacenter Evaluation (Desktop Experience)” and click “Next”.

Install Windows Server 2016

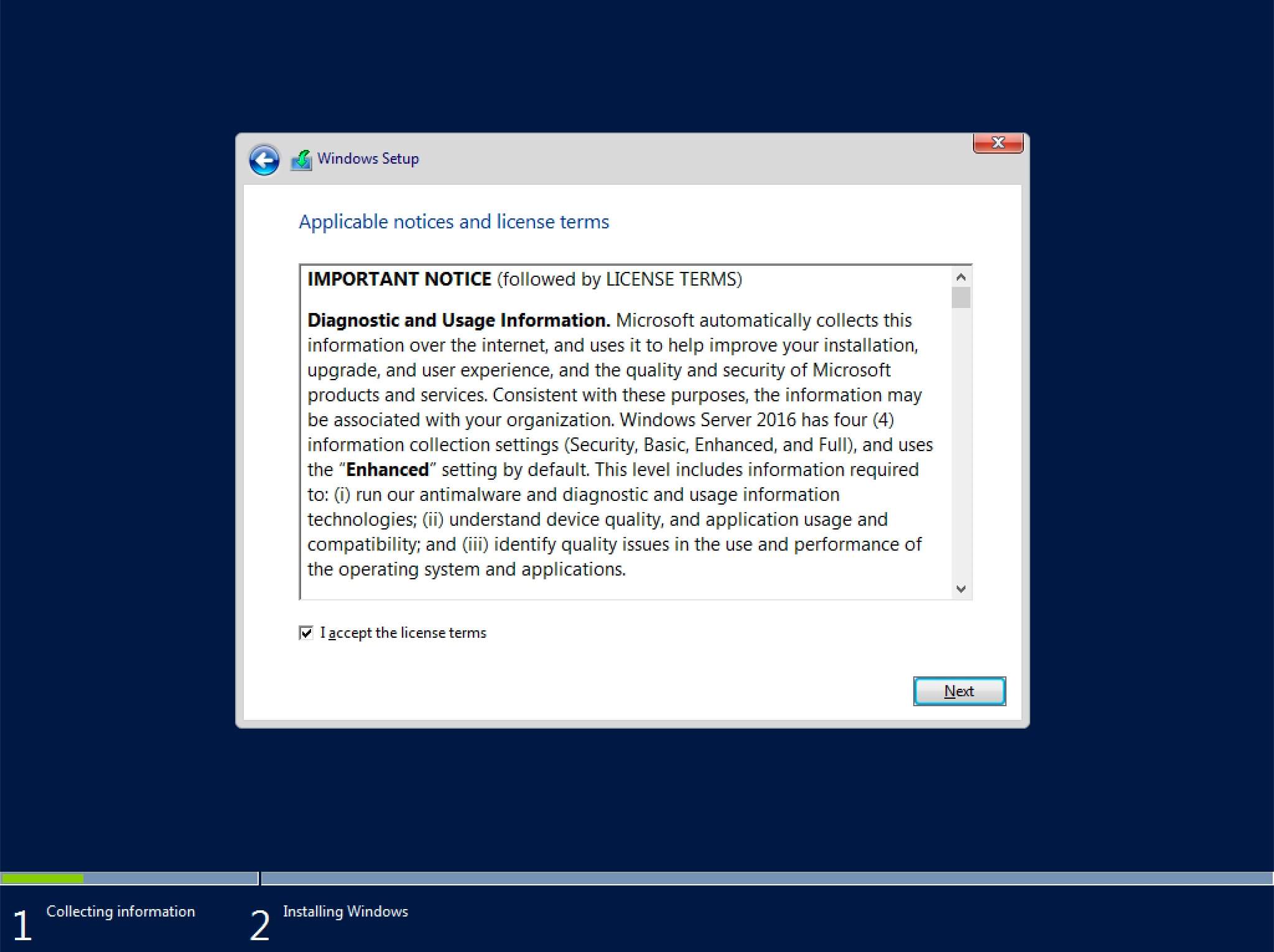

Now you need to accept the terms of the license.

Install Windows Server 2016

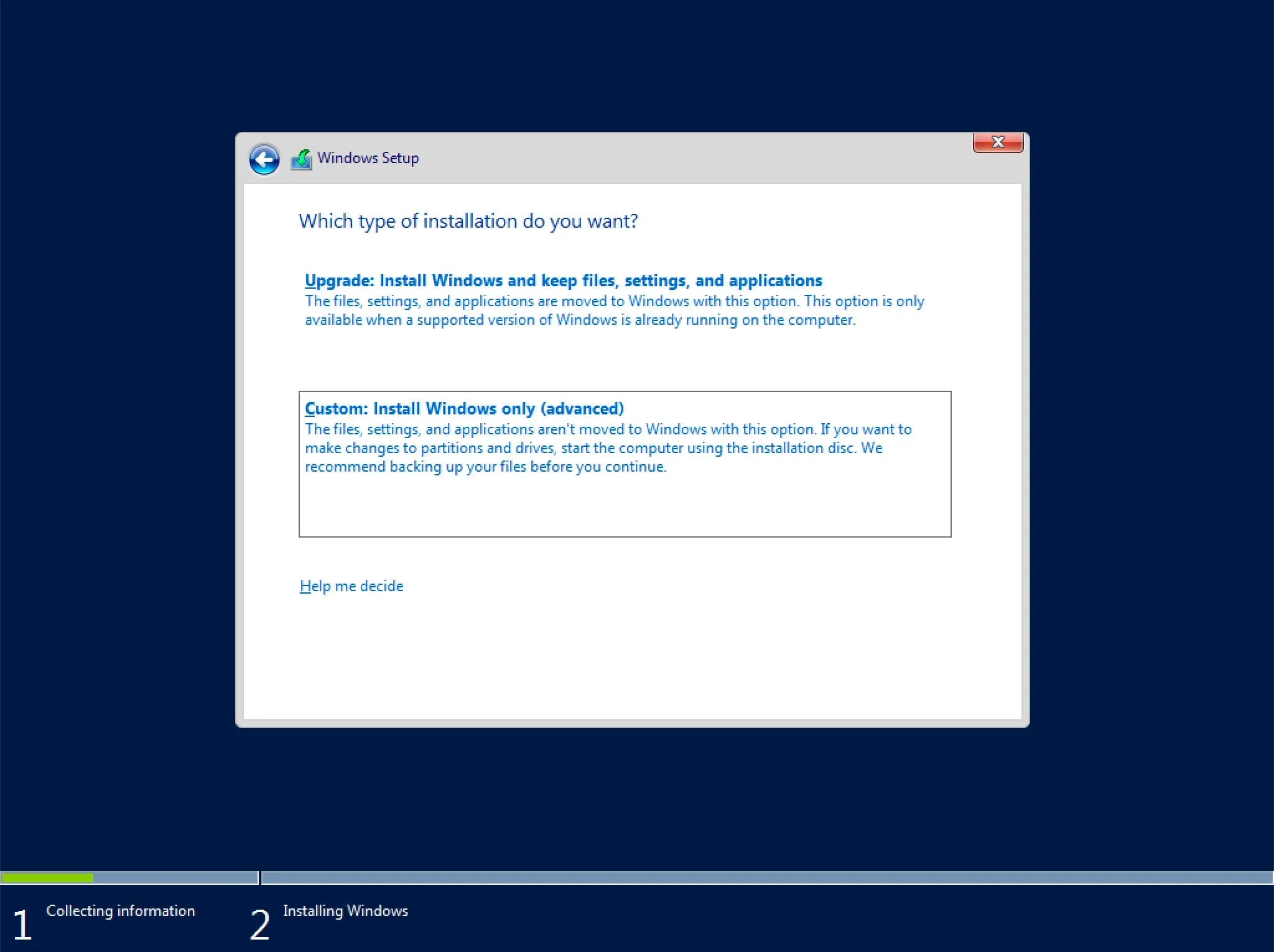

This step offers two installation options:

  • “Upgrade”. This is not the best option. As practice shows, numerous programs may not be compatible with the new operating system, and after the update, you will not be able to work with them, in addition, there is a possibility of dragging problems from the old operating system to the new one, thus losing all stability.

  • “Custom”. This is the best option for installing any version of the Windows operating system. It allows you to start from scratch with the system, so after installation, you will get maximum performance and stability. All that remains is to install the drivers and software familiar to work.

Install Windows Server 2016

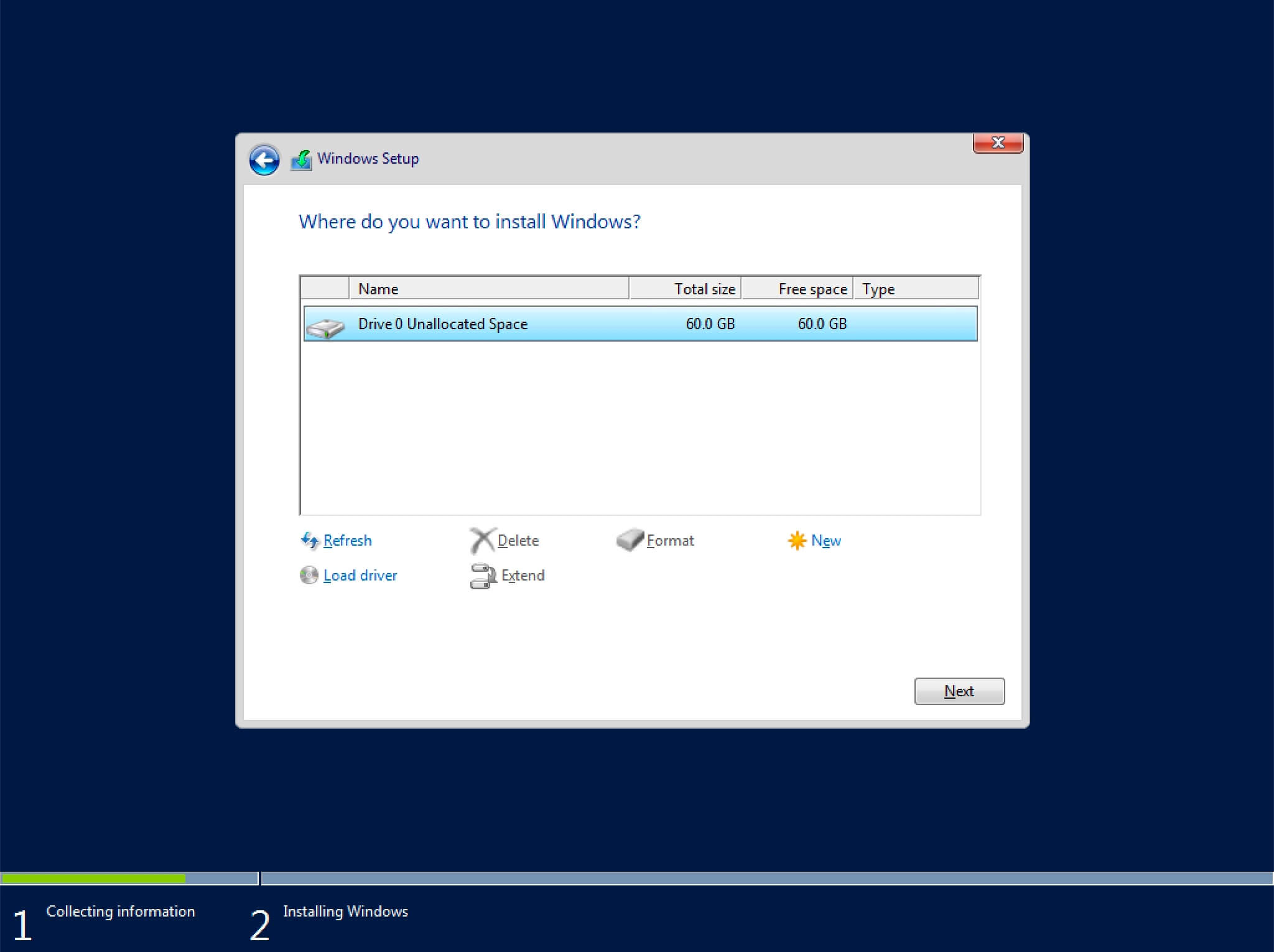

Now you need to select which disk the new operating system will be installed on and allocate space for installation.

If you have more than one disk installed or the disk already has several partitions, all this will be displayed at this stage. You need to be careful and understand in advance which partition you want to install the operating system on.

In this example, one 60 GB disk is installed.

Click on the “New” button.

Install Windows Server 2016

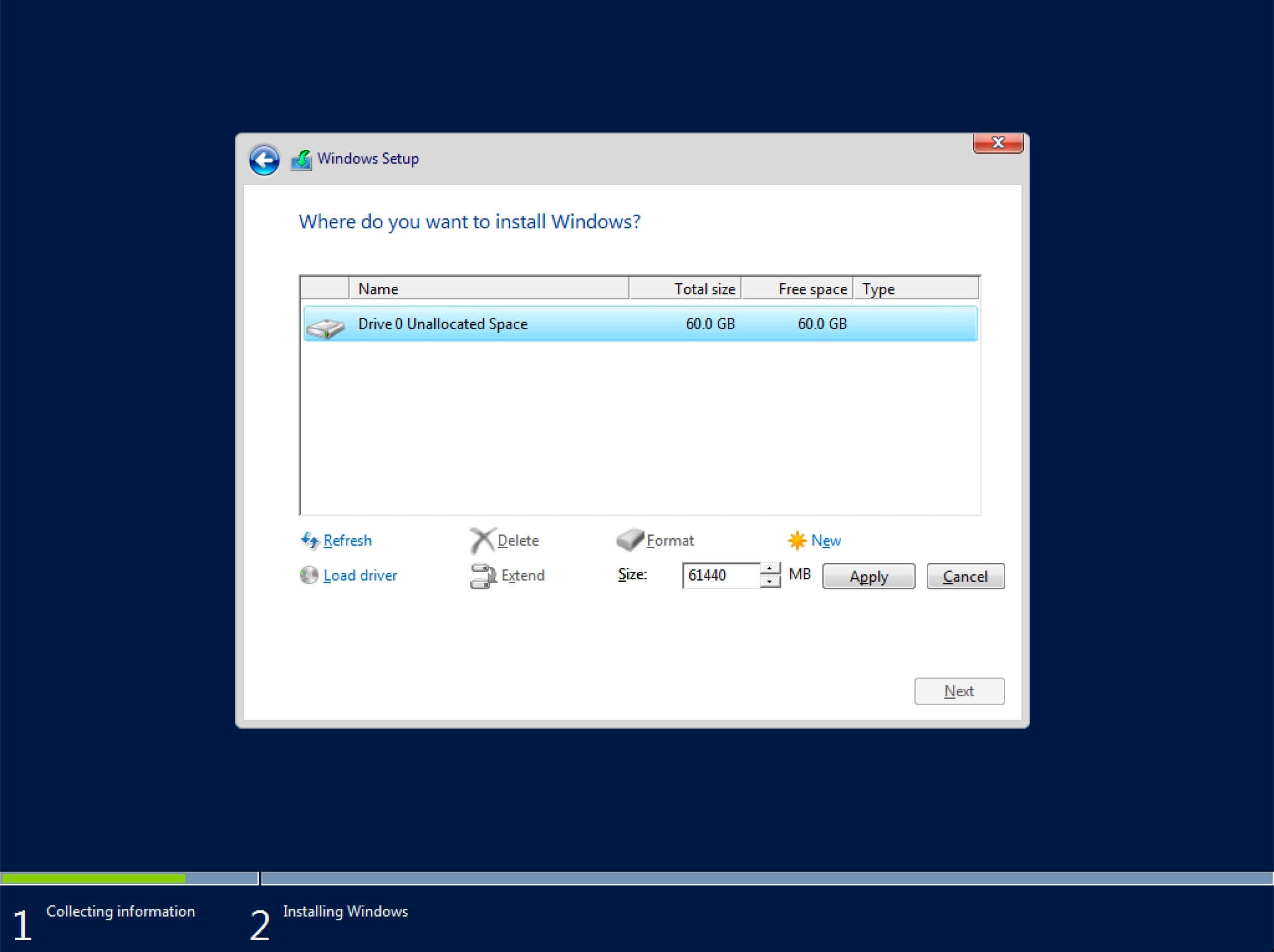

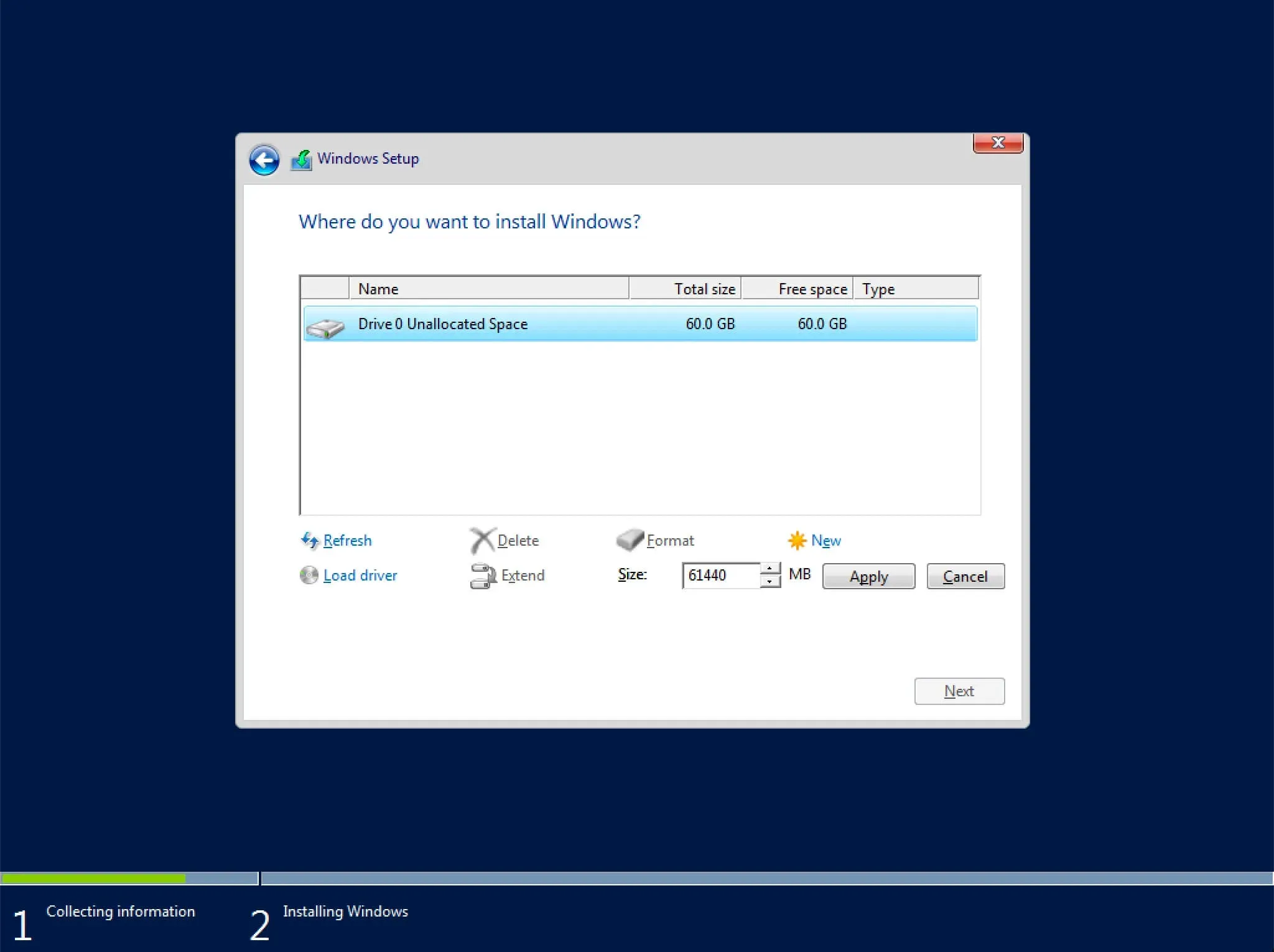

In this case, all free disk space will be allocated for the system, so we leave the value in the “Size” section by default.

Click on the “Apply” button.

Install Windows Server 2016

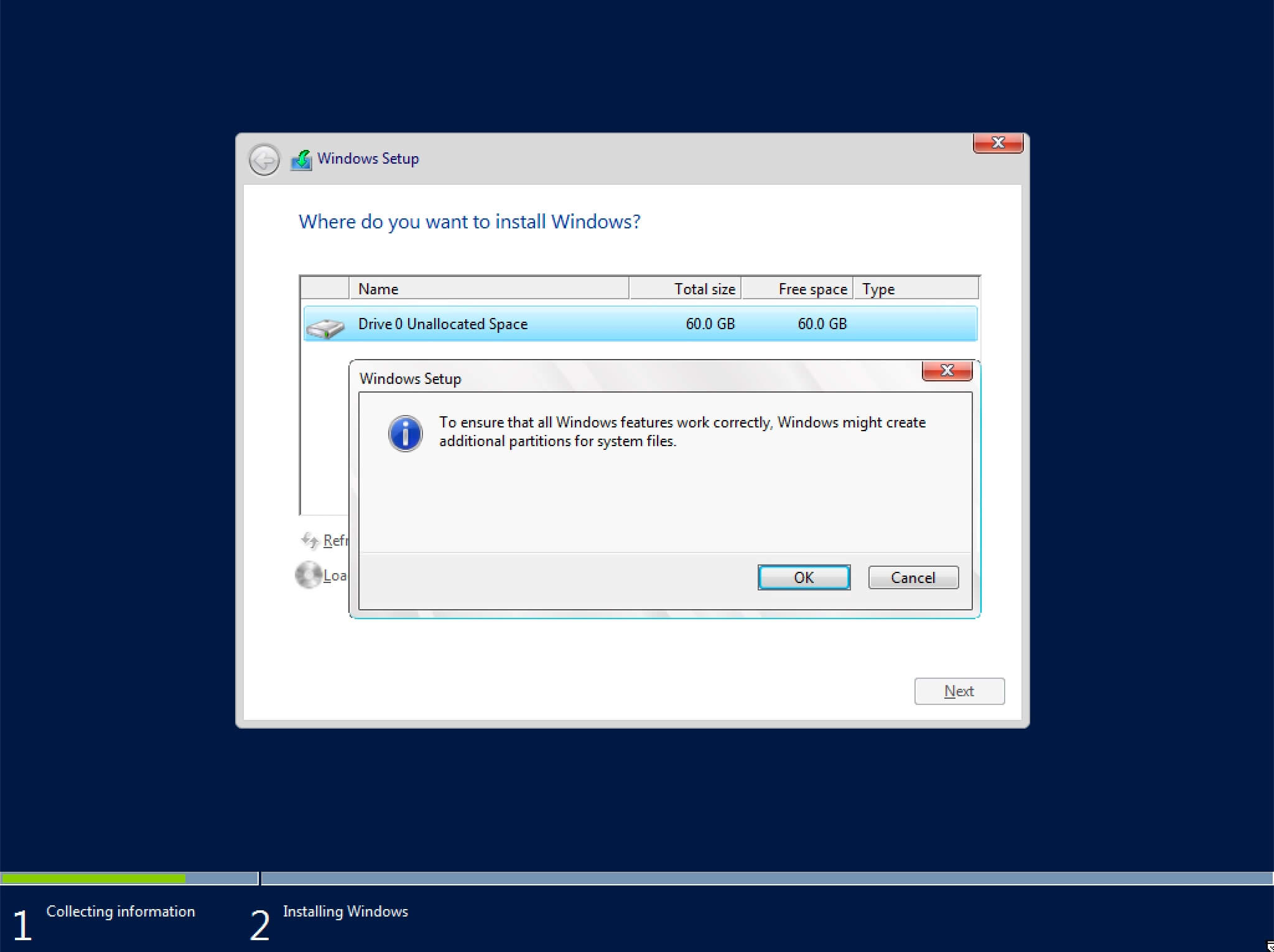

The operating system notifies that it may need to create additional partitions on the disk to store system files.

Click on the “OK” button.

Install Windows Server 2016

Thus, all free disk space was allocated for the operating system, but at the same time, the system reserved a small partition for itself.

Now you need to select the partition on which you intend to install the operating system and click on the “Next” button.

Install Windows Server 2016

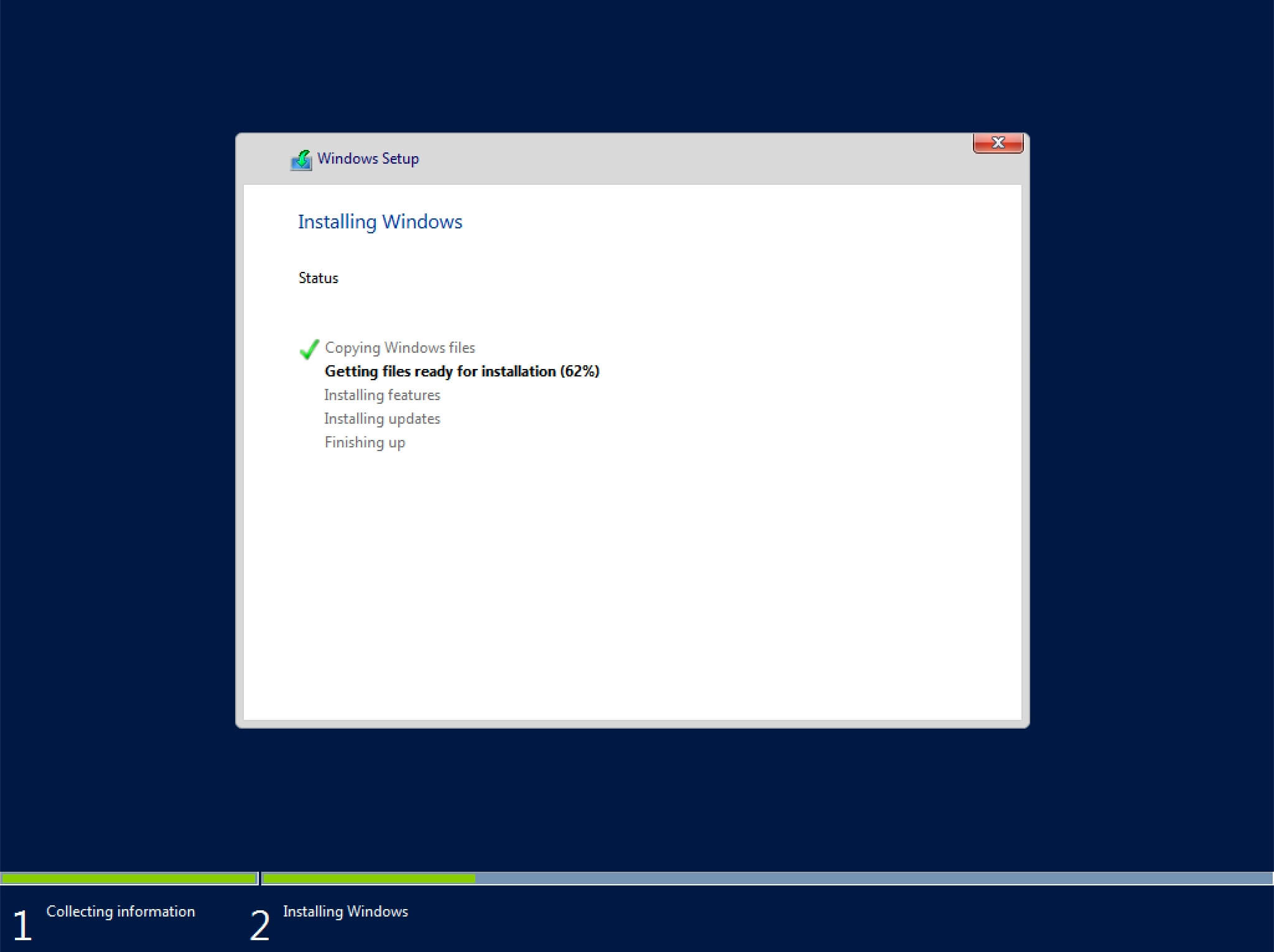

The process of installing the operating system has begun.

Install Windows Server 2016

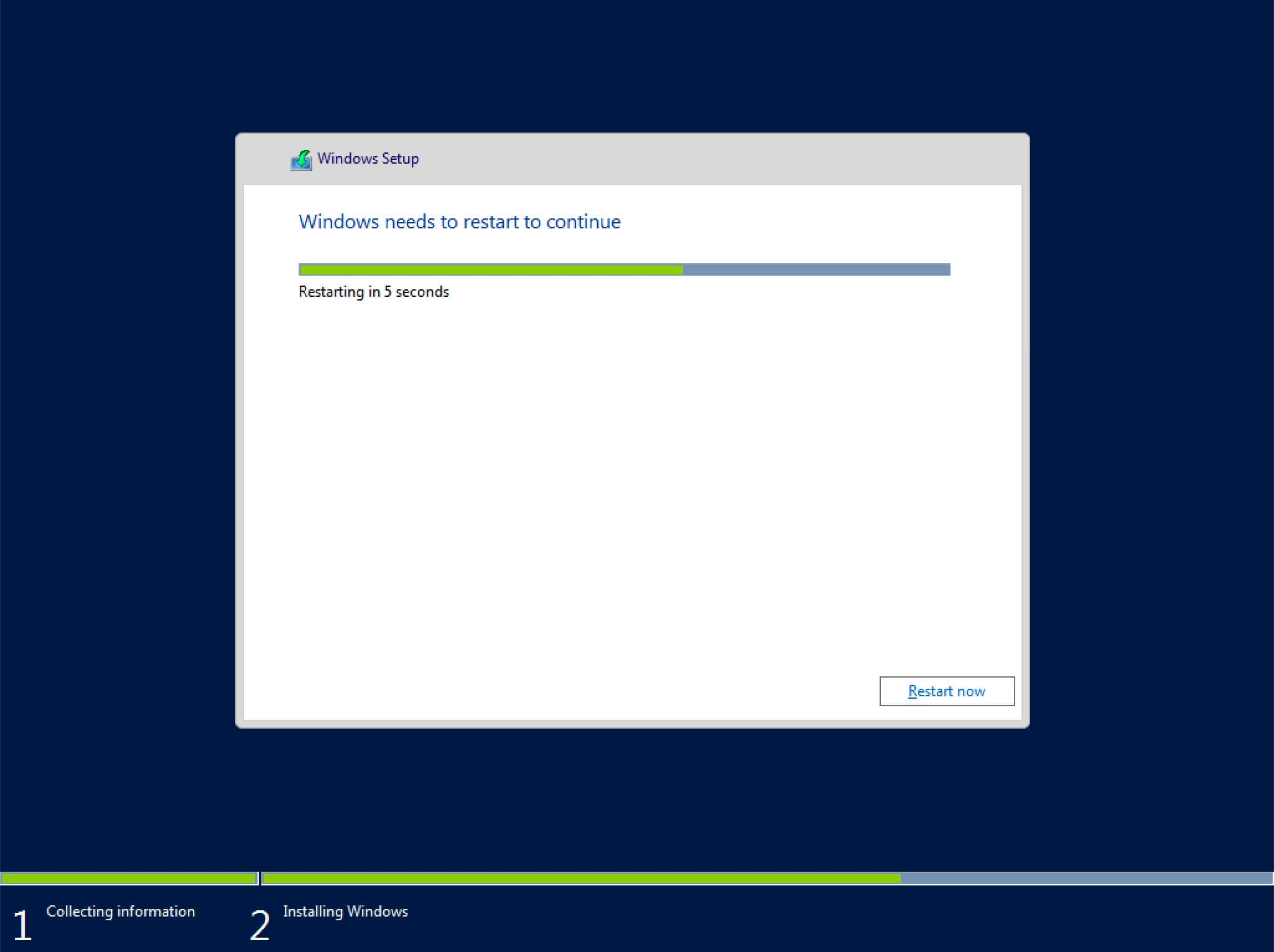

The computer will automatically restart.

Install Windows Server 2016

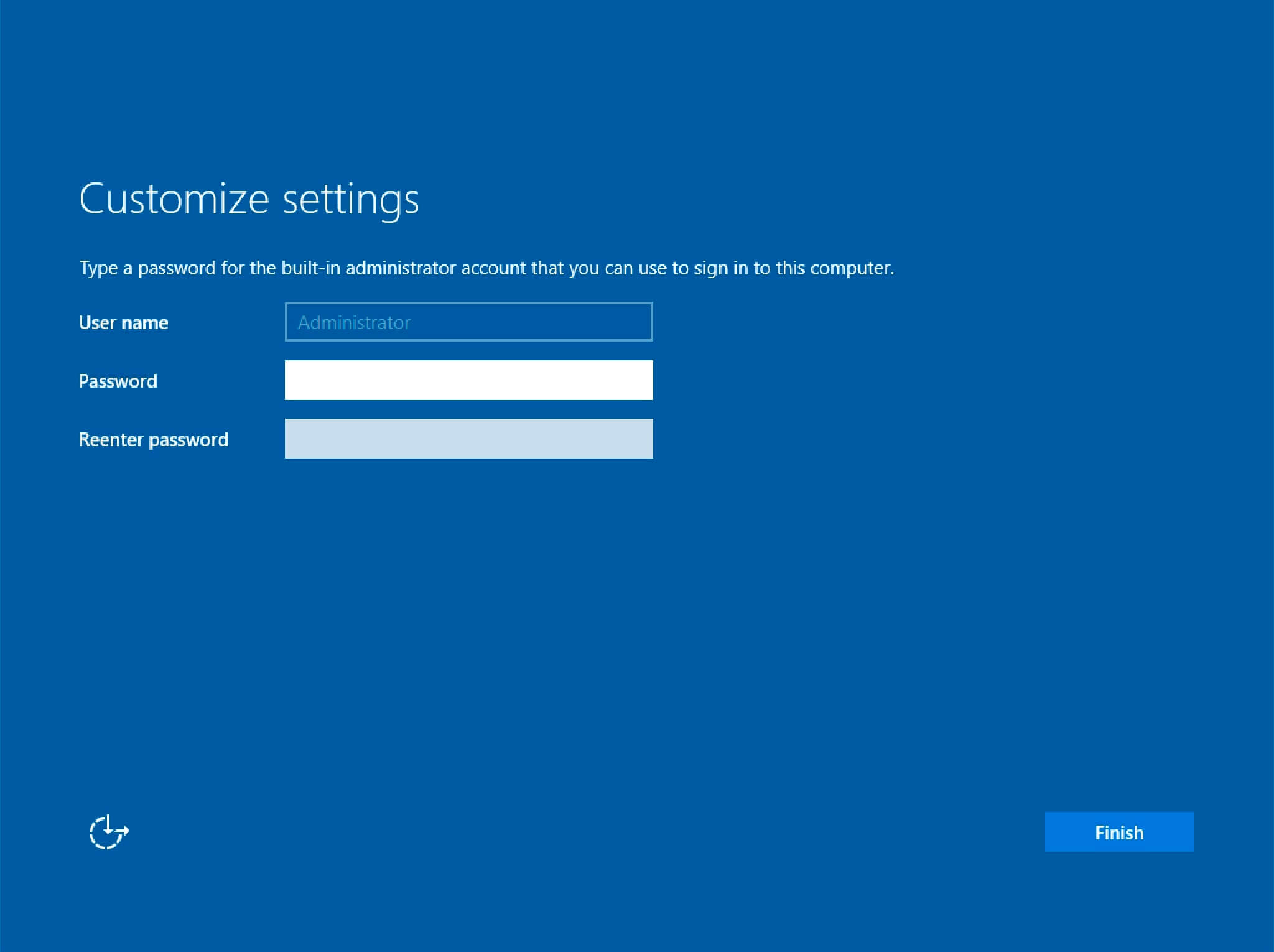

Now you need to provide a strong password for the “Administrator” account.

Click on the “Finish” button.

Install Windows Server 2016

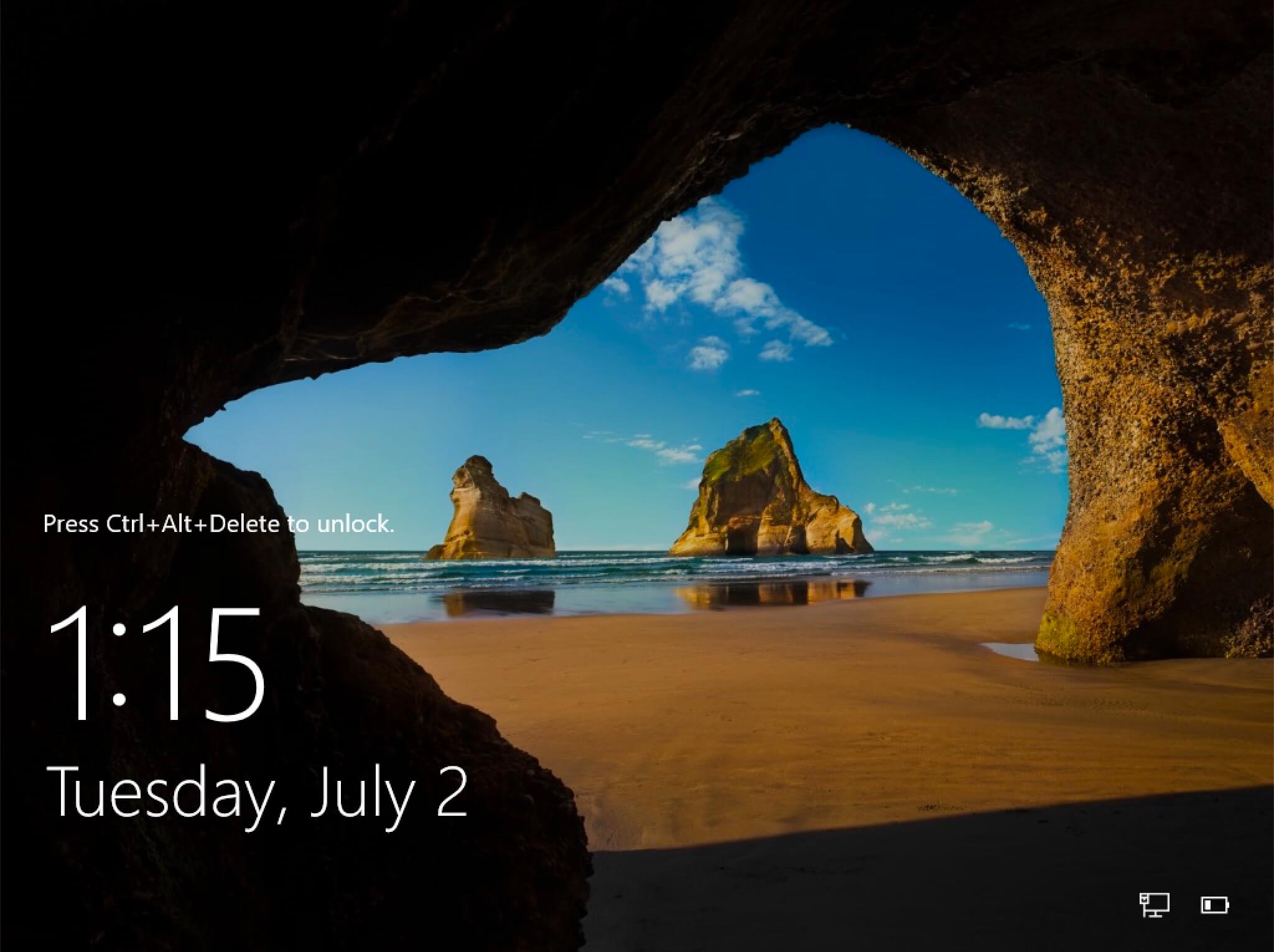

After completing the settings, you will be greeted by the Windows Server 2016 lock screen.

Press “Ctrl + Alt + Delete”.

Install Windows Server 2016

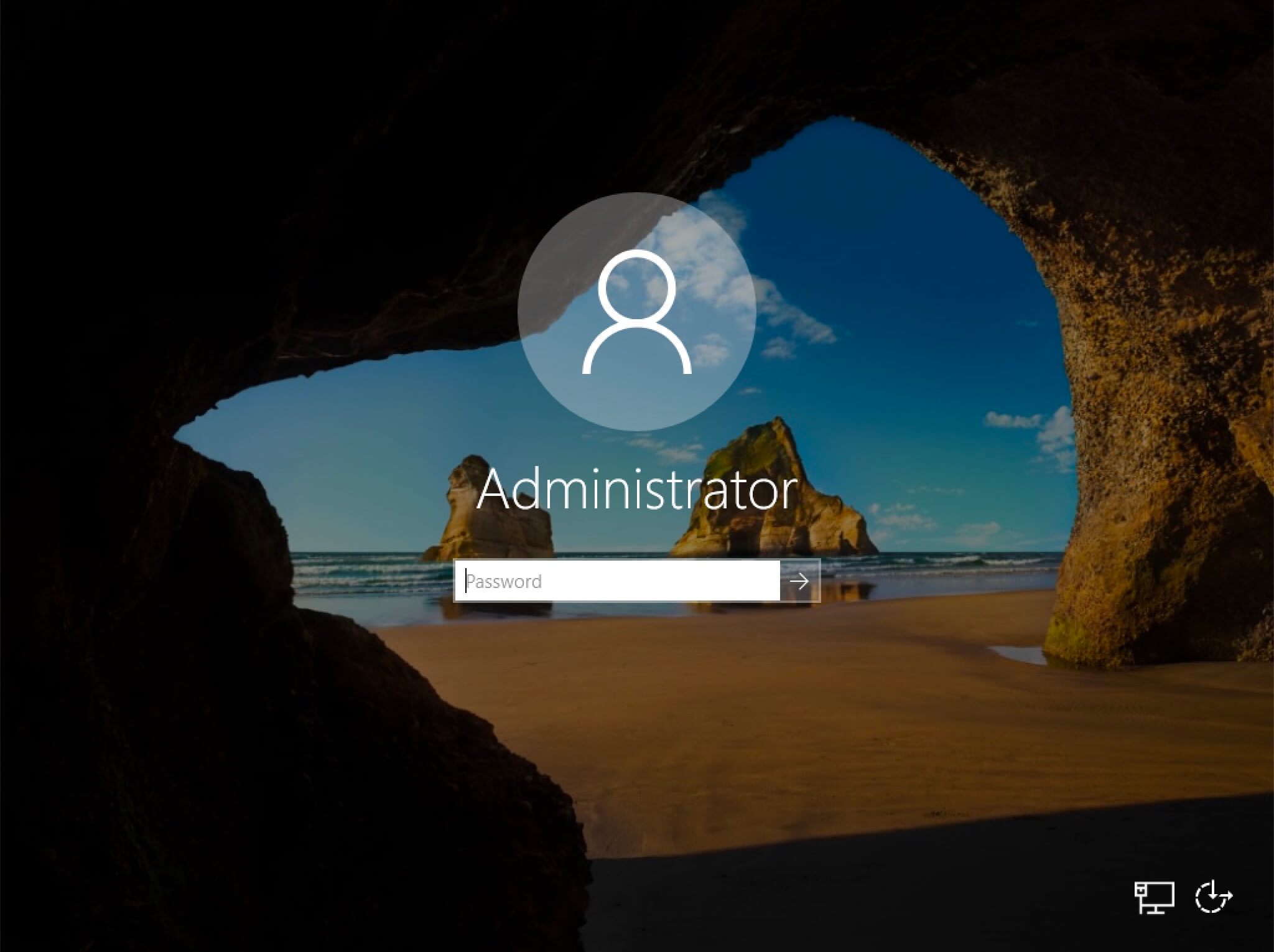

Next, you need to log into the system under the “Administrator” account.

Install Windows Server 2016

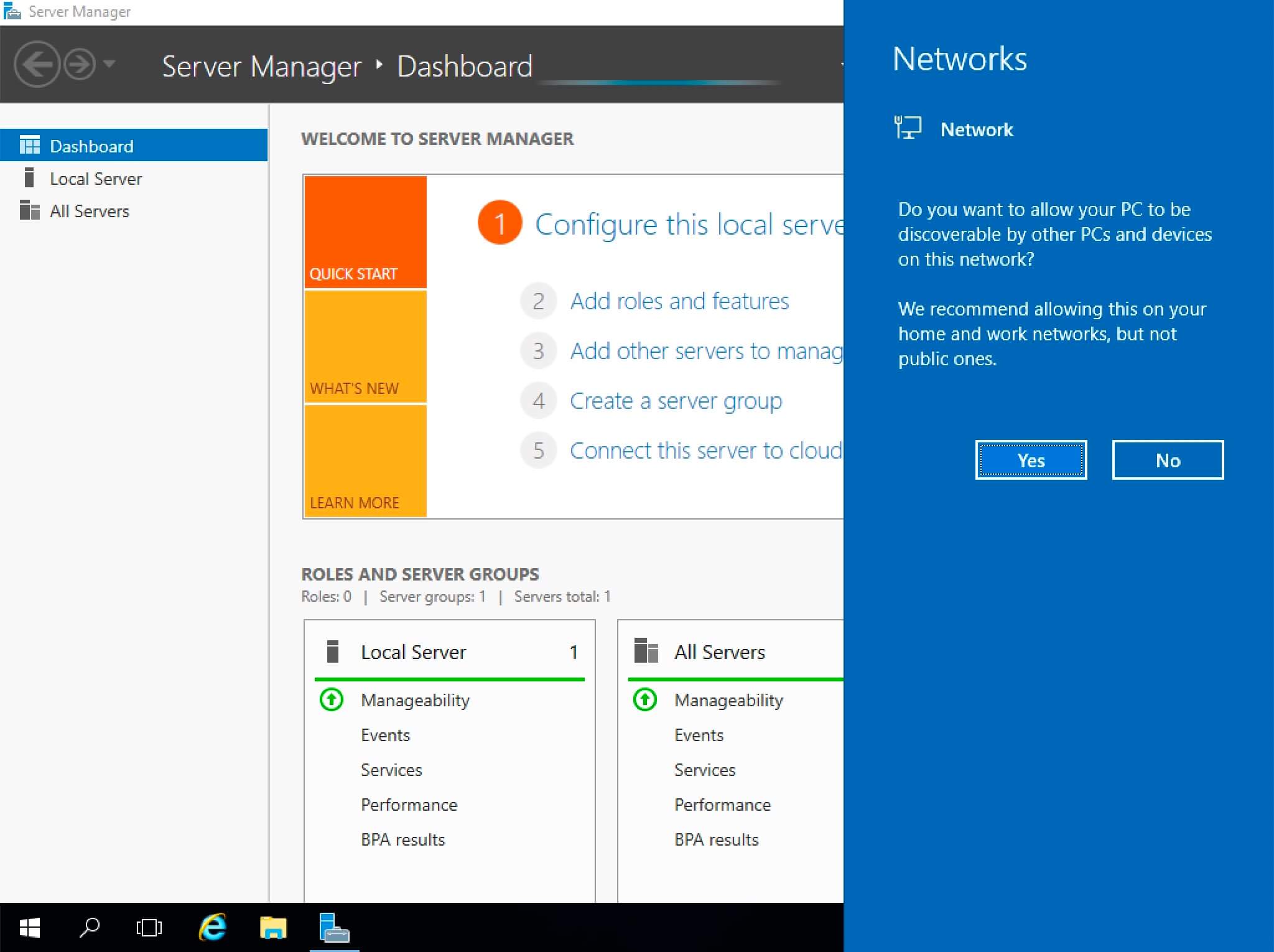

Next, you will be able to turn on network discovery so that the server is visible to other computers on the network.

Please note that network discovery is not recommended to be enabled on public networks.

Click on the “Yes” button.

Install Windows Server 2016

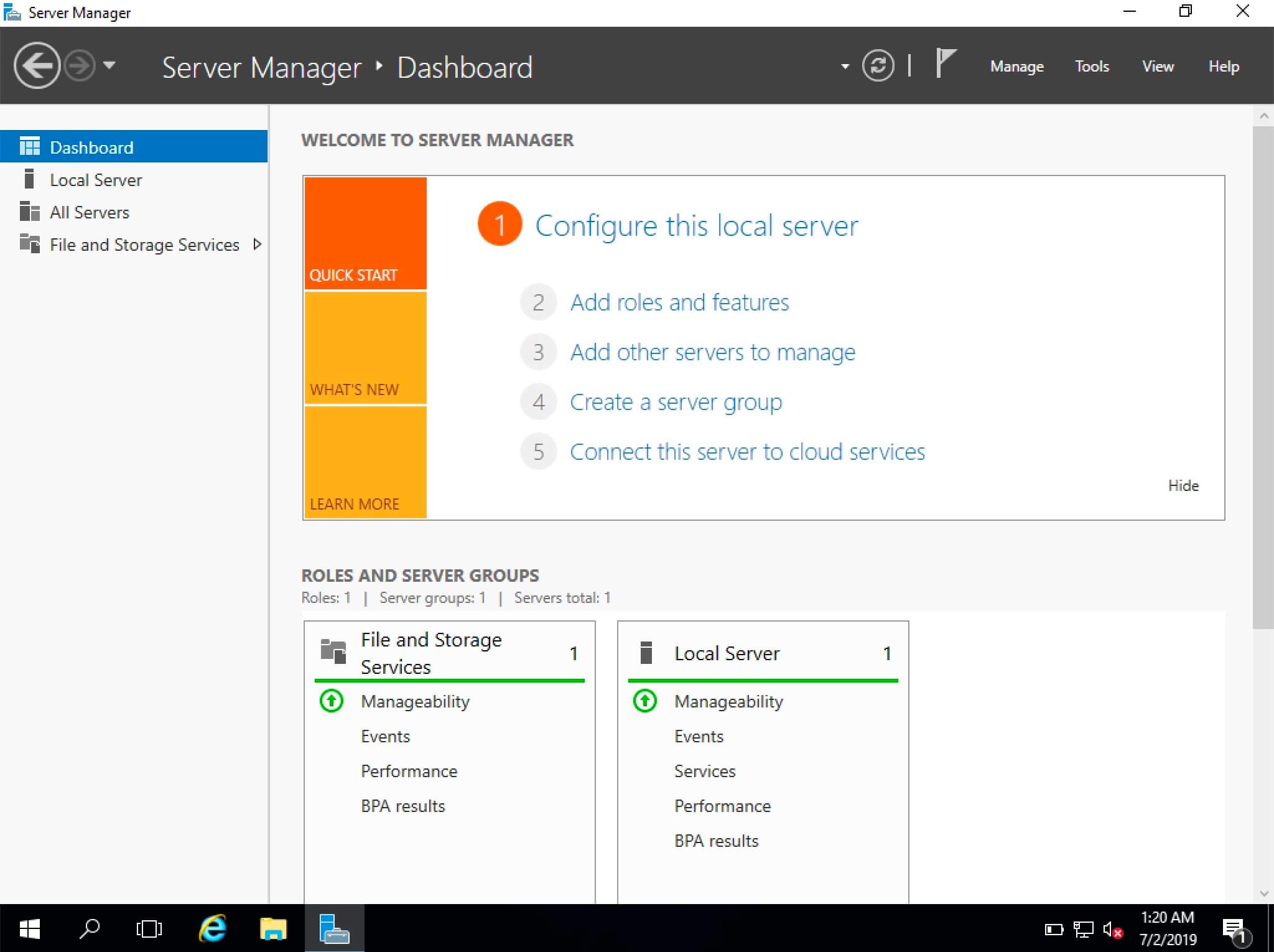

Windows Server 2016 installation is complete.

Install Windows Server 2016
